Pioneer 4000 Series Interchange Quick Coupling
Ningbo Hi-Tech Smart Machinery Co., Ltd.- Material：["Carbon Steel","Carbon Steel"]
- Temperature Range (Std Seals)：-20°c to +80°c
- Size：1,4",3,8",1,2",3,4",1"
- Materials：Carbon Steel
- Transport Package：PP Pag+Box+Carton
- Trademark：SMT
Base Info
- Model NO.：KPC-PF
- Origin：China
- Production Capacity：1000000
Description
Basic Info.
Model NO. KPC-PF Origin China Production Capacity 1000000Product Description
Features1. Heavy duty treated poppet valves are standard with rugged, specially-designed seals made of nitrlie for long leak-free performance in the toughest applications.
2. High-strength steel valves guides designed for high flow rates and made extra tough for agricultural and snow plow serive.
3. Dependable hardened chrome alloy steel locking balls. Heat treated plugs and sleeves.
Applications
KPC Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.
| Body size (in) |
| |||||
| Rated Pressure (Bar) |
| |||||
| Rated flow (GPM) |
| |||||
| Temperature Range (Std seals): | -20°C to +80°C |

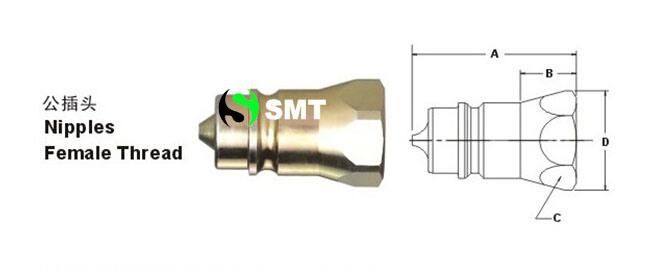

| Part No. | Thread Size BSPP | A Overall Length (mm.) | B Exposed Length (mm.) | C Hex Size (mm.) | D Largest Diameter (mm.) | Part No. | Thread Size NPT | A Overall Length (in.) | B Exposed Length (in.) | C Hex Size (in.) | D Largest Diameter (in.) |
| KPC-02PF | G1/4 | 33.0 | 16.0 | 19.0 | 22.0 | KPC-N02PF | NPT1/4 | 1.31 | 0.63 | 0.75 | 0.87 |
| KPC-03PF | G3/8 | 41.0 | 20.0 | 24.0 | 27.0 | KPC-N03PF | NPT3/8 | 1.60 | 0.80 | 0.94 | 1.08 |
| KPC-04PF | G1/2 | 50.0 | 15.0 | 27.0 | 31.0 | KPC-N04PF | NPT1/2 | 1.95 | 0.59 | 1.06 | 1.23 |
| KPC-06PF | G3/4 | 46.0 | 31.0 | 33.0 | 39.0 | KPC-N06PF | NPT3/4 | 1.81 | 1.23 | 1.31 | 1.52 |
| KPC-08PF | G1 | 71.0 | 38.0 | 41.0 | 48.0 | KPC-N08PF | NPT1 | 2.79 | 1.49 | 1.63 | 1.88 |
