• Model NO.：KZB-SF
• Production Capacity：10000000

Basic Info.

Model NO. KZB-SF Production Capacity 10000000

Product Description

Features

1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. KZE Series couplings interchange with couplings meeting ISO 7241-1, Series B.

Applications
This Series brings to the industry a proven sesing for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.
.

Body size (in)	1/4 3/8 1/2 3/4 1
Rated Pressure (Bar)	350 300 300 250 200
Material:	Carbon steel
Standard seal material:	NBR (other material is available on request)
Temperature Range (Std seals):	-20°C to +80°C

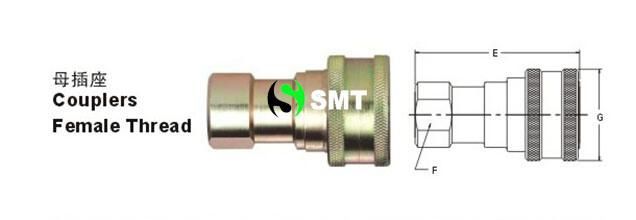

Part No.	Thread size BSPP	E Overall Length (mm.)	F Hex Size (mm.)	G Largest Diameter (mm.)	Part No.	Thread size NPT	E Overall Length (in.)	F Hex Size (in.)	G Largest Diameter (in.)
KZB-01SF	G1/8	48.0	17.0	24.0	KZB-N01SF	NPT1/8	1.9	0.68	0.96
KZB-02SF	G1/4	57.0	21.0	29.0	KZB-N02SF	NPT1/4	2.26	0.81	1.14
KZB-03SF	G3/8	63.0	22.0	36.0	KZB-N03SF	NPT3/8	2.49	0.88	1.4
KZB-04SF	G1/2	73.0	28.0	45.0	KZB-N04SF	NPT1/2	2.87	1.12	1.77
KZB-06SF	G3/4	90.0	33.0	54.0	KZB-N06SF	NPT3/4	3.56	1.31	2.14
KZB-08SF	G1	106.0	41.0	64.0	KZB-N08SF	NPT1	4.18	1.62	2.52
KZB-10SF	G1 1/4	115.0	54.0	79.0	KZB-N10SF	NPT1 1/4	4.53	2.13	3.11
KZB-12SF	G1 1/2	124.0	63.0	79.0	KZB-N12SF	NPT1 1/2	4.88	2.48	3.11
KZB-16SF	G2	132.0	77.0	109.0	KZB-N16SF	NPT2	5.2	3.03	4.29
