• Model NO.：KZA-SF
• Trademark：SMT
• Origin：China
• HS Code：39174000
• Production Capacity：1000000

Basic Info.

Model NO. KZA-SF Trademark SMT Origin China HS Code 39174000 Production Capacity 1000000

Product Description

Features

1. Double acting sleeve for one handed operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure.
4. Critical parts are induction hardened for durability
5. Dependable ball-locking mechanism holds the mating halves together.
6. Couplers and nipple are precision machined from solid bar stock.

Applications
KZA Series brings to the industry a proven design for use on construction equipment,
Forestry equipment agricultural machinery, and oil tools.

Body size (in)	3/8   1/2
Rated Pressure (Bar)	200   200
Material:	Carbon steel
Standard seal material:	NBR (other material is available on request)
Temperature Range (Std seals):	-20°C to +80°C

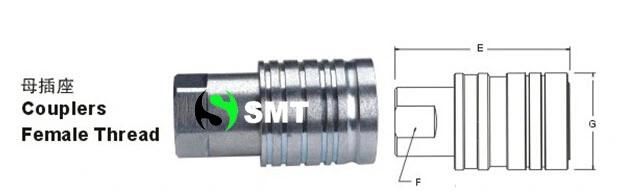

Part No.	Thread Size BSPP	E Overall Length (mm.)	F Hex Size (mm.)	G Largest Diameter (mm.)	Part No.	Thread Size NPT	E Overall Length (in.)	F Hex Size (in.)	G Largest Diameter (in.)
KZA-03SF	G3/8"	59.0	21.0	33.0	KZA-N03SF	NPT3/8"	2.31	0.81	1.31
KZA-04SF	G1/2"	68.0	24.0	38.0	KZA-N04SF	NPT1/2"	2.68	0.94	1.50

Company frofile

    Our company is specialized in manufactuing all kinds of valves,hydro-pneumatic components,alumium parts and plastic parts.Our main products are including pneumatic cylinder,solenoid valve,air filter,air regulator,air lubricator,pneumatic fitting,hydraulic fitting,tubes etc.as below;

           *ISO Standard Cylinder:DNC/SI(ISO6431&6432)
           *Standard Cylinder:SC/SU,
           *Mini Cylinder:MAL,MA,,MI,CJ2B,CDM2B
           *Compact Cylinder:SDA,CQ2
           *Cylinder:CU,TN,STM,MGP
           *Solenoid Valve:3v1,3v,4v,4M,3A,4A ,etc
           *Air Source Treatment Unit:A,HA,HNA,T,A/B,etc
           *pneumatic accessories:fitting,hand valve,muffler,tube,pressure switch

NINGBO SMART PNEUMATICS' sprit:

we will give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System."
