Kzess Series Hydraulic Quick Couplings (Stainless Steel)
Ningbo Hi-Tech Smart Machinery Co., Ltd.- Material：["Carbon Steel","Carbon Steel"]
- Standard Seal Material：NBR (Other Material Is Available on Request)
- Temperature Range (Std Seals)：-20°c to +80°c
- Materials：Stainless Steel
- Size：1,8"-2"
- Transport Package：PP Pag+Box+Carton
Base Info
- Model NO.：KZESS-PF
- Trademark：SMT
- Origin：China
- Production Capacity：10000000
Description
Basic Info.
Model NO. KZESS-PF Trademark SMT Origin China Production Capacity 10000000Product Description
Features1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. KZE Series couplings interchange with couplings meeting ISO 7241-1, Series A.
Applications
This Series brings to the industry a proven sesing for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.
| Body size (in) |
| |||||
| Rated Pressure (Bar) |
| |||||
| Material: | Stainless Steel | |||||
| Standard seal material: | NBR (other material is available on request) | |||||
| Temperature Range (Std seals): | -20°C to +80°C |

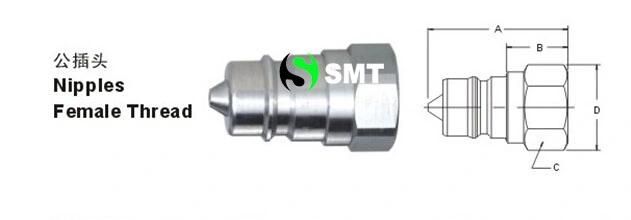

| Part No. | Thread size BSPP | A Overall Length (mm.) | B Exposed Length (mm.) | C Hex Size (mm.) | D Largest Diameter (mm.) | Part No. | Thread size NPT | A Overall Length (in.) | B Exposed Length (in.) | C Hex Size (in.) | D Largest Diameter (in.) |
| KZESS-01PF | G1/8 | 32.0 | 15.0 | 14.0 | 17.0 | KZESS-N01PF | NPT1/8 | 1.27 | 0.58 | 0.56 | 0.65 |
| KZESS-02PF | G1/4 | 32.0 | 15.0 | 19.0 | 22.0 | KZESS-N02PF | NPT1/4 | 1.27 | 0.58 | 0.75 | 0.87 |
| KZESS-03PF | G3/8 | 37.0 | 18.0 | 22.0 | 26.0 | KZESS-N03PF | NPT3/8 | 1.47 | 0.72 | 0.88 | 1.01 |
| KZESS-04PF | G1/2 | 46.0 | 20.0 | 27.0 | 31.0 | KZESS-N04PF | NPT1/2 | 1.82 | 0.78 | 1.06 | 1.23 |
| KZESS-06PF | G3/4 | 58.0 | 30.0 | 35.0 | 40.0 | KZESS-N06PF | NPT3/4 | 2.29 | 1.18 | 1.38 | 1.59 |
| KZESS-08PF | G1 | 66.0 | 34.0 | 41.0 | 48.0 | KZESS-N08PF | NPT1 | 2.58 | 1.34 | 1.62 | 1.88 |
| KZESS-10PF | G1 1/4 | 75.0 | 36.0 | 54.0 | 59.0 | KZESS-N10PF | NPT1 1/4 | 2.95 | 1.41 | 2.12 | 2.32 |
| KZESS-12PF | G1 1/2 | 86.0 | 38.0 | 60.0 | 68.0 | KZESS-N12PF | NPT1 1/2 | 3.38 | 1.49 | 2.36 | 2.67 |
| KZESS-16PF | G2 | 100.0 | 77.0 | 77.0 | 84.0 | KZESS-N16PF | NPT2 | 3.93 | 3.03 | 3.03 | 3.30 |
