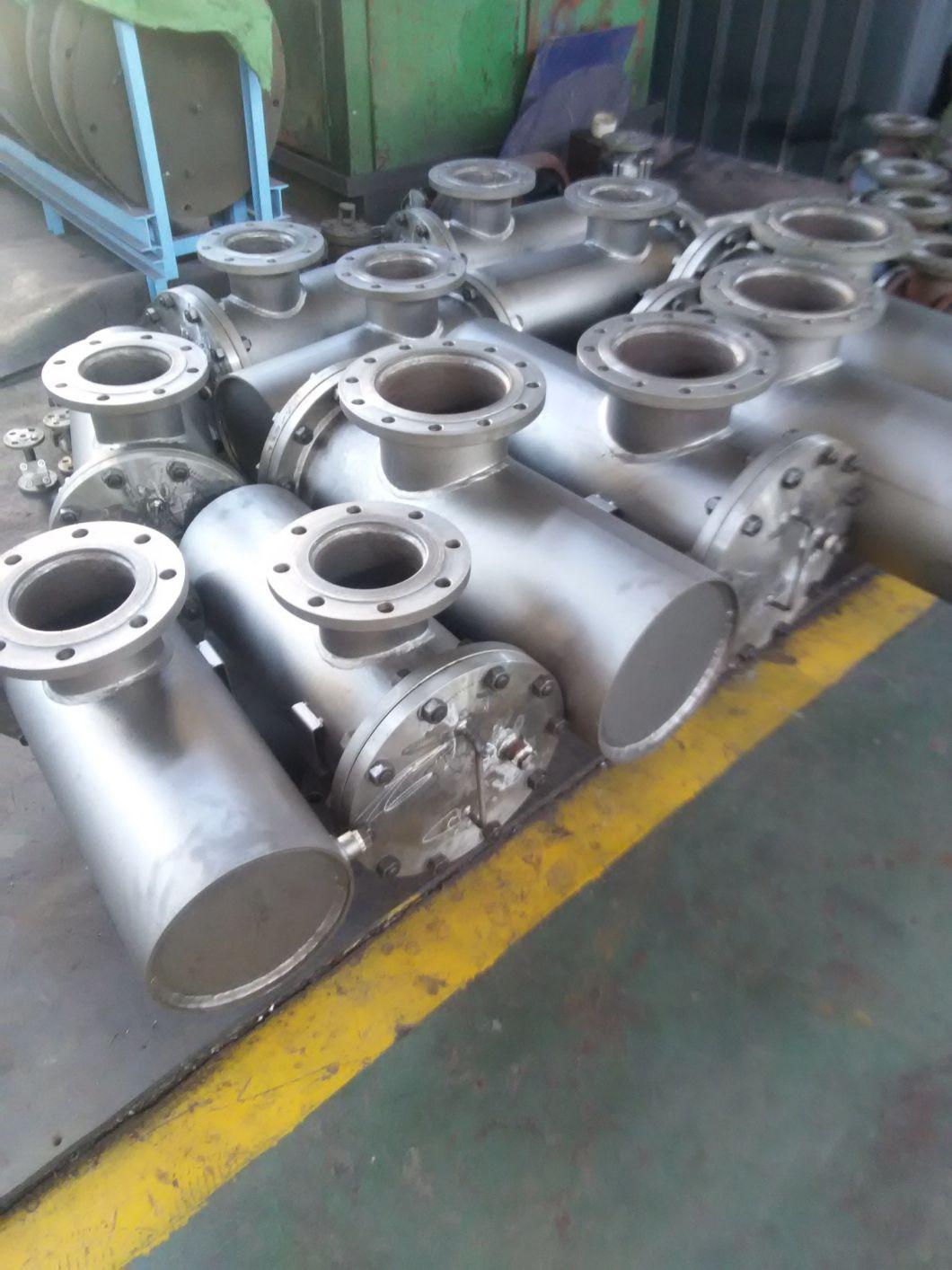

Mesh Strainer, Flanged Straight Through Filter, T- Type Pipeline Strainer
Hebei Xukang Meter Manufacturing Co., Ltd.- Standard：DIN, ANSI, GB, JIS, BSW
- Material：Ss, Cast Steel, Iron.
- Connection：Flange
- Surface Treatment：as You Wish
- Head Type：as You Wish
- Sizes：1,2 - 20"
Base Info
- Model NO.：T- Type
- Mesh：10-300
- Ends：Flanged
- Suitable Temperature：0 ~ 425deg. C
- Body Material：Wcb, Ss
- Transport Package：Wooden Case or Carton
- Specification：CE, ROHS, SGS, GMP
- Trademark：Tianjin U-ideal Instrument
- Origin：Tianjin, China
- HS Code：8481804090
- Production Capacity：50000PCS,Year
Description
nameDN(mm) PN1.0-4.0 PN5.0-10.0 B (in) L2(mIII) L1(mm) L(mm) L2(mm) L1(mm) L(mm Conventional Type 50 250 149 281 268 158 298 R1/2 65 292 170 325 304 179 337 R1/2 80 312 181.5 352 330 195.5 370 R1/2 100 362 267 412 382 225 432 R3/4 150 464 259.5 539 482 280 557 R3/4 200 560 311 660 578 332.5 678 R3/4 250 636 350.5 761 666 383 791 R3/4 300 736 400 886 768 437 918 R3/4 350 812 441 955 844 476 990 R3/4 400 864 469 1025 902 509 1060 R3/4 DN(mm) PN1.0-4.0 PN5.0-10.0 B (in) L2(mm) L1(mm) L(mm) L2(mm) L1(mm) L(mm) Extended Type 50 250 235 450 268 235 450 R1/2 65 292 265 510 304 265 510 R1/2 80 312 300 570 330 300 570 R1/2 100 362 355 700 382 355 700 R3/4 150 464 485 900 482 445 900 R3/4 200 560 510 1030 578 510 1030 R3/4 250 636 590 1190 666 590 1190 R3/4 300 736 675 1390 768 675 1390 R3/4 350 812 740 1550 844 740 1550 R3/4 400 864 795 1680 902 795 1680 R3/4
