• Model NO.：Y Type Jacketed Strainer
• Medium：Water Gas Oil
• Power：Solenoid
• Connection.：RF Flange
• Pressure：Medium Pressure
• Transport Package：Wooden Case or Carton
• Specification：CE, ROHS, SGS, GMP
• Trademark：Tianjin U-ideal Instrument
• Origin：Tianjin, China
• HS Code：8421219990
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Y Type Jacketed Strainer Medium Water Gas Oil Power Solenoid Connection. RF Flange Pressure Medium Pressure Transport Package Wooden Case or Carton Specification CE, ROHS, SGS, GMP Trademark Tianjin U-ideal Instrument Origin Tianjin, China HS Code 8421219990 Production Capacity 50000PCS/Year

Product Description

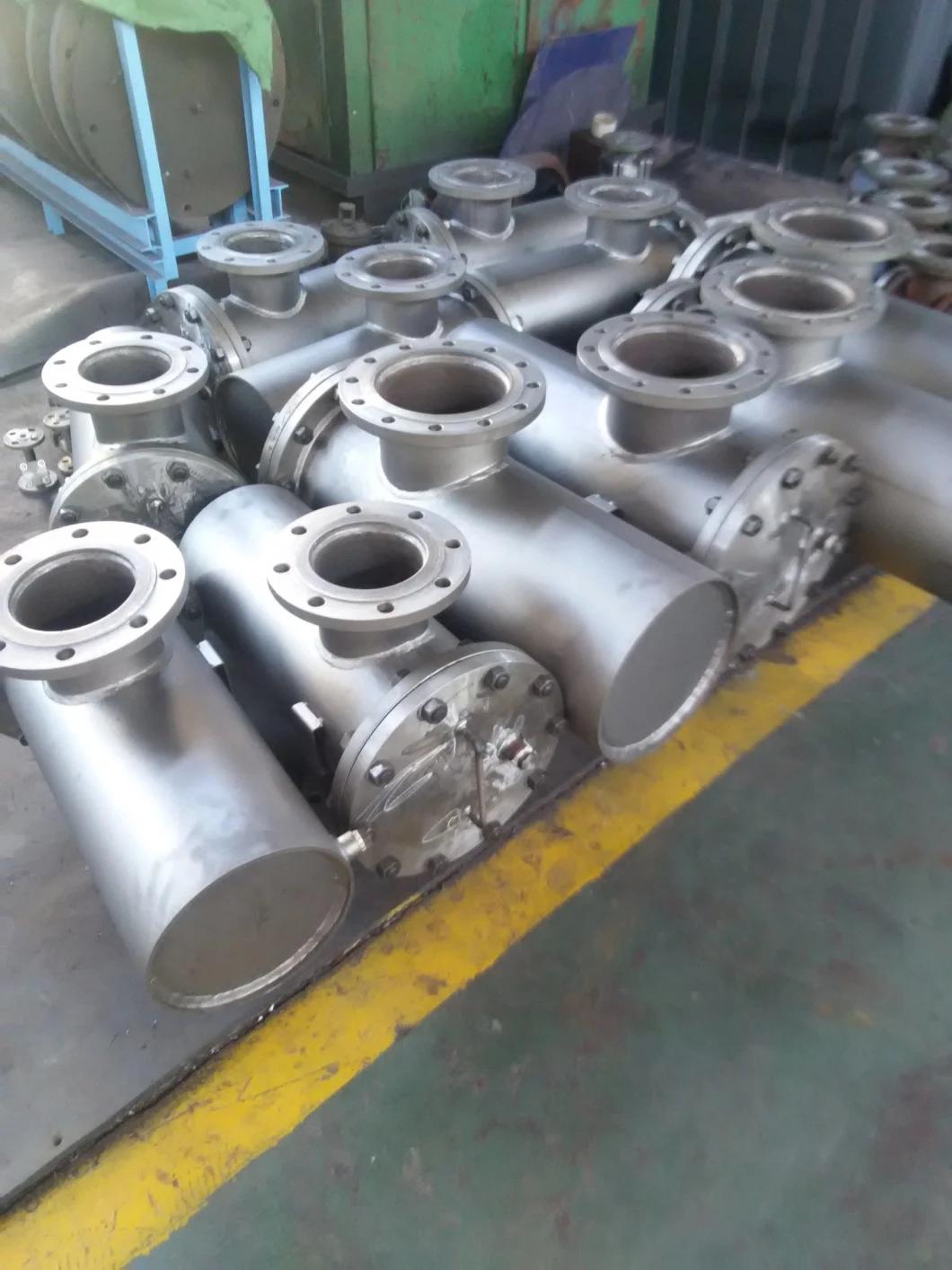

Jacketed Y Type Strainer is the best choice if users want to remove the pipeline debris and also want to preserve the system heat. So as to save energy. Jacketed Y Type Strainer is to weld a jacket to the outside of normal Y Type Strainer, in which insulation medium is inserted to preserve the system heat. So as to save energy.
U-ideal made Y Type strainer has low pressure drop due to higher flow area through screen. Y Strainer used for the removal of foreign bodies in pipe line and use line trouble free service and freedom costly repairs or replacement for large area straining perforated screen lined with wire mesh can be used. The strainer improves the clearance in the medium, and prolongs the life of valves; Protect expensive pumps, meters and other equipments. It is suitable for water, Air, Gas, petroleum, steam and other fluids.
Advanced dynamic flow path and large filtration area elements ensure low pressure drops and reduced maintenance periods.
U-ideal instrument strainers are available in wide compatibility of body material, pressure ranges and screen sizes for various suitable application. Y Strainer has the advantage of being able to be installed in either a horizontal or vertical position. However, in both cases, the screening element must be on the downside of the strainer body so that entrapped solids particles can be properly collected.
Tianjin U-ideal instrument also can offer P. T. F. E. Lined, Rubber Lined, Jacketed & Fabricated Y strainers on request.
A blow down plug on the drain port will allow clean-out without removal of the screen, and without interrupting the process flow, providing on request.


The Standard that Jacketed Y Type Strainer applied:

Design specifications: HG / T 21637
Structure length: GB / T 12221
Flange: JB / T 79
Test and inspection: JB / T 9092
Product ID: GB / T 12220
Delivery specification: JB / T 7928

Jacketed Y-type strainer main external connection dimensions:



Y type filter is the medium of pipeline system is indispensable to a filtering device, Y type strainer is usually installed in a reducing valve, relief valve and the inlet water valve or other equipment, used to remove the impurity in the medium, in order to protect the valves and equipment normal use. Y type filter has the advanced structure, small resistance and easy drainage, etc. Y type filter suitable medium for water, oil and gas. Generally water network are 18 ~ 30 mu, ventilation network are 10 ~ 100 mesh, oil network 100 ~ 480 mesh.

Technical parameters

DN	All clip	L	Half-clip	H
25/50	220		250	100
32/65	250		300	150
40/65	250		300	150
50/80	290		320	175
65/100	390		420	270
80/125	430		500	350
100/150	500		600	420
125/200	550		650	420
150/200	550		650	420
200/250	600		750	460
