• Model NO.：70kn-500kn
• Trademark：CIE
• Origin：Qingdao
• HS Code：73269090
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. 70kn-500kn Trademark CIE Origin Qingdao HS Code 73269090 Production Capacity 100000PCS/Month

Product Description

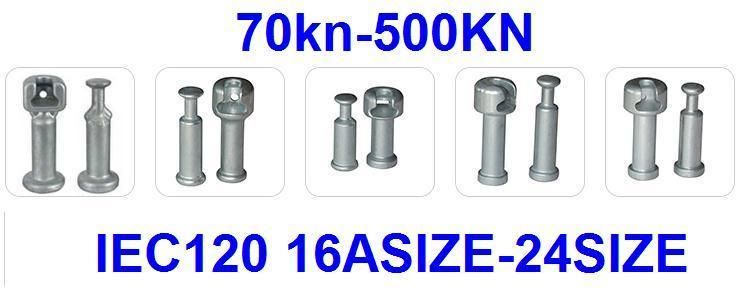

Name: Composite insulator fitting/ Polymer insulator fitting/Socket ball

1. Material: Forged-steel.
2. Specified mechanical Load: 40KN- 700KN.
3. Finish: Hot-DIP-Galvanization
4. Normally we offer them with W-clip or R-pin togerther.
5. Rated voltage: 160kv-550kv
5. We Not only can produce according to clients' drawings or samples, also we can design as per clients' requirements.

Hope you will interest in our fittings, if any needs pls contact with us freely. We will offer you our most competitive price.






NO.	SML	size	D1	D2	D3	L1	L2	L3	L4	L5	L6
1	45KN	11	44	28	15.4	80	79	52	29	89	88
2	70KN	16	58	28	16	96	92	60	36	105	105
3	120KN	16	58	32	18	116	112	83	36	125	125
4	160KN	20	70	36	24	158	150	110	42.5	170	170
5	210KN	20	75	36	24	179	170	133	42.5	190	190
6	300KN	24	85	44	30	193	189	145	48.5	208	208
7	400KN	28	95	48	34	240	207	160	51	228	228
8	530KN	32	113	60	40	270	250	196	64	307	278
9	630KN	32	116	64	44	270	256	202	64	307	284
