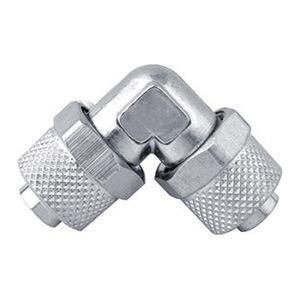

• Model NO.：RPL 6,4-02
• Transport Package：Plastic Bag
• Specification：ROHS, REACH, CE
• Trademark：XHnotion
• Origin：China
• HS Code：7412209000
• Production Capacity：10000 PCS Per Day

Basic Info.

Model NO. RPL 6/4-02 Transport Package Plastic Bag Specification ROHS, REACH, CE Trademark XHnotion Origin China HS Code 7412209000 Production Capacity 10000 PCS Per Day

Product Description

FEATURES

1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.


MATERIAL CONSTRUCTION

Metal Body Nickel Plated Brass or Brass
Release Button Nickel Plated Brass or Brass
Thread Sealant Teflon
O-Ring NBR or Viton


SPECIFICATIONS

Operating Pressure  -0.8~15 bar.
Operating Temperature -10~60ºC.
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world

PRODUCT ITEMS

OD/ID (mm) - Thread(R)	OD/ID (mm) - Thread(G)
RPL 5/3-M5	RPL 5/3-G01
RPL 5/3-M6	RPL 6/4-G01
RPL 5/3-01	RPL 6/4-G02
RPL 6/4-M5	RPL 6/4-G03
RPL 6/4-M6	RPL 8/6-G01
RPL 6/4-01	RPL 8/6-G02
RPL 6/4-02	RPL 8/6-G03
RPL 6/4-03	RPL 10/8-G01
RPL 8/6-01	RPL 10/8-G02
RPL 8/6-02	RPL 10/8-G03
RPL 8/6-03	RPL 10/8-G04
RPL 10/8-01	RPL 12/10-G03
RPL 10/8-02	RPL 12/10-G04
RPL 10/8-03
RPL 10/8-04
RPL 12/10-03
RPL 12/10-04

 FITTINGS ADVANTAGE

1)  Raw Material is HPB 59-1, conforms to country standard.

2) High precision automatic lathe to make the claws not hurt tube surface.

3)  5% tested by water at 10 bar, 100% tested by air and appearance test.

4) Easy to push in and put out on the basis of working pressure assured

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.
