• Model NO.：GFS
• Body Material：SS316;SS316L;SS316L Var
• Female Thread：Silver-Plated

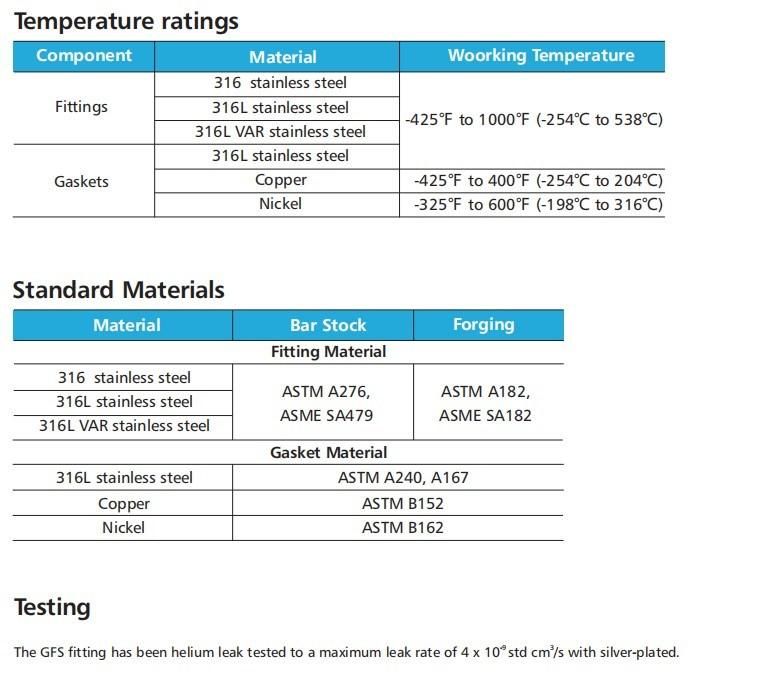

• Working Temperature：-254ºC to 538ºC
• Size：1,16 in. to 1 in.
• Seal：Metal to Metal
• Roughness Average：10 μin.(0.25μm) Ra
• Certificate：CE; ABS; ISO9001; ISO 14001; ISO 45001.
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：5000 PCS Per Month

Basic Info.

Model NO. GFS Body Material SS316;SS316L;SS316L Var Female Thread Silver-Plated Working Temperature -254ºC to 538ºC Size 1/16 in. to 1 in. Seal Metal to Metal Roughness Average 10 μin.(0.25μm) Ra Certificate CE; ABS; ISO9001; ISO 14001; ISO 45001. Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 5000 PCS Per Month

Product Description

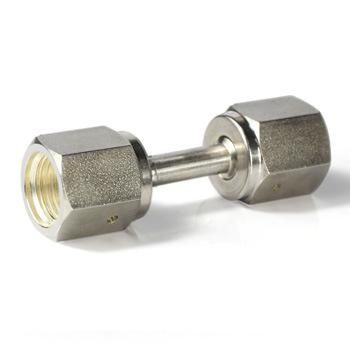

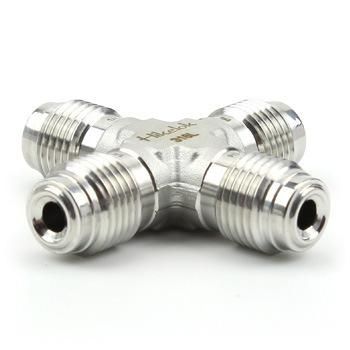

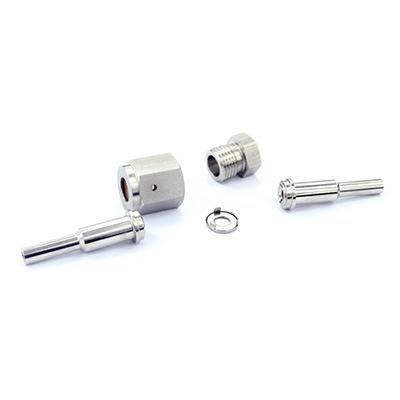

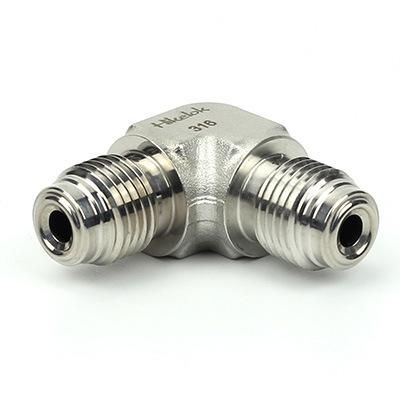

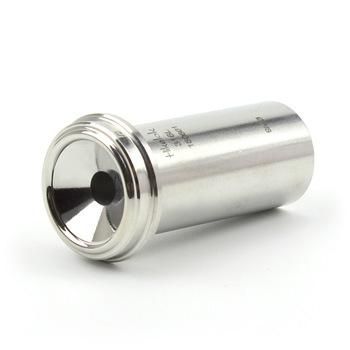

Swagelok Type VCR Fitting Stainless Steel Metal Gasket Face Seal Fittings



Features:
 Female threads are silver plated to prevent galling
 Two test port for easy leak testing
 Non-rotational female nut to prevent transmission of torque
 Smooth transition into the Internal Diameter minimizes entrapment areas
 Sizes from 1/16 to 1 in.

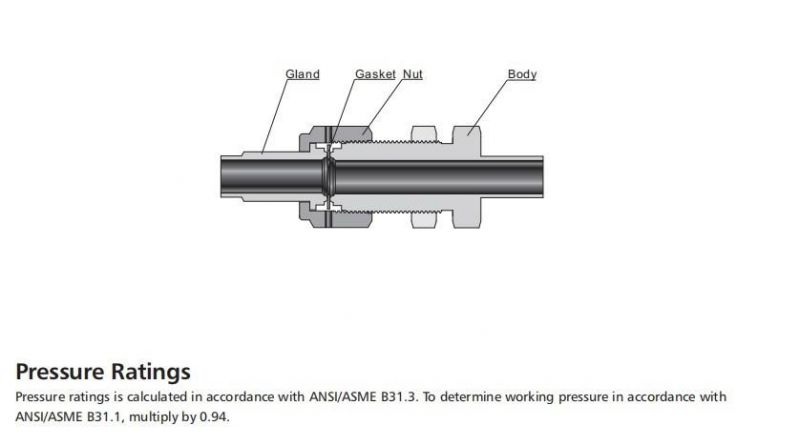

 Metal-to-metal seal provides perfect leak-tight service from critical vacuum to high pressure
 Standard surface finish on glands and bodies is a roughness average of 10μin. (0.25μm) Ra
 316, 316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available



 Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
