• Model NO.：MF1
• Nominal Hose Size：1,4 to 1 in.
• End Connection Size：1,4 to 1 in. 6 mm to 25mm
• End Connection Type：Tube Fittings;NPT;BSPP; BSPT; ISO; Welded
• Overall Length：.....in , ....mm
• End Connection Material：316 S.S., 304s.S.
• Braid：304s.S.
• Core：316L
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：8307100000
• Production Capacity：5000 PCS Per Month

Basic Info.

Model NO. MF1 Nominal Hose Size 1/4 to 1 in. End Connection Size 1/4 to 1 in. 6 mm to 25mm End Connection Type Tube Fittings;NPT;BSPP; BSPT; ISO; Welded Overall Length .....in , ....mm End Connection Material 316 S.S., 304s.S. Braid 304s.S. Core 316L Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 8307100000 Production Capacity 5000 PCS Per Month

Product Description

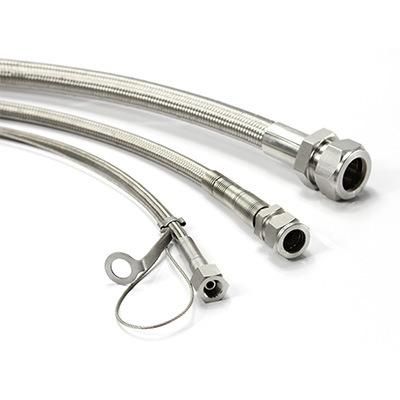

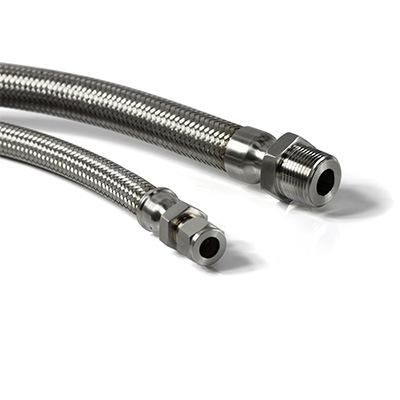

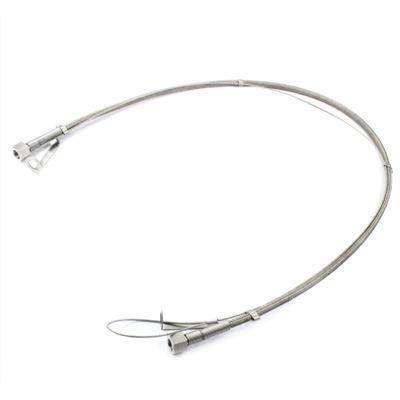

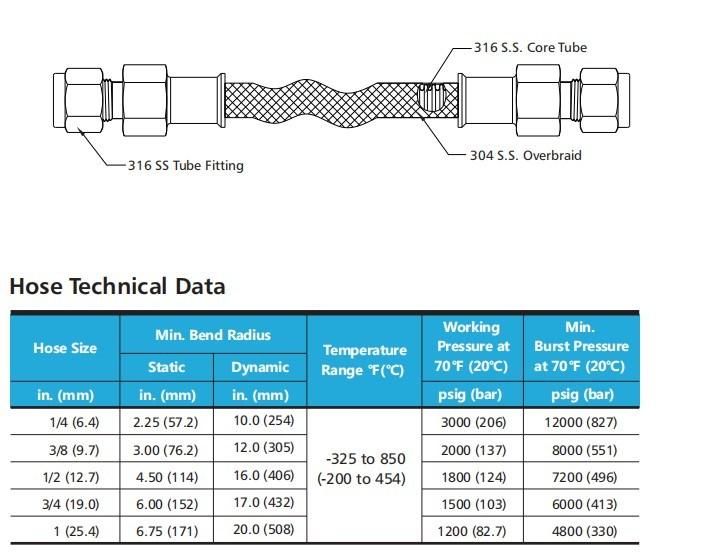

Stainless Steel 304 Braided Hose 316L Core Tube High Pressure Metal Flexible Hose



Features:
 Maximum working pressure up to 3000 psig (207 bar)
 Working temperature from -325ºF to 850ºF (-200ºC to 454ºC)
 316L core tube and 304 stainless steel overbraid
 Hose sizes from 1/4 to 1 in.

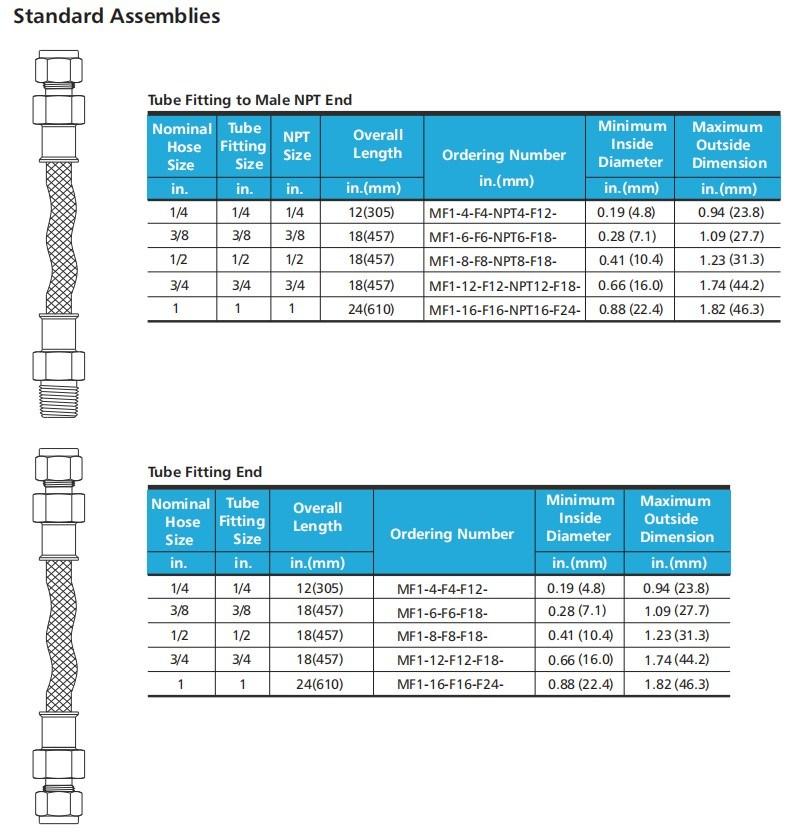

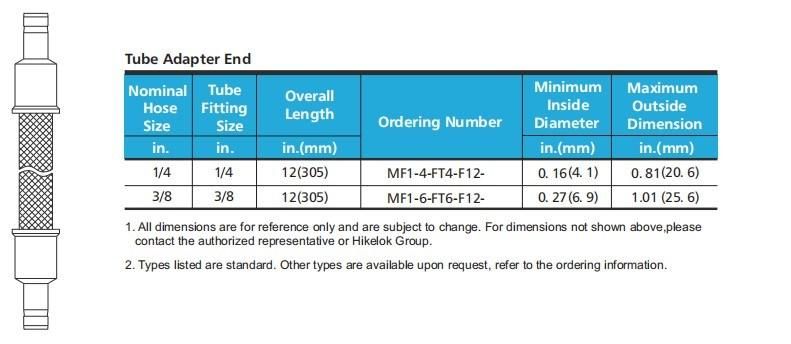

 Standard and custom-length assemblies







 Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE



Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
