• Model NO.：95,8"
• Trademark：kelian
• Origin：China
• HS Code：8479909090
• Production Capacity：50000

Basic Info.

Model NO. 95/8" Trademark kelian Origin China HS Code 8479909090 Production Capacity 50000

Product Description

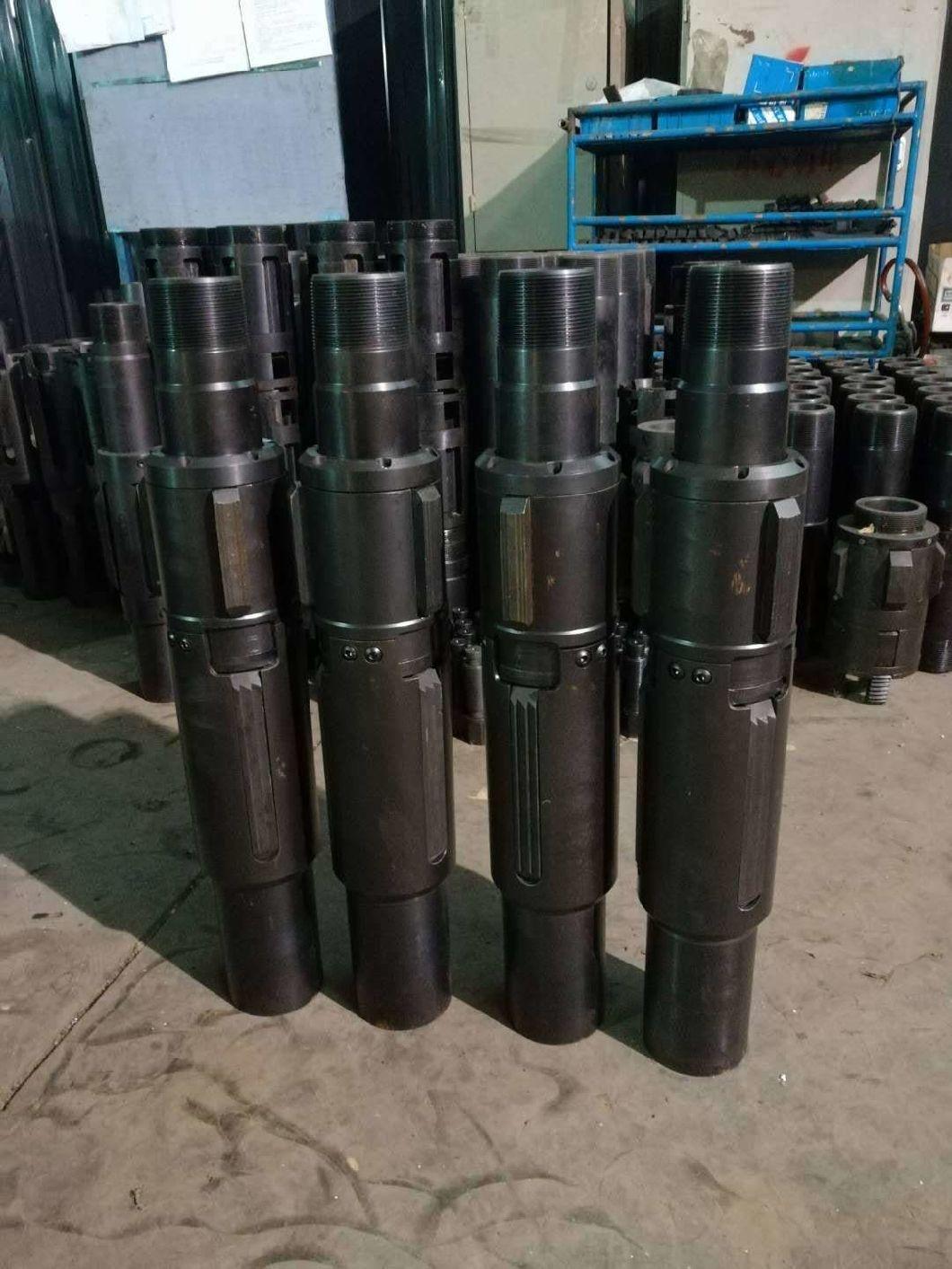

1, KLM series of mechanical tubing anchor is a mechanical device connected with PCP tubing column, the stator following attachment, the PCP torque on the stator to the casing, thereby preventing tubing upside down phenomenon, to ensure the normal production of oil well.
2, structure
KLM series of tubing anchored by a cam link body, centralizer block, slip teeth etc..
3, work principle
The PCP is started with the rotation of the cam link anchors the stator, the inclination angle of the cam link body, the realization of the three slip teeth at the same time, reliable anchoring in the pipe, realize the normal operation of the screw pump. Disanchor, counterclockwise three slip teeth and indent

Model	External diameter(mm)	Max drift diameter	Length	Thread size	Scope of annular tube (mm)
KLM4	80	22	620	23/8"EUE	82-115
KLM5½"	113	62	620	27/8"EUE	115-130
KLM6"	134	76	550	31/2"EUE	142-158
KLM7"	147	62	620	27/8"EUE	148-170
KLM7"B	147	76	620	31/2"EUE	148-170
