Nickel Alloy 1.4876 Hot Rolled Flange in High Quality & Best Competitive Price
Jiangsu Xingda Alloy Co., Ltd.- Standard：ASTM, GB
- Size：3,8 to 2 Inch
- Colaor：Silver
- Shape：Irregular
- Tensile Strength：980min
- Application：Industrial
Base Info
- Model NO.：Xingda-017
- Purity：>99.5%
- Alloy：Alloy
- Powder：Not Powder
- Transport Package：Wooden
- Specification：1,2 to 5 Inch
- Trademark：Xingda
- Origin：Jiangsu
- HS Code：7409900000
- Production Capacity：500ton,Year
Description
UNS
Trademark
W.Nr
N08810
Incoloy800H
1.4876
Incoloy 800H
Min.
30
19
balance
0.05
0.15
0.15
Max.
35
23
0.10
1.5
1
0.75
0.015
0.60
0.60
0.03
Incoloy 800H Physical properties
Density
8.0 g/cm³
Melting point
1350-1400 ºC
Minimum mechanical properties in the room temperature
Status
Tensile strength
Rm N/mm²
Yield strength
Rp0.2 N/mm²
Elongation
A5 %
Solution treatment
450
180
35
800H Characteristic:
1.Excellent corrosion resistance in the water media of the extremely high temperature of 500ºC.
2.Good stress corrosion resistance
Incoloy 800H Metallurgical structure:
800H is the face-centered cubic lattice structure, very low carbon content and increased Ti:C rate improve the stability of the structure, anti-allergy, and anti-intergranular corrosion. Low temperature annealing around 950ºC ensure the fine grain structure.
Incoloy 800H Corrosion resistance:
800H can not be corroded in many kinds of media. Its higher nickel content made it have good stress corrosion resistance cracking properties in the water corrosion condition. High chromium content made it better resistance to pitting and crevice corrosion cracking. This alloy can resist nitric acid and organic acid, but it is not so fine in the sulfuric acid and hydrochloric acid.
800H have good corrosion resistance to both oxidation and non-oxidizing salt, but maybe a little pitting in halide, and also excellent properties in the mixture of water, smoke, steam, air and carbon dioxide.
Incoloy 800H Application range and field:
1.Nitrate condenser---Corrosion resistance of Nitric acid
2.Steam heating pipes--Very good mechanical properties
3.Heat up element tube--Very good mechanical properties
For the application of up to 500ºC environment, alloy state supplies change to annealing.

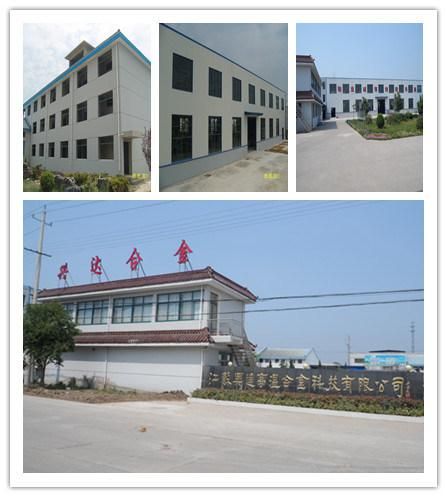

Company Profile:
Test Equipment :
Company strength:
Certificate:
Welcome to contact us,thanks
