• Model NO.：LF-AG
• Item Name：Brass Knurled Threaded Insert Nut
• Materil：Brass, Ss, Al Alloy, Carbon Steel
• Surface Treatment：Black Oxide, Cleaning, Zinc Plated
• Management System：ISO9001:2008
• Certification：SGS,RoHS,Material Certication,Ppap

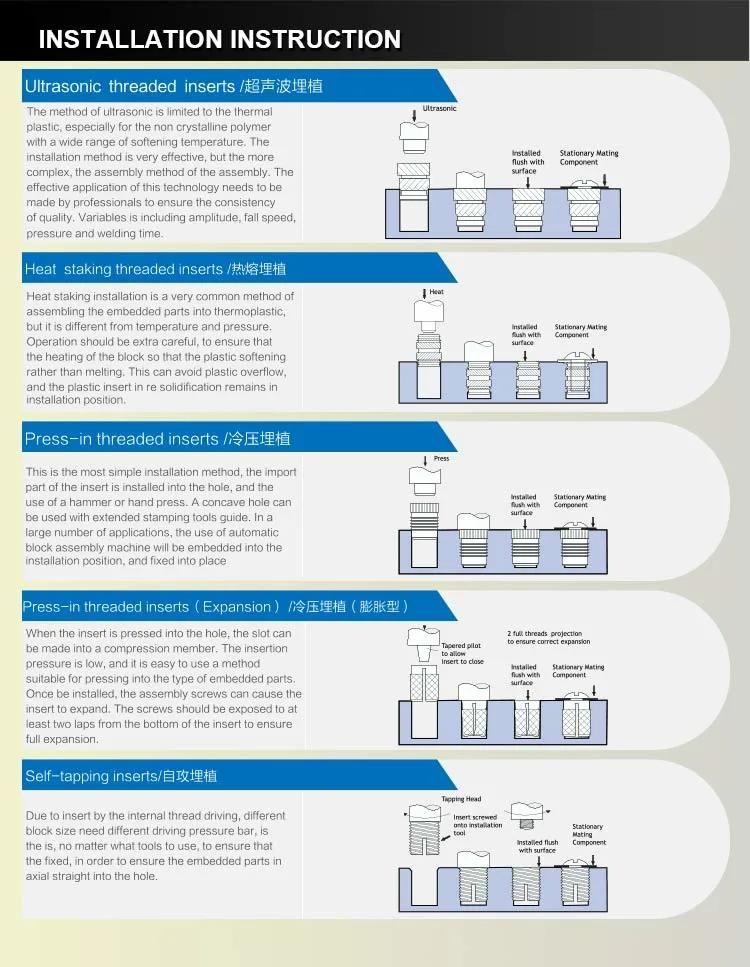

• Insert Methods：by Ultrasonic,Heat Staking,Insert Molding,Cold Pre
• Lead Time：5-10 Working Days
• Delivery Term：by DHL,UPS,TNT,FedEx,EMS,by Ocean,by Air
• Medel：Brass Insert Nut
• Transport Package：PE Bag + Cartons
• Specification：SGS, Material certification
• Trademark：In-saiL
• Origin：Shenzhen, China
• Production Capacity：100kpcs,Week

Basic Info.

Model NO. LF-AG Item Name Brass Knurled Threaded Insert Nut Materil Brass, Ss, Al Alloy, Carbon Steel Surface Treatment Black Oxide, Cleaning, Zinc Plated Management System ISO9001:2008 Certification SGS,RoHS,Material Certication,Ppap Insert Methods by Ultrasonic,Heat Staking,Insert Molding,Cold Pre Lead Time 5-10 Working Days Delivery Term by DHL,UPS,TNT,FedEx,EMS,by Ocean,by Air Medel Brass Insert Nut Transport Package PE Bag + Cartons Specification SGS, Material certification Trademark In-saiL Origin Shenzhen, China Production Capacity 100kpcs/Week

Product Description

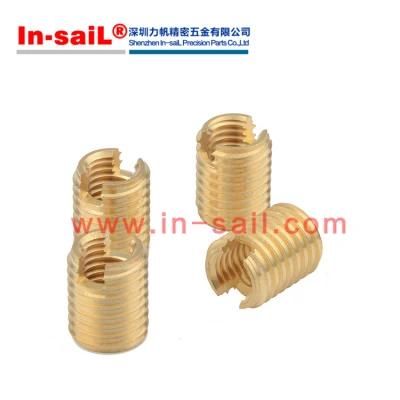

brass knurled threaded insert nut

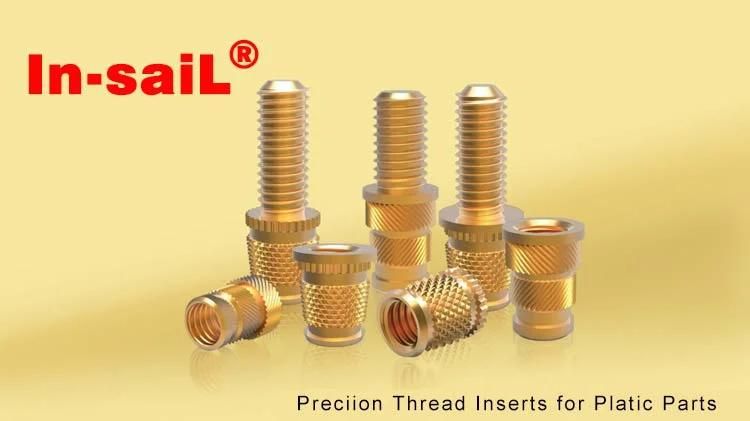

Brass Threaded Inserts

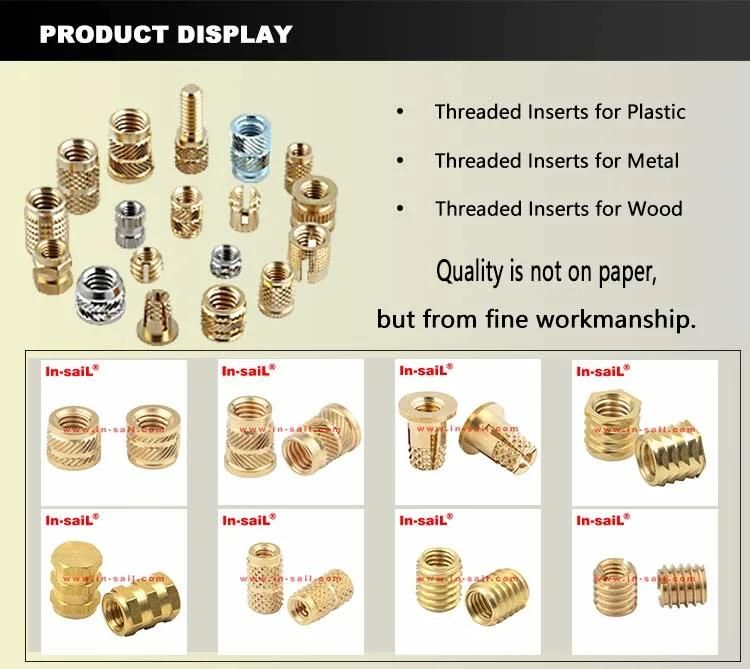

  Brass Knurled Inserts Brass Inserts for Plastics Brass Inserts for Wood and Clipboard Ultrasonic range of Brass Inserts Heatbit range of Brass Inserts Press-in Inserts with and without collars Molded-in Inserts   Also Available : Brass Round Knurled Inserts
Brass Hexagonal Inserts
Brass Square Inserts   Special Features of Brass Inserts: · Threads as per International Go & Not Go Standards.
· Deep Groove for maximum Pull Out Resistance.
· Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
· Knurling Available :
o Diamond
o Straight
o Unidirectional
· Both blind and through brass inserts are available with no minimum Qty.

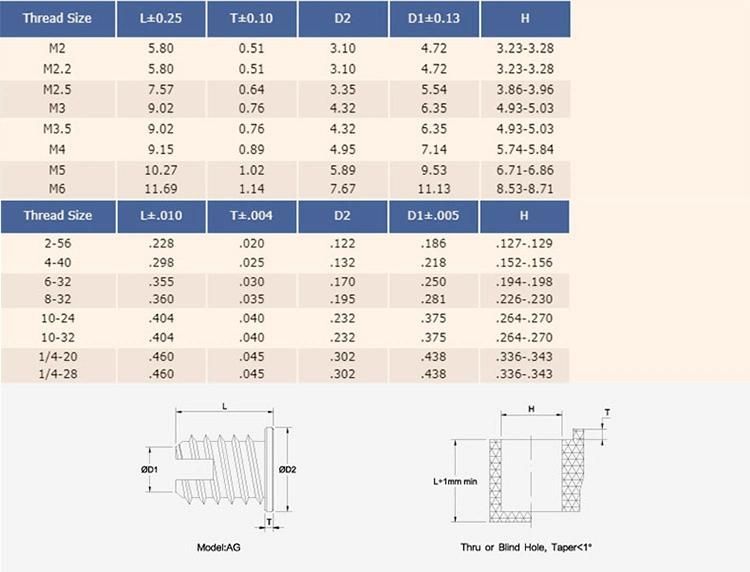

  Length / Size : · Begins from M2 or equivalent threads and up to any size as per custom design or requirement
  Typical Application : · Instrumentation, Telecommunications, and other Plastic Cases Assembly.
  Threads : · ISO Metric (MM Threads)
· BA, BSW (Inches), UNC, UNF or
· Any as per custom design
  Material : · Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
· Any Special Brass Material Composition as per customers requirement
    Finish And Coating : Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.  Any kind of special brass inserts can be developed and supplied exactly as per
customer specifications.
