• Model NO.：QC1-1
• Specification：1,4 to 1 inch
• Trademark：Hikelok
• Origin：Chengdu, China
• HS Code：7307290000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. QC1-1 Specification 1/4 to 1 inch Trademark Hikelok Origin Chengdu, China HS Code 7307290000 Production Capacity 50000 Pieces/Year

Product Description

Quick Connector

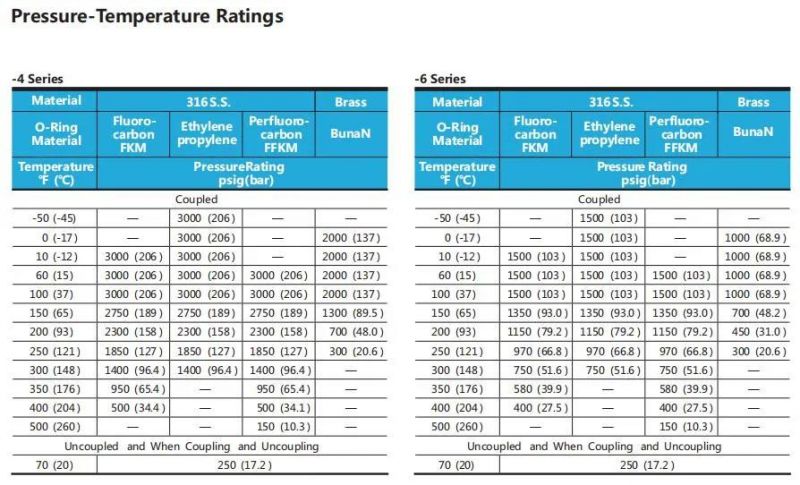

* Maximum working pressure up to 3000 psig (206 bar)
* Push to connect and pull on Knurled sleeve to disconnect enables easy operation
* Minimal spillage upon disconnect and minimal air inclusion upon connect

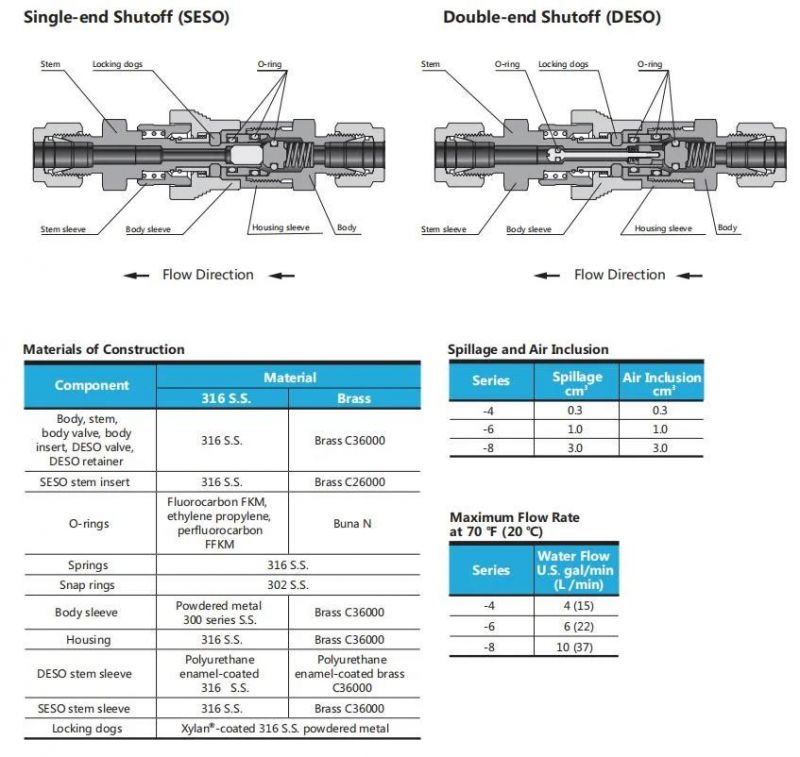

* Materials: stainless steel or brass
* Wide range of seal materials available

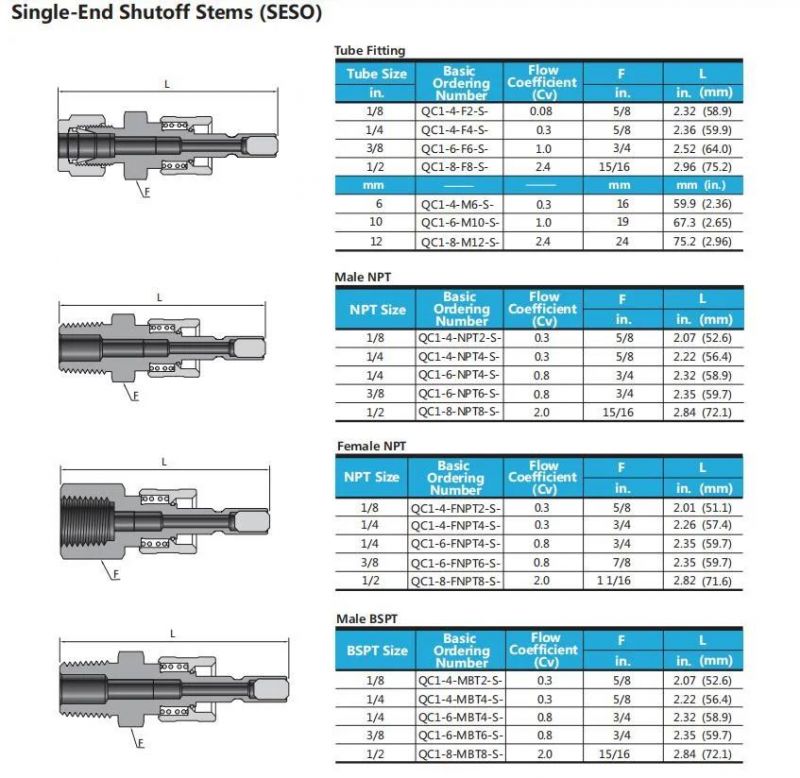

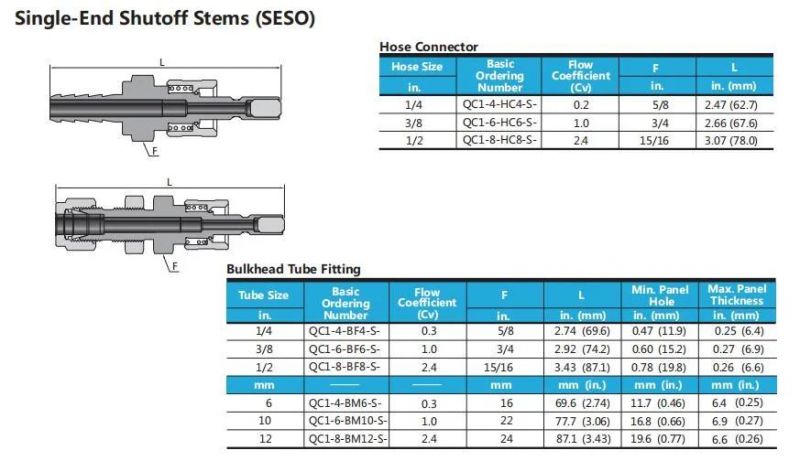

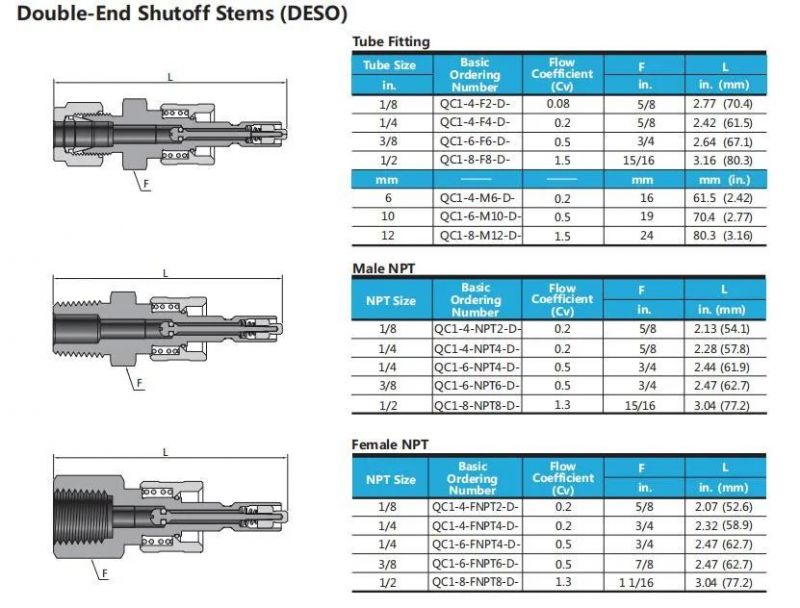

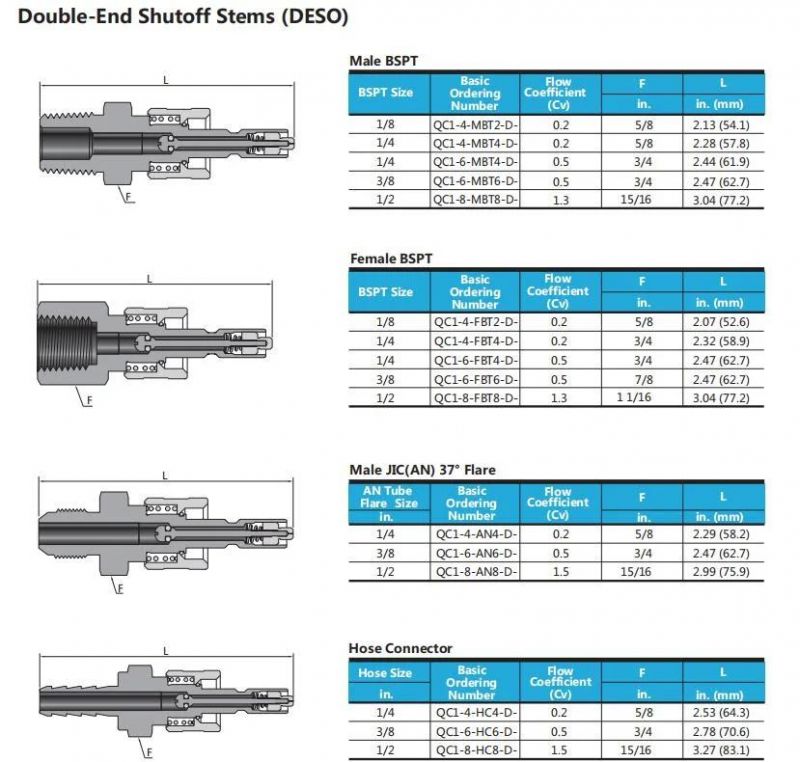

* Single-end shutoff and double-end shutoff stems
* Large number of superior locking balls retains stem
* Interchangeable and intermixable with major
