316 Stainless Steel Pipe Plug/ Tube Adapters Fusible Fittings
Sailuoke Fluid Equipment Inc.- Standard:ANSI, GB
- Material:Stainless Steel
- Connection:Female
- Head Type:Hexagon
- Product Name:Fusible Fittings
- Types:Pipe Plug and Tube Adapters
Base Info

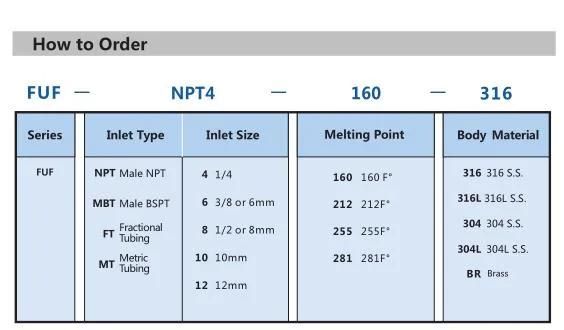

- Model NO.:FUF
- Operating Pressure:Tested to 500 Psig
- Melting Point:160f to 281f
- MOQ:1 Piece
- OEM:Available
- Transport Package:Inside Plastic Bag, Outside Cartons
- Specification:1,4′′ to 1,2′′ and 6mm to 12mm
- Trademark:Hikelok
- Origin:China
- HS Code:7304119000
- Production Capacity:1000,Week
Description
Basic Info.
Model NO. FUF Operating Pressure Tested to 500 Psig Melting Point 160f to 281f MOQ 1 Piece OEM Available Transport Package Inside Plastic Bag, Outside Cartons Specification 1/4′′ to 1/2′′ and 6mm to 12mm Trademark Hikelok Origin China HS Code 7304119000 Production Capacity 1000/WeekProduct Description
Hikelok Fusible Fittings- FUF SeriesApplications
Fusible fttings contain an eutectic alloy plug, and the eutectic alloy plug has a specific melting point. When the ftting is
exposed to temperatures at or above this melting point of fusible metals, the eutectic alloy plug will melt and the pressure
inside the fiting will be released to atmosphere for protection of systems.
Features
* Eutectic alloy is fllel in the stainless plug.
* Fusible fttings function by the yielding or melting of the fuse alloy.
* Fusible fttings are thermally operated but not reusable pressure relief devices.
* Fusible fttings do not protect against overpressure from improper charging practices.
* Maximum operating pressure: Tested to 500 psi (3.4 MPa)

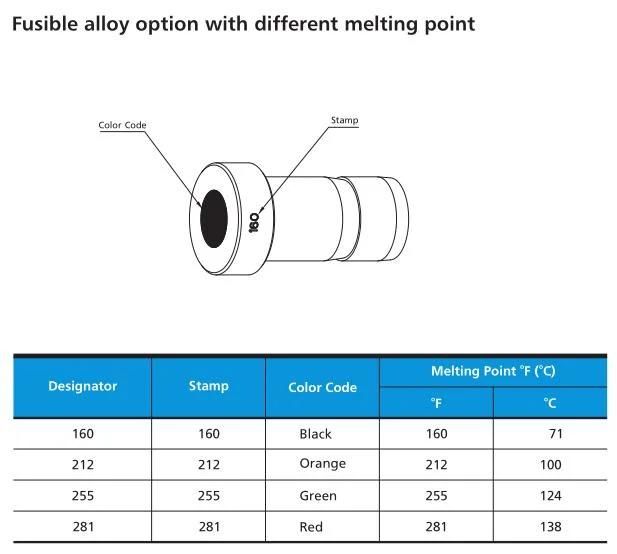

* Temperature rating from 160°F (71°C) to 281°F (138°C) with 4 temperature ranges.

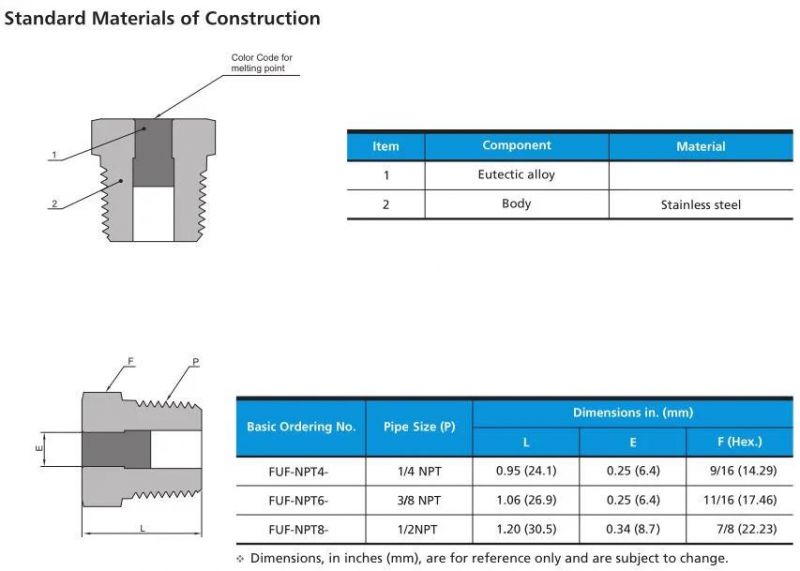

* Two types of fusible fttings: Pipe plug and tube adapters with 316 stainless steel body.
Certifications

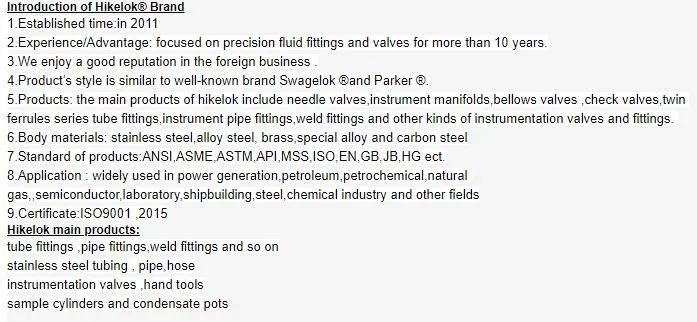

Company Introductions

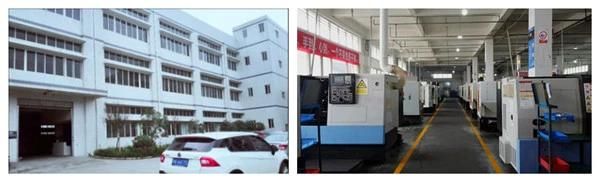

Factory
Our Service
FAQ
