• Model NO.：DN1100 44′′
• Manufacturing Way：Forging
• Transport Package：Wooden Case
• Specification：DN1050 42′′
• Trademark：XQ
• Origin：Cang Zhou
• HS Code：730791
• Production Capacity：1000pieces,Day

Basic Info.

Model NO. DN1100 44′′ Manufacturing Way Forging Transport Package Wooden Case Specification DN1050 42′′ Trademark XQ Origin Cang Zhou HS Code 730791 Production Capacity 1000pieces/Day

Product Description

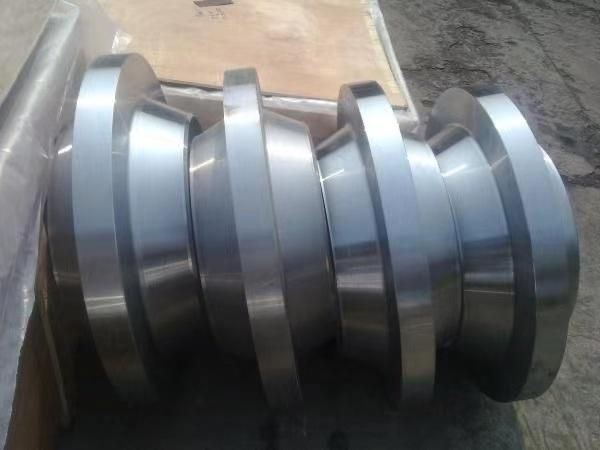

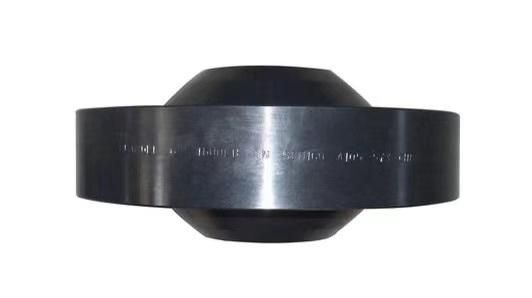

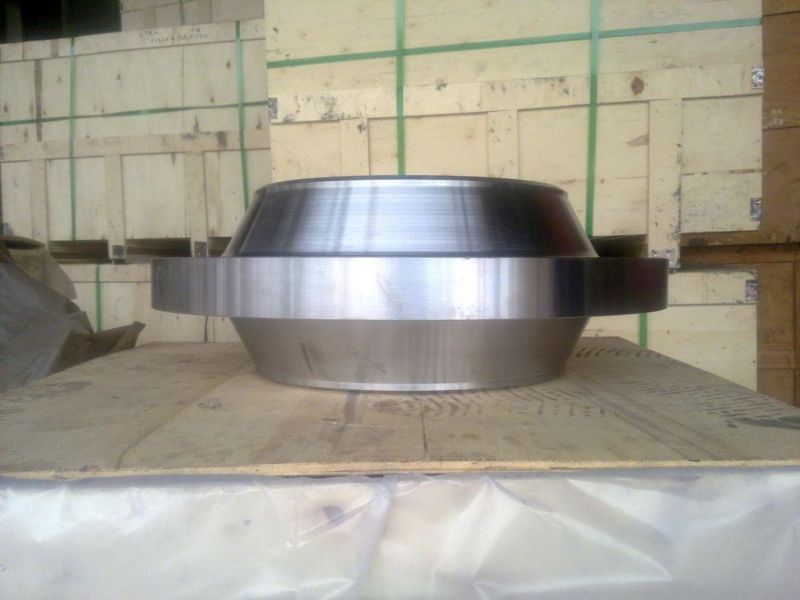

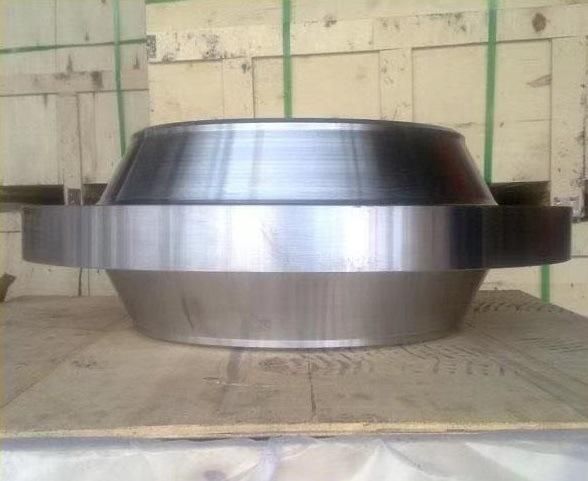

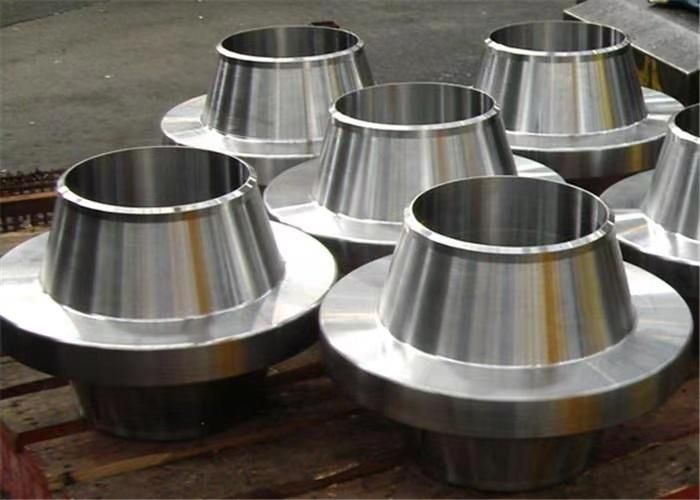

ANSI Carbon Steel A105  Anchor Flange Forged





Product Name: Anchor Flange

Size: 1/2"-48"

Pressure Rating: Class150#-2500#

Standard: ANSI/ASME or as per customer's requets.

Material:  Carbon Steel, Stainless Steel, Alloy Steel.

Steel Grade:  ASTM A105, A350 LF1, A350LF2, A350LF3, ASTM A182 F304, F304L, F316, F316L, F321, A694 F42, F46, F50, F56, F60, D70 etc.

Finish:  Rust Proof Oiled or as per customer's requirements.

Application: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform



The Anchor flange is a one-piece combination reducer and welding neck flange designed expressly for effecting pipe size increases at flanged connections to pumps, valves, compressors and other equipment. It provides a more compact, more efficient and frequently a more economical means than is permitted by the conventional two-piece combination of a concentric reducer and welding neck flange.



Anchor flanges are used to restrain pipeline movement caused by thermal expansion changes or external forces. The most common method of securing an anchor flange is to embed it into a concrete thrust block, thereby spreading the pipeline forces throughout a large foundation. However, anchor flanges can be secured in other ways as necessary to overcome the axial force in the pipeline.

a) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
b) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
c) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
d) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
e) I can't see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
