• Model NO.：DN500 20′′
• Manufacturing Way：Forging
• Transport Package：Wooden Case
• Specification：1,2′′-20′′
• Trademark：XQ
• Origin：Cangzhou
• HS Code：7307910000
• Production Capacity：10000pieces,Day

Basic Info.

Model NO. DN500 20′′ Manufacturing Way Forging Transport Package Wooden Case Specification 1/2′′-20′′ Trademark XQ Origin Cangzhou HS Code 7307910000 Production Capacity 10000pieces/Day

Product Description

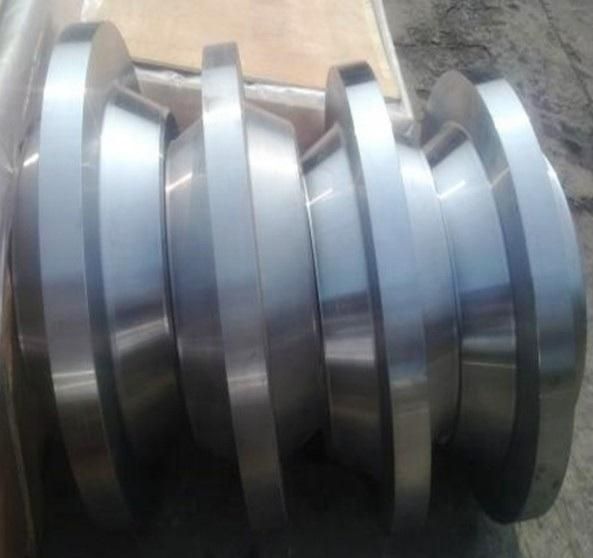

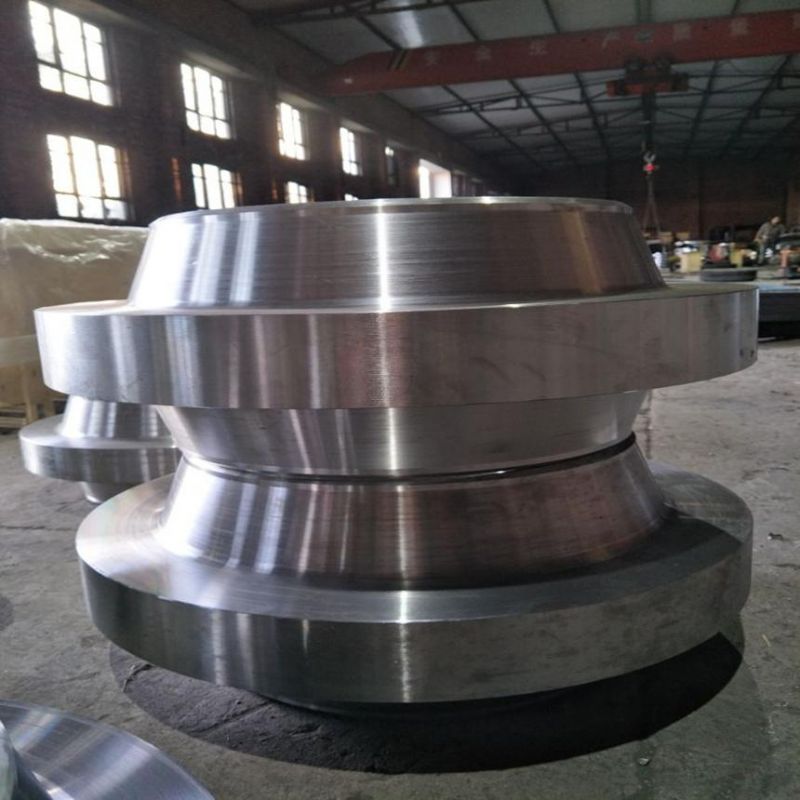

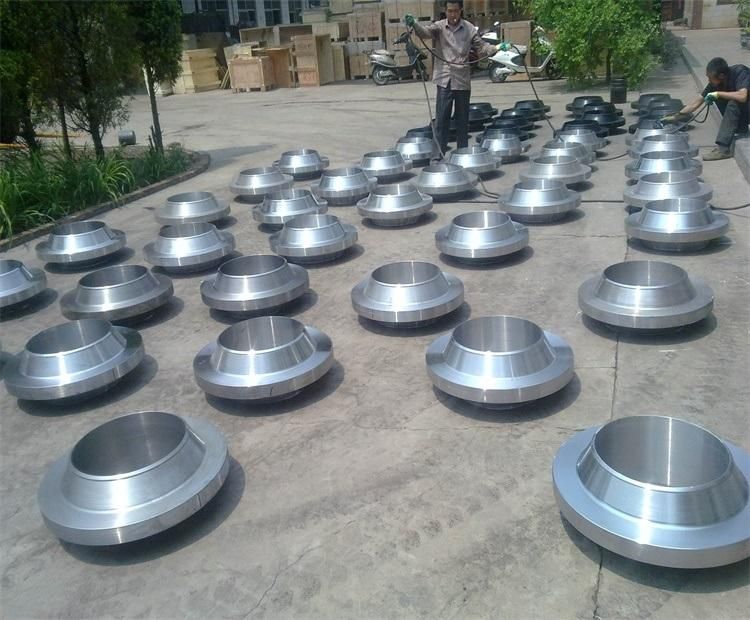

Product Name: Anchor Flange
Size: 1/2"-48"
Pressure Rating: Class150#-2500#
Standard: ANSI/ASME or as per customer's requets.
Material:  Carbon Steel, Stainless Steel, Alloy Steel.
Steel Grade:  ASTM A105, A350 LF1, A350LF2, A350LF3, ASTM A182 F304, F304L, F316, F316L, F321, A694 F42, F46, F50, F56, F60, D70 etc.
Finish:  Rust Proof Oiled or as per customer's requirements.
Application: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

The Anchor flange is a one-piece combination reducer and welding neck flange designed expressly for effecting pipe size increases at flanged connections to pumps, valves, compressors and other equipment. It provides a more compact, more efficient and frequently a more economical means than is permitted by the conventional two-piece combination of a concentric reducer and welding neck flange.
Anchor flanges are used to restrain pipeline movement caused by thermal expansion changes or external forces. The most common method of securing an anchor flange is to embed it into a concrete thrust block, thereby spreading the pipeline forces throughout a large foundation. However, anchor flanges can be secured in other ways as necessary to overcome the axial force in the pipeline.
