• Model NO.：PI-71
• Clamps：Waterproof
• Cable Accessories：Fireproof
• Cable Fitting：Cable Fittings
• Tap Connector：Tap Connectors
• Cable Connector：Cable Connectors
• Piercing Connector：Piercing Connectors
• Insulation Piercing Connector：Insulation Piercing Connectors
• Insulation Piercing Clamp：Insulation Piercing Clamps
• Transport Package：Export Standard Packaging
• Specification：IEC
• Trademark：JMA
• Origin：China
• HS Code：8538900000
• Production Capacity：3000000PCS,Year

Basic Info.

Model NO. PI-71 Clamps Waterproof Cable Accessories Fireproof Cable Fitting Cable Fittings Tap Connector Tap Connectors Cable Connector Cable Connectors Piercing Connector Piercing Connectors Insulation Piercing Connector Insulation Piercing Connectors Insulation Piercing Clamp Insulation Piercing Clamps Transport Package Export Standard Packaging Specification IEC Trademark JMA Origin China HS Code 8538900000 Production Capacity 3000000PCS/Year

Product Description

Certification: CE certification

p-71	AWG	Diameter	Section
main	#11 -- 3/0	2.2mm  -- 11mm	35-95sqmm
Tap	#16 -- # 7	1.3mm --  3.5mm	4-54sqmm

Specification

Material: High strength aluminium alloy, anti-UVplastic
A broad usage in the low voltage insulation lines, leading the branch connection to the main conductor. T-connection of low v oltage insu lation wire
service and cable branch connection for building distribution system. The material for the inside body is high strengt h aluminum all oy, and the
insulation cover is used polyvinyl chloride(PVC). The connectors with specially designed contact teeth, are suitable for the connection of aluminum.
Put the main conductor and branch conductor parallel into the teeth grooves of the clamp, tighten the bolts, pierce the insulation of two conductors to make the conductors connect.
The insulation cover functions as waterproof and sealing perfectly.
At the breaking force of the conductor, the connector will not be distorted and broken. At the rated current and short circuit, rising temperature of theconnector should be less than the connecting conductor

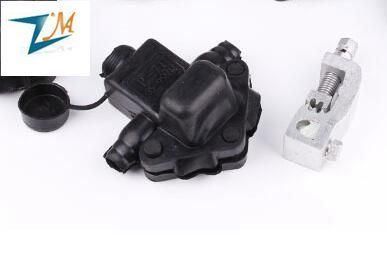

IPC-Insulation Piercing Connector

(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designedcontact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.

Why Choose Ziyong Technology

1. Professional operation experience.
2. Free sample are available.
3. All size can be customised.
4. Safe packaging.
5. Prompt delivery.

The reasons of choosing insulation piecring connector

1. Simple installation
2. Safe use
3. Economical Cost
4.High applicability









FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.
