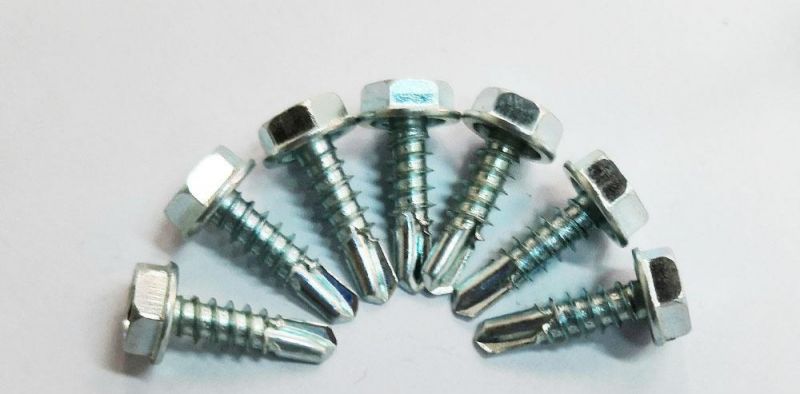

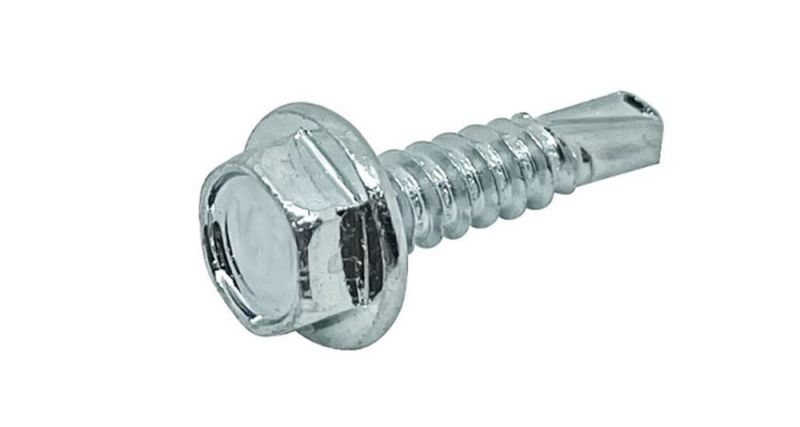

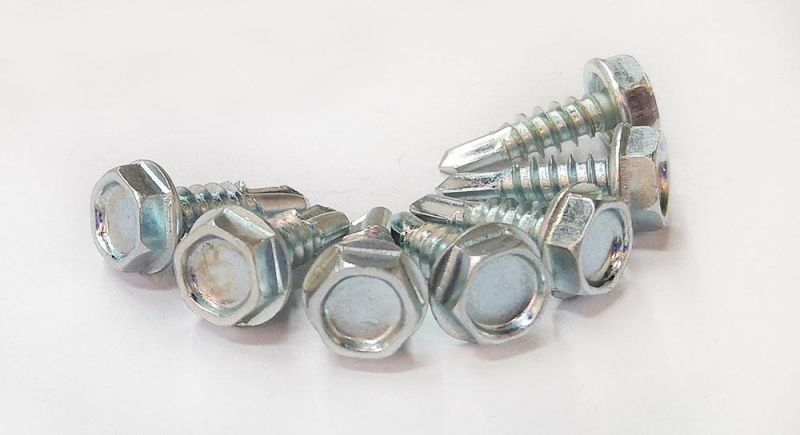

Hex Washer Head Self Drilling Screw Zinc Planted Sheet Metal Screw
Shanghai Monsun Technology Co., Ltd.- Material：Carbon Steel
- Type：Hexagon Head
- Groove：Hexagon
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN
Base Info
- Model NO.：MS0226-77
- Grade：12.9
- Colour：White,White-Blue,Yellow
- Delivery Period：30days,45days,60days,Follow Customer Wishes
- Transport Package：Bulk, Bag, Box, Plastic Barrel
- Specification：M3.5, M3.9, M4.2, M4.5, M4.8, M5.5, M6.3.
- Trademark：OEM
- Origin：Zhejiangchina
- HS Code：731814
- Production Capacity：60000tons,Year
Description
Self-drilling screws, a type of self-tapping screw, are threaded fasteners that drill their own hole and thread it as they are installed. Usually only recommended for use with metal, self-drilling screws are available with wings that enable use when fastening wood to metal. The drill point length should be long enough to penetrate both materials being fastened before the threading portion reaches the material.
Self-Drilling Screws with a point "like a drill bit", these screws create their own hole, and their own thread in one action.
Self-Drilling Screws are also commonly called 'Tek' screws, a proprietary brand name associated with their unique shape and function.
Drill point sizes dictate drilling capacity. Common Tek point sizes are #2, #3, #4 and #5 (Series 500) - 2 and 3 most common, 4 and 5 for going through thicker metal.
Most common uses -
Cladding and metal roofing
HVAC - duct, clips and brackets
Carports/sheds/garages
General construction
Steel framing
