• Model NO.：dismantling joint
• Trademark：SOLID
• Origin：Shanxi, China
• Production Capacity：1000 Ton,Month

Basic Info.

Model NO. dismantling joint Trademark SOLID Origin Shanxi, China Production Capacity 1000 Ton/Month

Product Description

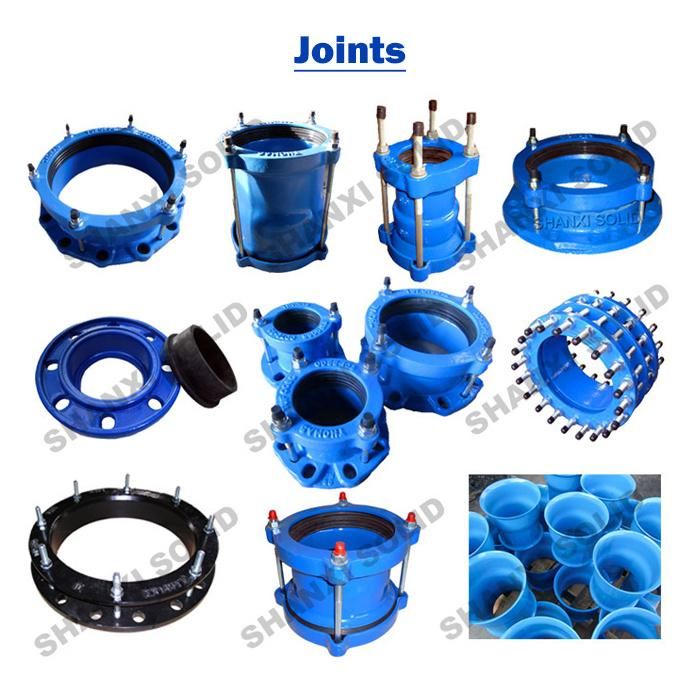

Dismantling joint provides easy installation and disassembly of flanged

pipe work and fittings, or flanged equipment such as valves, meters and pumps, where one piece tie rods are required from the upstream to downstream sides of the pipe equipment installation.

These fittings also allow for axial displacement of pipe work during construction and are suitable for use with water, sewage and neutral liquids up to +80°C.



Working pressure: PN10, PN16

Working temperature: ≤80ºC

Flanges and drillings: BS EN1092-2 PN10, BS EN1092-2 PN16

Materials:

End flange: ductile iron (GGG40/50)

Gland flange: ductile iron (GGG40/50)

Seal: EPDM/NBR

Tie rod, nut: steel, grade 8.8, zinc plated

Bolts and nuts: steel, grade 8.8, zinc plated

Coating: blue fusion bonded epoxy powder

Size: DN50-DN250

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. Which price terms could accepted?
A: FOB,CIF all acceptable.
