• Model NO.：Fig. SC115
• Outlet G Thread：1"-2"
• Bolts, Nuts：Galvanized Steel
• Remark：Ss Bolts, Nuts Are Available
• Seal：EPDM,NBR
• Transport Package：Plywood Case
• Specification：SC
• Trademark：sc
• Origin：China
• HS Code：73071100
• Production Capacity：20000 PCS,Year

Basic Info.

Model NO. Fig. SC115 Outlet G Thread 1"-2" Bolts, Nuts Galvanized Steel Remark Ss Bolts, Nuts Are Available Seal EPDM/NBR Transport Package Plywood Case Specification SC Trademark sc Origin China HS Code 73071100 Production Capacity 20000 PCS/Year

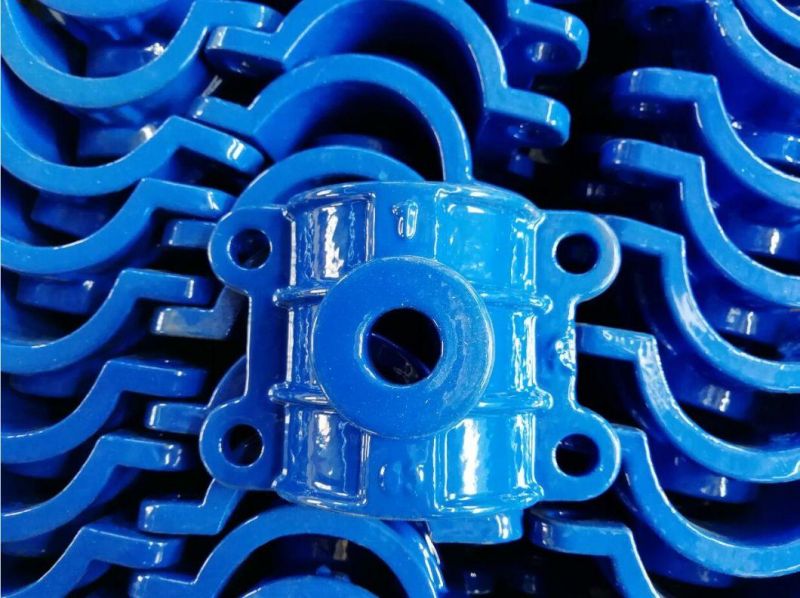

Product Description

Features
Allows full screwing to guarantee the saddle waterproof.
Ductile Iron GGG50 material with FBE coated.
PN10, PN16 working pressure.
Equipped with galvanized steel bolts, nuts.
EPDM or NBR rubber seals.
Material Specification:
Item No. Reference Material
1 Body Ductile iron
2 Cover Ductile iron
3 Gasket EPDM/NBR
4 Washer A2-70
5 Bolts A2-70



Dimensions(mm)
No DE outlet Length width weight
inch mm mm kg
1 50 3/4" 88 100 1.50
2 1"
3 1"1/4
4 1"1/2
5 2"
6 63 3/4" 124 100 2.50
7 1"
8 1"1/4
9 1"1/2
10 2"
11 75 3/4" 135 110 3.00
12 1"
13 1"1/4
14 1"1/2
15 2"
16 90 3/4" 150 110 3.20
17 1"
18 1"1/4
19 1"1/2
20 2"
21 110 3/4" 170 120 3.70
22 1"
23 1"1/4
24 1"1/2
25 2"
26 125 3/4" 192 120 4.50
27 1"
28 1"1/4
29 1"1/2
30 2"
31 140 3/4" 208 120 5.50
32 1"
33 1"1/4
34 1"1/2
35 2"
36 160 3/4" 230 120 7.00
37 1"
38 1"1/4
39 1"1/2
40 2"
41 180 3/4" 250 140 7.50
42 1"
43 1"1/4
44 1"1/2
45 2"
46 200 3/4" 280 140 10.00
47 1"
48 1"1/4
49 1"1/2
50 2"
51 250 3/4" 330 180 14.00
52 1"
53 1"1/4
54 1"1/2
55 2"
56 315 3/4" 400 180 17.00
57 1"
58 1"1/4
59 1"1/2
60 2"
