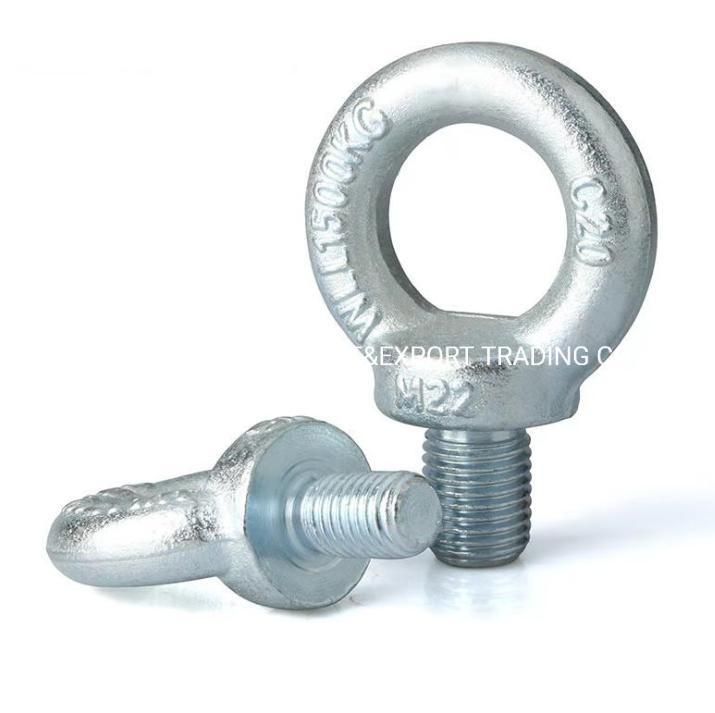

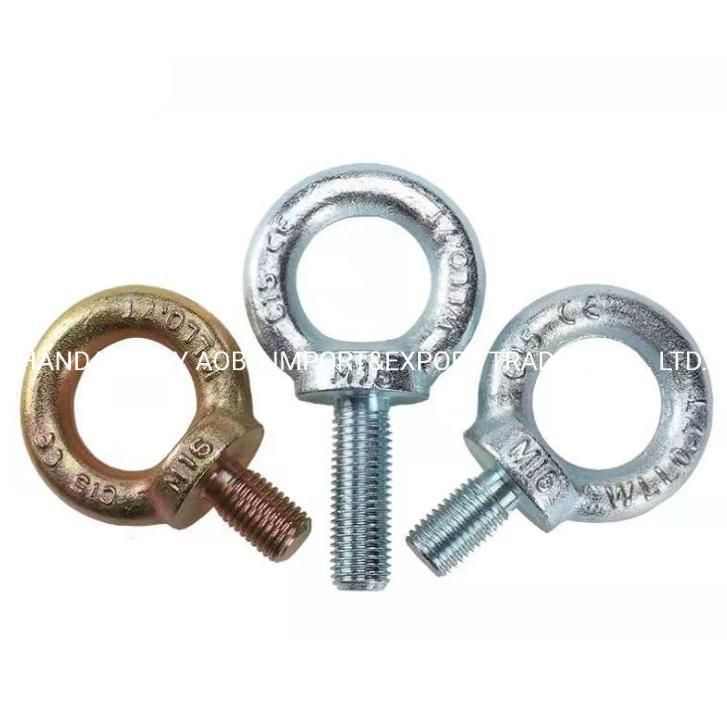

Heavy Duty Steel Drop Forged Anchor Concrete DIN580 Lifting Eye Bolt Carbon Steel Lifting Forged M16 GB580 Eye Bolt
HANDAN CITY AOBO IMPORT&EXPORT TRADING CO., LTD.- Material：Carbon Steel
- Type：Round Head
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN, ANSI, GB
- Grade：8.8
Base Info
- Model NO.：M6-M64
- Application：Environmental, Building
- Finish：Blue-White Zinc Plated
- Trade Term：Fob, CNF
- Delivery：20-25days
- Name：Lifting Eye Bolt
- Type1：Forged Eyebolt
- Quality Class：High Level
- Sample：Free
- Model No.：M16
- Raw Materal：Carbon Steel 4.8
- Function：Rope, Twine and Cables
- Heavy Duty：Industrial
- Color：Wzp or Yzp
- Others：Shackles, Eyebolt, Eye Nut
- Payment：L,C, T,T
- DIN：DIN580
- Market：Korea Market
- Transport Package：Box+Carton+Pallet
- Specification：carbon steel
- Trademark：AOBO
- Origin：Handan, China
- HS Code：731815
- Production Capacity：500 Ton,Tons Per Month
Description
Overview
(lbs)Dimensions(mm) d1 d2 d3 b e h k M6 0.14 11 17 28 16 13 6 17 6 M8 0.14 13 20 36 20 15 6 18 8 M10 0.23 24 25 45 25 18 8 22 10 M12 0.34 40 30 54 30 22 10 26 12 M14 0.49 63 35 63 35 28 12 30 14 M16 0.7 62 35 63 35 28 12 30 14 M20 1.2 99 40 72 40 30 12 35 16 M22 1.5 148 45 81 45 35 14 40 18 M24 1.8 192 50 90 50 38 16 45 20 M27 2.5 194 50 90 50 38 18 45 20 M30 3.6 366 65 108 60 45 18 55 24 M33 4.3 380 65 108 60 45 22 55 24 M36 5.1 585 75 126 70 55 22 65 28 M39 6.1 618 75 126 70 55 26 65 28 M42 7 889 85 144 80 65 30 75 32 M45 8 938 85 144 80 65 30 75 32 M48 8.6 1408 100 166 90 70 35 85 38 M52 9.9 1456 100 166 90 70 35 85 38 M56 11.5 1942 110 184 100 80 38 95 42 M64 16 2736 120 206 110 90 42 100 48
Product Description
Weight 100pcs(lbs)
