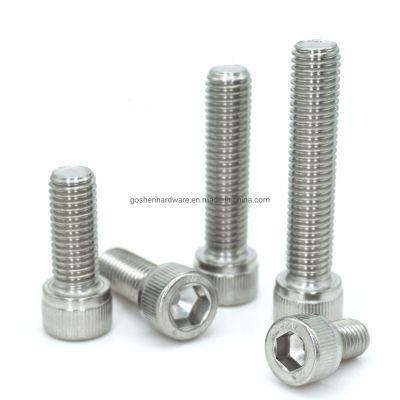

Solar System Fastener Stainless Steel Socket Head Machine Screw
Jiaxing Goshen Hardware Co., Ltd.- Material：Stainless Steel
- Type：Round Head
- Groove：Hexagon
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN, GB
Base Info
- Model NO.：M5-M100
- Grade：A2-70, A4-80
- Size：M5-M100
- Sample：Free
- Surface：Plain
- Delivery Time：3-20days
- Export Markets：Global
- Brand Name：GS
- OEM：as The Drawing
- Transport Package：Carton + Pallet
- Specification：2.2mm-8mm
- Trademark：GS
- Origin：China
- HS Code：7318151001
- Production Capacity：50ton,Week
Description
minCoarse thread Fine thread pitch-1 Fine thread pitch-2 min max min max max max M3 0.5 - - 2.86 3 2.52 2.58 5.5 5.68 5.32 M4 0.7 - - 3.82 4 3.02 3.08 7 7.22 6.78 M5 0.8 - - 4.82 5 4.02 4.095 8.5 8.72 8.28 M6 1 - - 5.7 6 5.02 5.14 10 10.22 9.78 M8 1.25 1 - 7.64 8 6.02 6.14 13 13.27 12.73 M10 1.5 1.25 1 9.64 10 8.025 8.175 16 16.27 15.73 M12 1.75 1.25 1.5 11.57 12 10.025 10.175 18 18.27 17.73 M14 2 1.5 - 13.57 14 12.032 12.212 21 21.33 20.67 M16 2 1.5 - 15.57 16 14.032 14.212 24 24.33 23.67 M18 2.5 1.5 2 17.57 18 14.032 14.212 27 27.33 26.67 M20 2.5 1.5 2 19.48 20 17.05 17.23 30 30.33 29.67 (M22) 2.5 1.5 2 21.48 22 17.05 17.23 33 33.39 32.61 M24 3 2 - 23.48 24 19.065 19.275 36 36.39 35.61 (M27) 3 2 - 26.48 27 19.065 19.275 40 40.39 39.61 M30 3.5 2 - 29.48 30 22.065 22.275 45 45.39 44.61 (M33) 3.5 2 - 32.38 33 24.065 24.275 50 50.39 49.61 M36 4 3 - 35.38 36 27.065 27.275 54 54.46 53.54 M42 4.5 3 - 41.38 42 32.08 32.33 63 63.46 62.54 M48 5 3 - 47.38 48 36.08 36.33 72 72.46 71.54 M56 6.5 4 - 55.26 56 41.08 41.33 84 84.54 83.46 M64 6 4 - 63.26 64 46.08 46.33 96 96.54 95.46 M72 6 4 - 71.26 72 55.1 55.4 108 108.54 107.46 M80 6 4 - 79.26 80 65.1 65.4 120 120.54 119.46 M90 6 4 - 89.13 90 75.1 75.4 135 135.63 134.37 M100 6 4 - 99.13 100 85.12 85.47 150 150.63 149.37
