Customized High Quality ASME B16.47 Ser. B (API 605) Flange Class 75/150/300/400/600/900 Flange Slip on Flange
Hubei Fotma Machinery Co., Ltd.- Standard：ANSI
- Type：Welding Flange
- Material：Carbon Steel
- Structure：Flanges
- Connection：Flanged
- Sealing Surface：RF, FF and Rtj
Base Info
- Model NO.：ASME B16.47 SER. B(API 605) Flange
- Manufacturing Way：Forging
- Pressure：75, 150,300,400,600, 900 Lbs
- Surface Treatment：Yellow,Black,Rust Proof Oil
- Sealing Type：FF,RF,Rtj
- Transport Package：No Fumigate Plywood,Wood Pallet or Ca
- Specification：1,2" To 24"
- Trademark：FOTMA
- Origin：China
- HS Code：730791
- Production Capacity：2000pieces,Month
Description
Size
ASME B16.5:1/2"-24"
ASME B16.47A:26"-48"
ASME B16.47B:26"-48"
Rating
150LBS 300LBS 600LBS 900LBS 1500LBS
Standard
ASME B16.5, ASME B16.47A, ASME B16.47B,
Material
Carbon steel: A105, A105N
Stainless steel: ASTM A182 F304, 304L, 316, 316L,
Surface
Black Painting / Anti Rust Oil / Hot Dip Galvanized/Yellow Painting
Certification
PED ISO
Packing
Plywood cases, pallets
Application
Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc

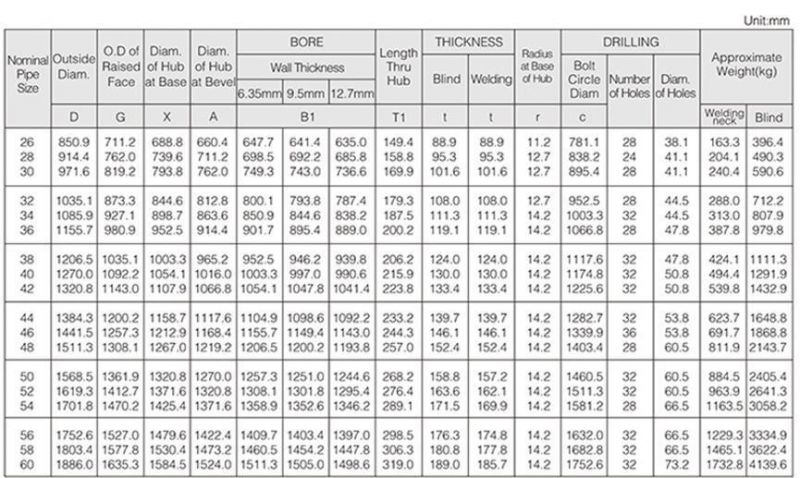

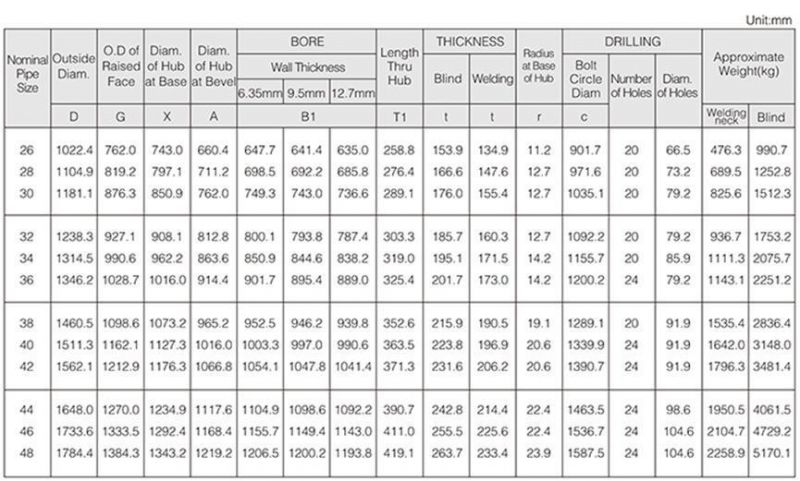

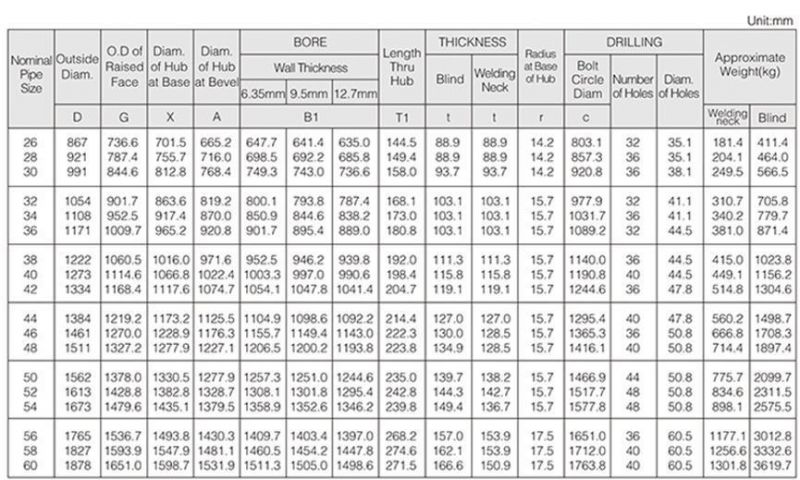

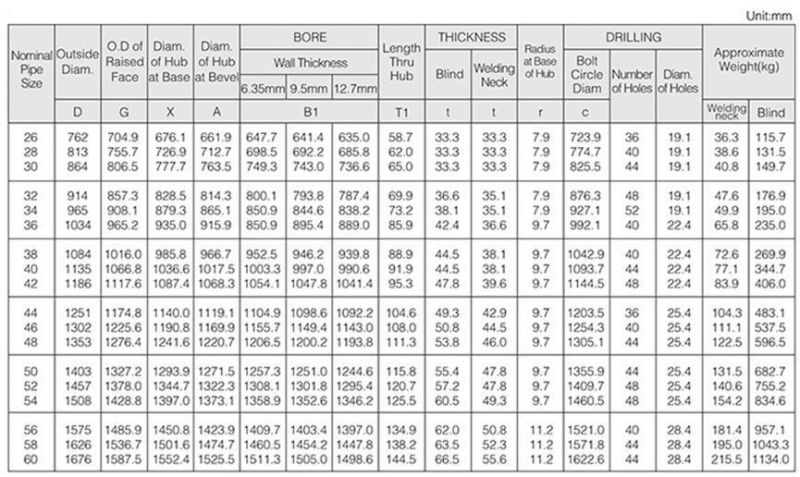

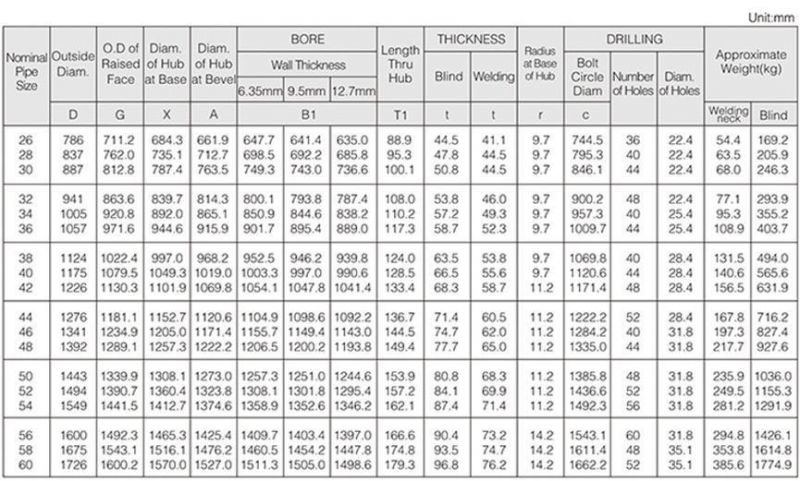

CLASS 75 FLANGES
ASME B16.47 SER.B (API 605)
CLASS 150 FLANGES
ASME B16.47 SER.B (API 605)
CLASS 300 FLANGES
ASME B16.47 SER.B (API 605)
CLASS 400 FLANGES
ASME B16.47 SER.B (API 605)
CLASS 600 FLANGES
ASME B16.47 SER.B (API 605)
CLASS 900 FLANGES
ASME B16.47 SER.B (API 605)
