Brass Forged Dust Cap Cam and Groove Coupling
NINGBO MATCH-LIGHT HARDWARE CO., LTD.- Standard：ANSI
- Material：Brass
- Connection：Female
- Surface Treatment：Without Treatment
- Head Type：Round
- Delivery Time：35 Days
Base Info
- Model NO.：DC
- Transport Package：Carton, Pallet
- Specification：ALL SIZES
- Trademark：OEM
- Origin：China
- Production Capacity：500000PC,Year
Description
Basic Info.
Model NO. DC Transport Package Carton, Pallet Specification ALL SIZES Trademark OEM Origin China Production Capacity 500000PC/YearProduct Description
Brass Forged Dust Cap Cam and Groove Coupling
Product Specification:
Standard: A-A-59326(MIL-C-27487) or DIN2828

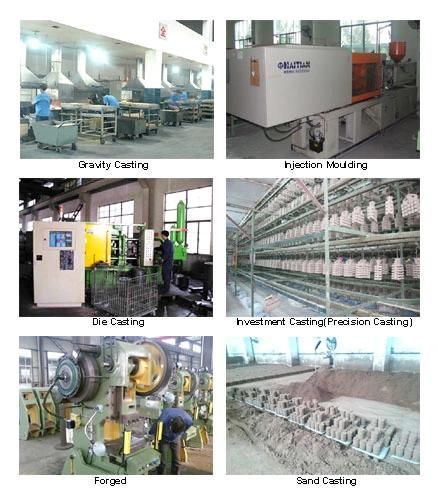

Technic: Sand Casting and Forging Hose Fitting
Size: From 1/2" to 6"
Type: DC
Body Material: Brass
Cam Arm Material: Brass
Gasket Material: NBR, EPDM, VITON, PTFE Envelop gasket, Silicone
Thread: NPT, BSP(Ususally, Female Thread is BSPP, Male Thread is BSPT)
Technic:
Working Pressure:
Working pressure. The 1/2" inch through 4 inch couplings shall be rated for 150 pounds per square inch working pressure . The 6-inch couplings be rated for 75psi or 150 psi working pressure as appropriate.
Packing&Shipping:
Application:
Agriculture irrigationFood and beverageOil and refineryFire controlConstructionChemicalCollierySanitaryWater treatment
RAQ:
Cam and grove couplings can be used in a system in which filing of chemical drums is required. These can be utilized by factories that require paint, dye and ink medium transfers. The couplings are generally used wherein frequent modifications of hoses are necessary for an appropriate mix. Even cam and groove couplings are useful for petroleum trucks.
| DC | Dust Cap Coupler |
| SIZE | Part Number |
| 1/2" | DC 050BR |
| 3/4" | DC 075BR |
| 1" | DC 100BR |
| 1-1/4" | DC 125BR |
| 1-1/2" | DC 150BR |
| 2" | DC 200BR |
| 2-1/2" | DC 250BR |
| 3" | DC 300BR |
| 4" | DC 400BR |
| 5" | DC 500BR |
| 6" | DC 600BR |
