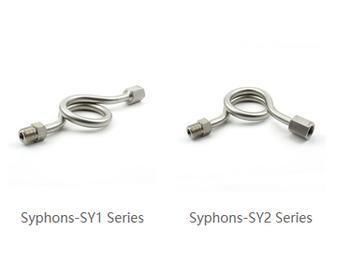

• Model NO.：SY1; SY2
• Inlet/Outlet Size：1,4 ;1,2 in
• Inlet/Outlet Type：NPT;BSPP; BSPT; ISO; Welded
• Body Material：316,316L,304,304L S.S
• Certificate：CE; ABS; ISO9001; ISO 14001; ISO 45001.
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7304119000
• Production Capacity：5000 PCS Per Month

Basic Info.

Model NO. SY1; SY2 Inlet/Outlet Size 1/4 ;1/2 in Inlet/Outlet Type NPT;BSPP; BSPT; ISO; Welded Body Material 316/316L/304/304L S.S Certificate CE; ABS; ISO9001; ISO 14001; ISO 45001. Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7304119000 Production Capacity 5000 PCS Per Month

Product Description

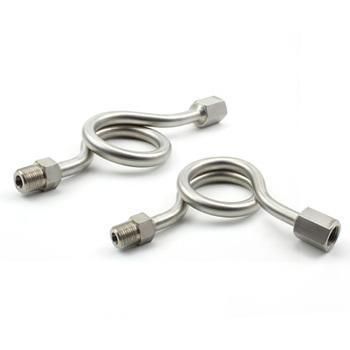

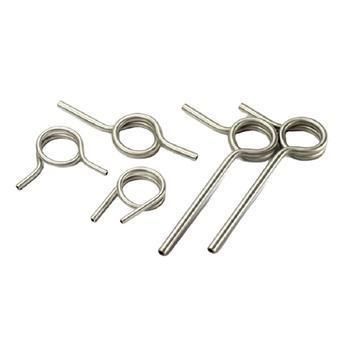

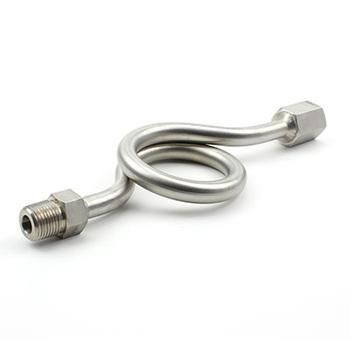

Stainless Steel 316 304 Pressure Gauge Syphon Tube Syphon Pipe



Features:
 Maximum working pressure up to 6000 psig (413 bar)
 Working temperature from -20ºF to 900ºF (-28ºC to 482ºC)
 Variety of end connections
 316 S.S. , 316L S.S. , 304 S.S. and 304L S.S. material



 Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.

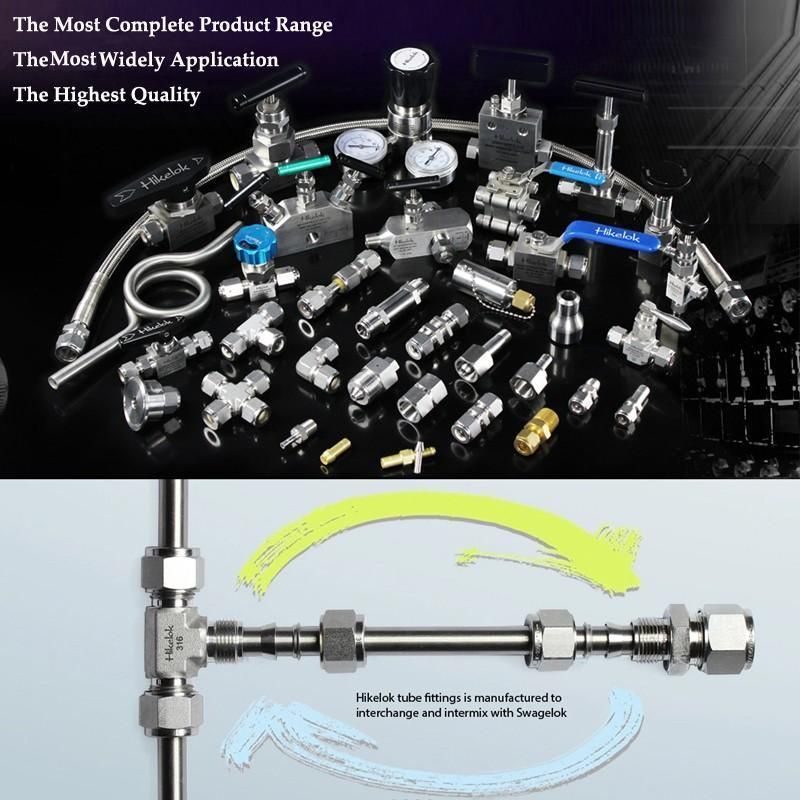

4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE




Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
