• Model NO.：PP MALE WITH LATCH
• Transport Package：Carton, Pallet
• Specification：ALL SIZES
• Trademark：OEM
• Origin：China
• Production Capacity：5000000PC,Month

Basic Info.

Model NO. PP MALE WITH LATCH Transport Package Carton, Pallet Specification ALL SIZES Trademark OEM Origin China Production Capacity 5000000PC/Month

Product Description

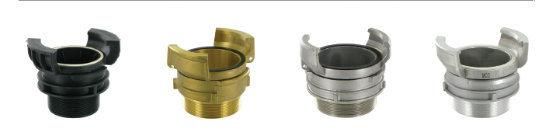

Polypropylene PP Male BSP Thread Guillemin Coupling


The Guillemin-coupling is a symmetrical system and apt for a large variety of applications. Its success is mostly because of the form, which enables perfect and easy closure. De symmetrical half couplings are tightened by turning the locking ring a quarter when it grips behind the lugs. The ensure even more tightness a Guillemin wrench can be used to turn the locking ring even further.

On fixed installations often is chosen for a half coupling whithout a locking ring, seen only one locking ring is needed to tighten 2 couplings together.
In some cases it is hard to couple a hose. In such a situation there can be chosen for a Guillemin coupling with a locking ring, but without the lugs

Specification:

Standard: EN 14420-8/NF E29-572

Casting Method: injection moulding

Size: From DN40 (1-1/2") to DN100(4")

Material:PP

Seal: NBR, EPDM, FPM, PTFE

Thread: BSP

Surface Treatment: Polishing or Sand-Blast

Working Pressure: 16bar/230psi

Test Pressure: 30bar/435psi

Minimum Blast Pressure: 50bar/725psi


Size		Part Number
1-1/2"	DN40	PP 68640
2"	DN50	PP 68650
3"	DN80	PP 68680

Technic:
