• Model NO.：YG-07
• Function：Water Filter
• Origion：Tianjin
• Medium：Water
• Certification：ISO9001:2000
• Transport Package：Wooden Case
• Specification：CE, ROHS, SGS, GMP
• Trademark：Tianjin U-ideal Instrument
• Origin：Tianjin, China
• HS Code：8421219990
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. YG-07 Function Water Filter Origion Tianjin Medium Water Certification ISO9001:2000 Transport Package Wooden Case Specification CE, ROHS, SGS, GMP Trademark Tianjin U-ideal Instrument Origin Tianjin, China HS Code 8421219990 Production Capacity 50000PCS/Year

Product Description

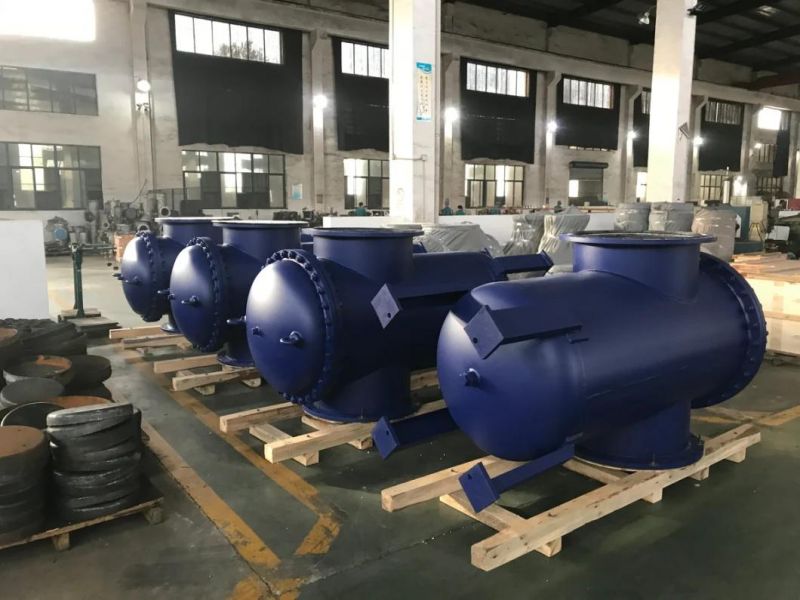

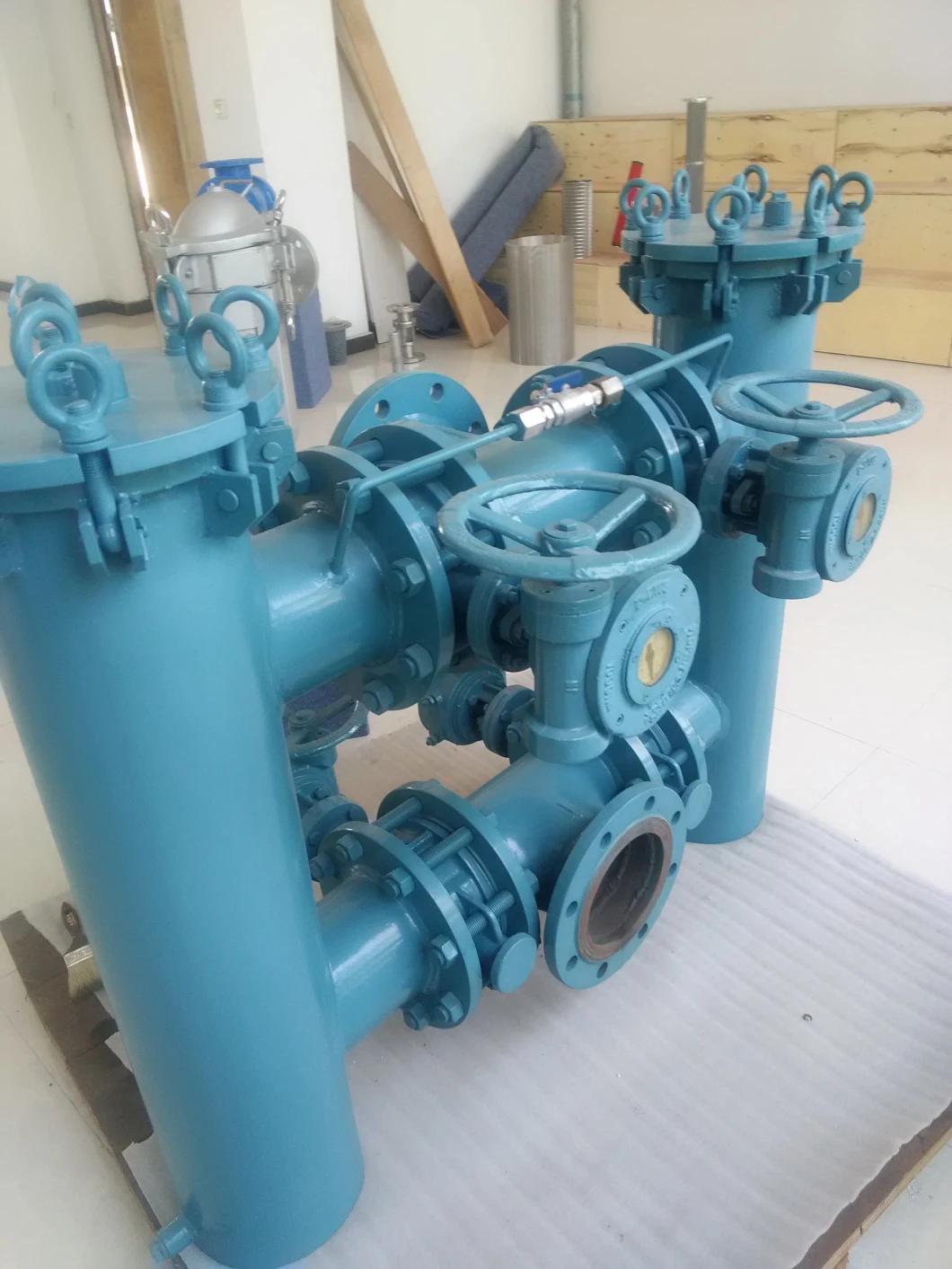

Basket strainer is mainly composed of takeover, director, filter blue, flange, flange cover, and fasteners, etc. When liquid through head into the blue filter, the solid impurity particles will be blocked within the blue filter, and clean fluid through the filter basket, the filter outlet. When need to be cleaned, turning the screw at the bottom and net fluid, remove the cover flange and repack after cleaning. Therefore, the use of maintenance is very convenient.

Specification:

Technical parameters---- basket type filter
Housing material: carbon steel, stainless steel;
Nominal diameter: DN40-DN400 mm;
Filter screen material: stainless steel;
Sealing material: NBR, pllytef (according to working medium );
Working temperature: no more than 90 centigrade;
Connection type: flange;
Normal pressure: 1.6MPa;
Micron rating: 10-480 mesh (water 18-30 mesh, gas 40-100 mesh, oil 100-480 mesh).

SBL Flanged Upper and Lower Pipe Joint Flat-bottomed Basket Filter

DN	φ	L	H1	H2	H3	~ H	Discharge Port " B"	(m2) Effective Filtration
25	76	220	110	70	280	520	R1/2″	0.003619
32	89	220	110	70	285	525	R1/2″	0.003619
40	108	280	120	100	340	630	R1/2″	0.005718
50	133	280	120	100	340	630	R1/2″	0.005718
65	133	330	160	110	400	750	R1/2″	0.009613
80	159	340	180	140	460	860	R3/4″	0.01539
100	219	420	220	170	550	1040	R3/4″	0.02464
150	273	500	310	220	720	1375		0.04866
200	325	560	390	280	900			0.07858
250	426	660	480	320	1070			0.12005
300	478	750	640	400	1360			0.16537

SBL Flanged Upper and Lower Pipe Joint End Seal Basket Filter

DN	Do	n-y		L	H1	H2	H3	H4	~ H	Discharge Port " B"	Effective Filtration
200	290	4-16	325	560	390	280	230	1310	2005	R3/4″	0.07858
250	375	4-16	426	660	480	320	270	1500	2320	R3/4″	0.12065
300	420	4-16	480	750	640	400	320	1800	2870	R3/4″	0.16537
350	460	4-16	500	800	770	450	370	2050	3305	R1″	0.2225
400	500	4-16	550	840	780	520	400	2250	3675	R1″	0.2916
450	550	4-16	600	960	980	600	440	2500	4070	R1″	0.3642
500	640	4-16	700	1080	1090	650	470	2700	4235	R1″	0.4587
