Swagelok Type Hikelok 3000psig Stainless Steel Quick Connector Quick Coupling with Shutoff
Sailuoke Fluid Equipment Inc.- Standard：DIN, JIS
- Material：Stainless Steel
- Connection：Female
- Surface Treatment：Galvanized Sheet
- Head Type：Round
- Transport Package：Carton
Base Info
- Model NO.：QC1
- Specification：1,4 to 1 inch
- Trademark：Hikelok
- Origin：Chengdu, China
- HS Code：7307290000
- Production Capacity：50000 Pieces,Year
Description
Basic Info.
Model NO. QC1 Specification 1/4 to 1 inch Trademark Hikelok Origin Chengdu, China HS Code 7307290000 Production Capacity 50000 Pieces/YearProduct Description
Quick Connector* Maximum working pressure up to 3000 psig (206 bar)
* Push to connect and pull on Knurled sleeve to disconnect enables easy operation
* Minimal spillage upon disconnect and minimal air inclusion upon connect
* Materials: stainless steel or brass
* Wide range of seal materials available

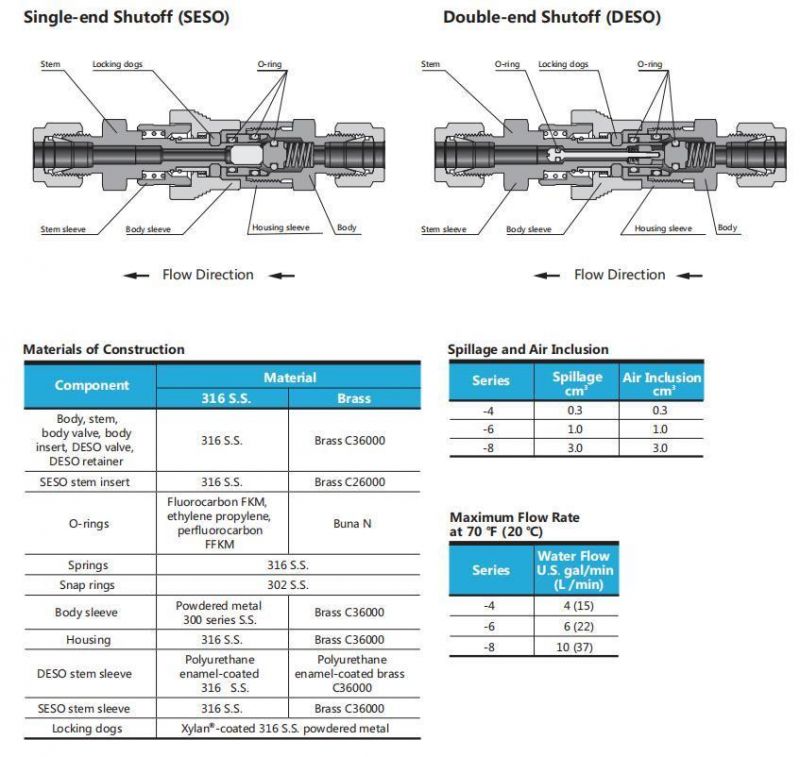

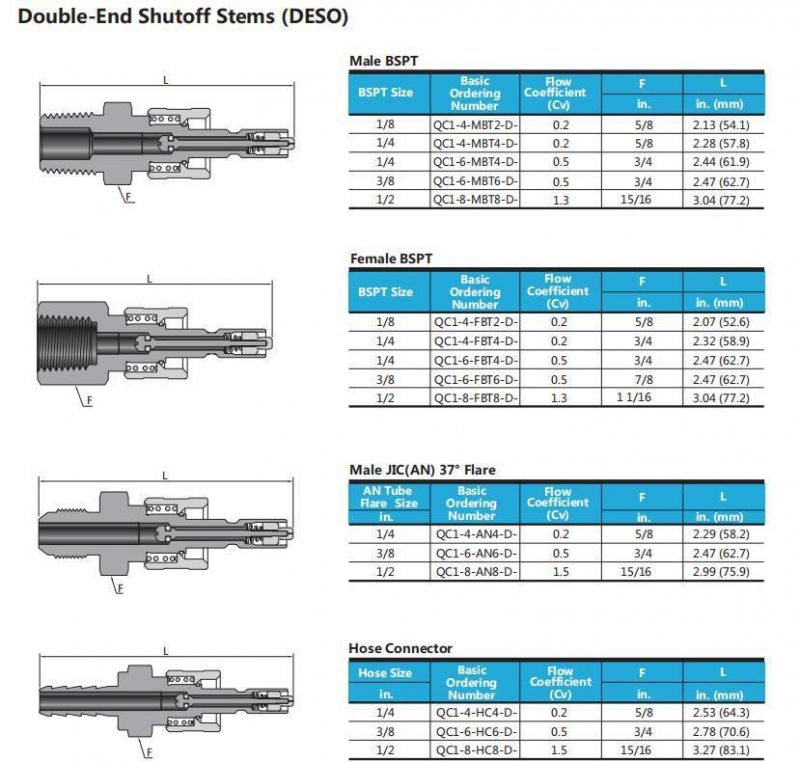

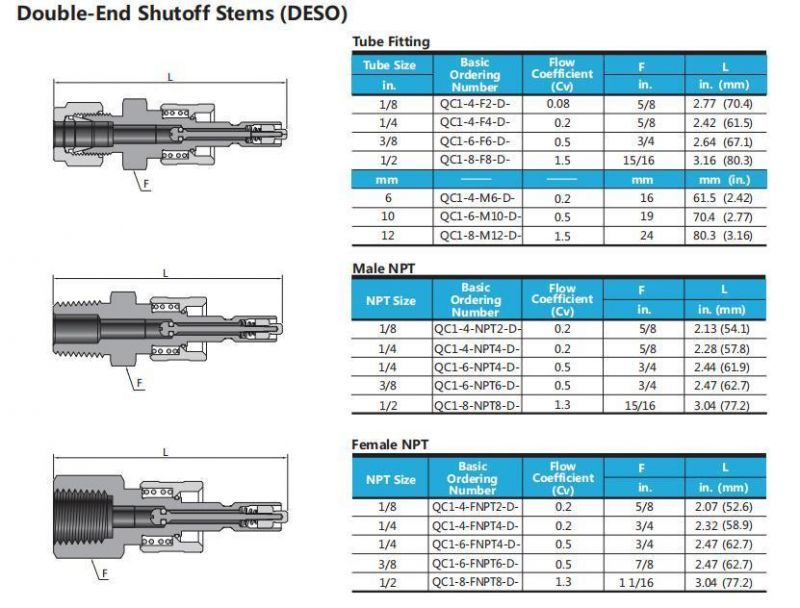

* Single-end shutoff and double-end shutoff stems
* Large number of superior locking balls retains stem
* Interchangeable and intermixable with major
