• Model NO.：SD 1
• Surface Treatment：Phosphating, Black etc.
• Key Word：Nelson Type Shear Connector Weld Stud Manufacturer
• Raw Material：Carbon Steel Swrch15A,Swrch18A,S235j2+C450
• Length：45mm-500mm
• Transport Package：Carton,Pallet, Bags,Pallet, Drums,Pallet
• Specification：10, 13, 16, 19, 22, 25
• Trademark：IKING
• Origin：China
• HS Code：63079000
• Production Capacity：50000,Day

Shear Stud Connector Type SC (AWS D1.1) Dimensions (inch) 1/2-0.015/8-0.013/4-0.0157/8-0.015d5±1/6411-1/41-1/41-3/8h39/329/323/83.8l1±1/162-5.92-7.8742-9.843.15-9.84Burn off0.1250.1870.1870.187FerruleUF13UF16UF19UF22

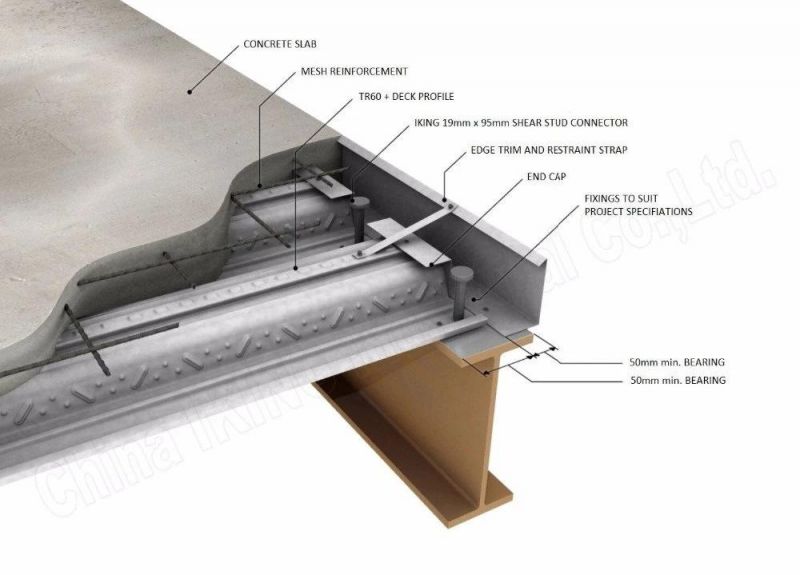

Application

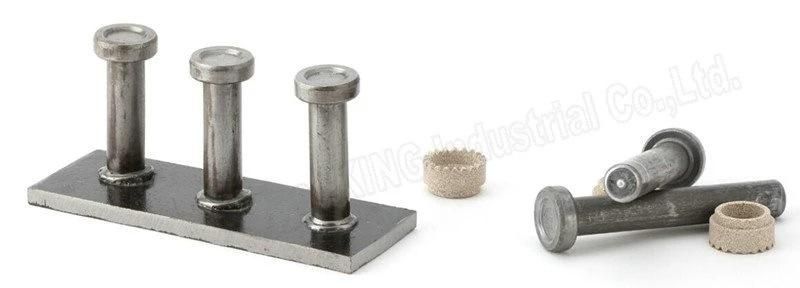

ISO13918 Shear studs with ceramic ferrules

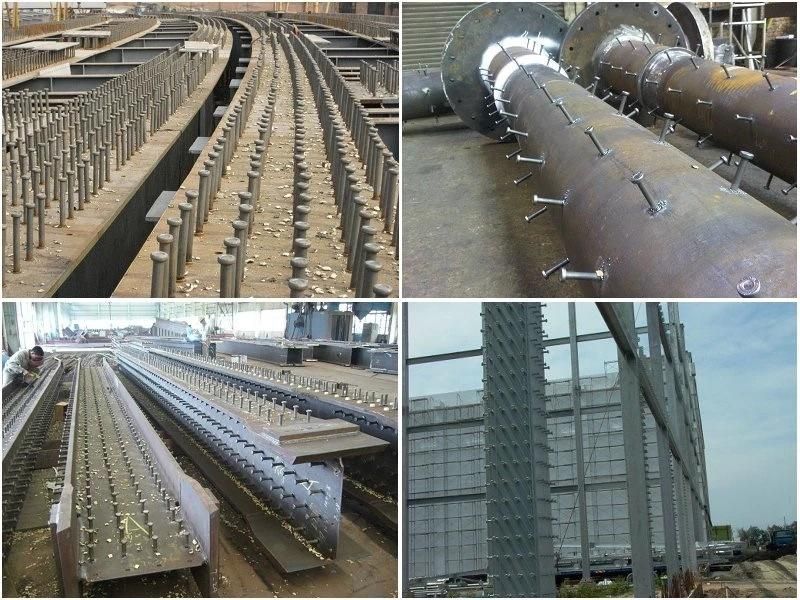

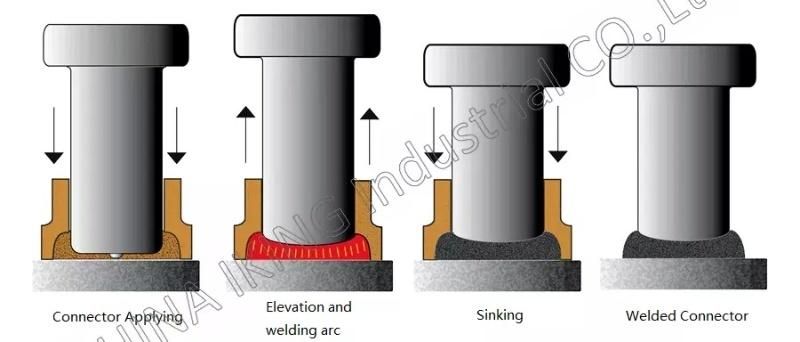

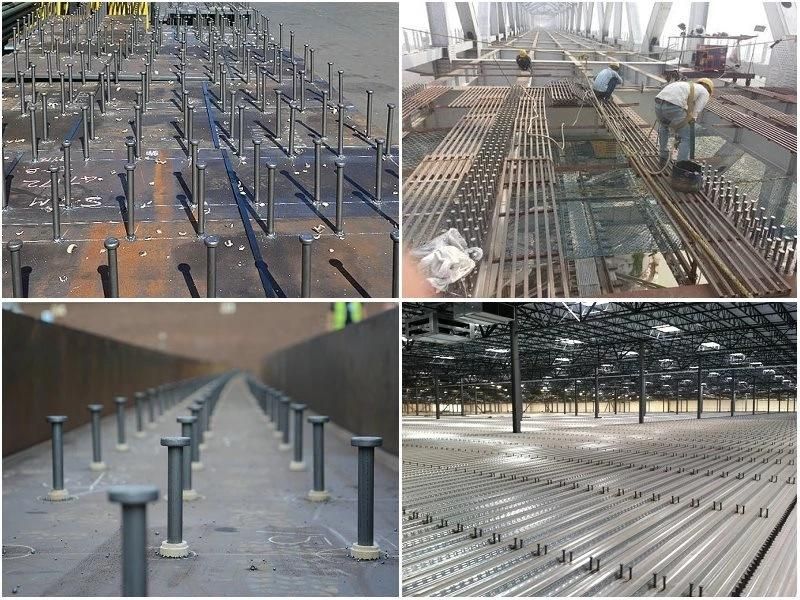

IKING shear connector studs are made of a material suitable to be welded by arc melting.The dimensions and design of the connector are in accordance with the BS - EN ISO13918:2008. Widely used by bridge, steel deck, steel construction etc.




Our Company
China IKING Industrial Co., Ltd

We, China IKING Group, are the manufacture of stud connectors and welding machines, and with over 30 years outstanding experiences in this field, quality products can be supplied with CE, ISO certificate etc. Honorable clients of China IKING includes NELSON STUD (China), SWP (UK), CSCEC etc., and all that successful experience would pave the way for our successful cooperation in the future.

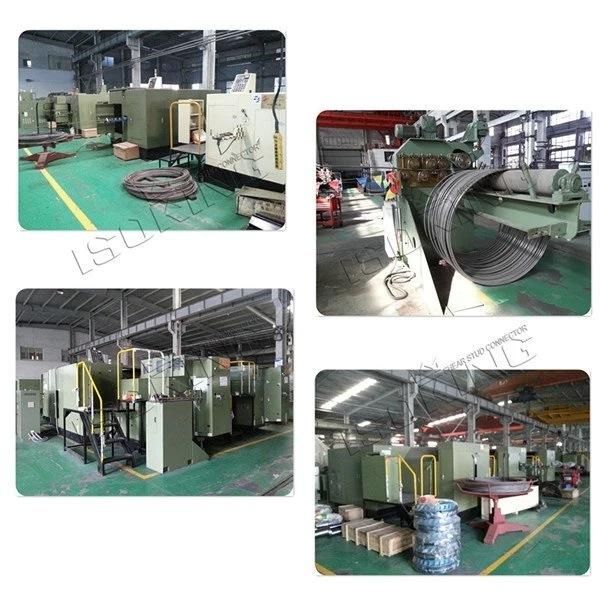

Workshop

1. There're 8 production line for shear connector studs in our workshop.
2. Rapid reaction and delivery arrangement for your order.
3. OEM service is available for our VIP clients.
4. All standards can be satisfied based on specific request.

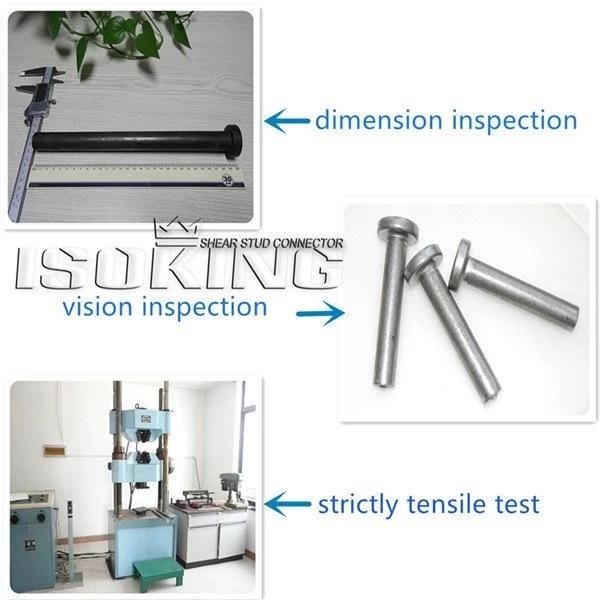

Certificates&Quality

We believe superior products and services are the key that we won great reputation and long-term cooperation from our customers during the past years, each piece of IKING shear stud must be passed strictly IKING quality control system before delivery to our customers.


Packing & Delivery

IKING provides appropriate package for shear stud connector , cartons (lined with plastic bags) & plywood pallets is our standard package; barrels (lined with plastic bags) & plywood pallets based on customer's specific requirements.

Cartons Packages
1. About 25kgs/cartons, 48cartons/pallets.
2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.


FAQ
Why choose our China IKING INDUSTRIAL GROUP shear studs?

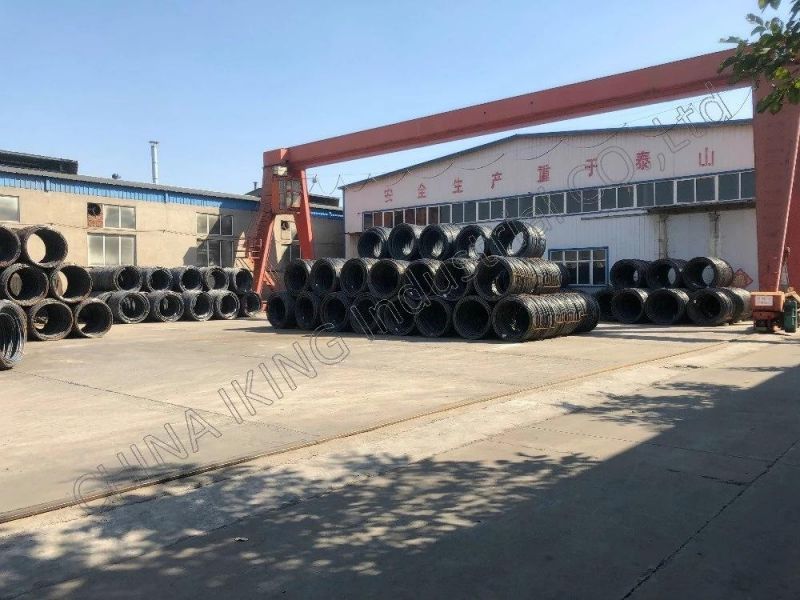

1.We choose the quality mild carbon steel(SWRCH18A) from Xingtai Steel Factory.
2.We do phosphorization pretreatment for the raw material using drawing machine.
3.We purchase the multi-station cold forging machine from the biggest factory in Zhejiang Province to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We use the automatic riveting machine to install aluminum ball on the end.
5.After rust prevention, IKING's shear connector can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
