Fastener & Fitting

Home > Product > Combination & Joint Fittings

Malleable Iron Pipe Clamp Fittings Short Tee 101

Qingdao Fluido Industrial Co., Ltd.
  • Material：Malleable Iron
  • Connection：Push on
  • Surface Treatment：Galvanized
  • Head Type：Round
  • Tensile Strength：>=350MPa
  • Elongation：>=10%

Base Info

  • Model NO.：101
  • Hardness：<=150
  • Size：T-E(21.3-60.3mm)
  • Size 2：a-T(26.9-21.3mm)
  • Type：101 104 125 131 132 135 143
  • Application：Handrail Systems, Guard Rail, Playground and Scaff
  • Screw Material：Stainless Steel
  • Surface Treatment2：Galvanized ,Black
  • Materials：Malleable Iron by Standard ASTM A197
  • Transport Package：in Cartons Then in Plywood Pallet
  • Specification：T-E(21.3-60.3mm)
  • Trademark：Eathu
  • Origin：Shandong, China
  • HS Code：73084000
  • Production Capacity：15000pieces,Month

Description

Material: ASTM A197 Standard Malleable IronScrew material:Stainless SteelSize:T-E(21.3-60.3mm)Surface Treatment:Hot Dip Galvanized
Hot Dip Galvanized+Electric Galvanized
Black
Powder CoatedPacking:Carton and Plywood PalletApplication:Widely used insafety barriers and handrailing systems urniture, sculptures, frameworks, greenhouses, play parks, trolley bays, multi gyms, pull up bars, and etc.Customized:AvailableSample:Sample is for free and takes 7-10 days to prepareSize:

Pipe Clamp Size

Nominal Bore

Outside Diameter

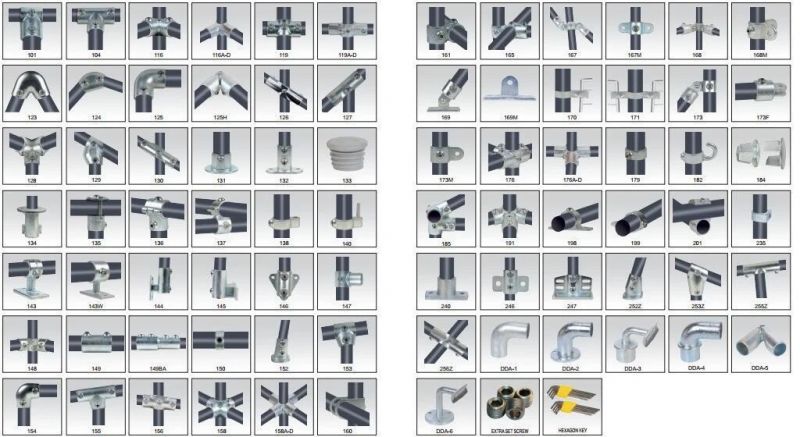

T211/2''21.3mmA273/4''26.9mmB341''33.7mmC421-1/4''42.4mmD481-1/2''48.3mmE602''60.3mm2.Type:
Malleable Iron Pipe Clamp Fittings Short Tee 101Malleable Iron Pipe Clamp Fittings Short Tee 101

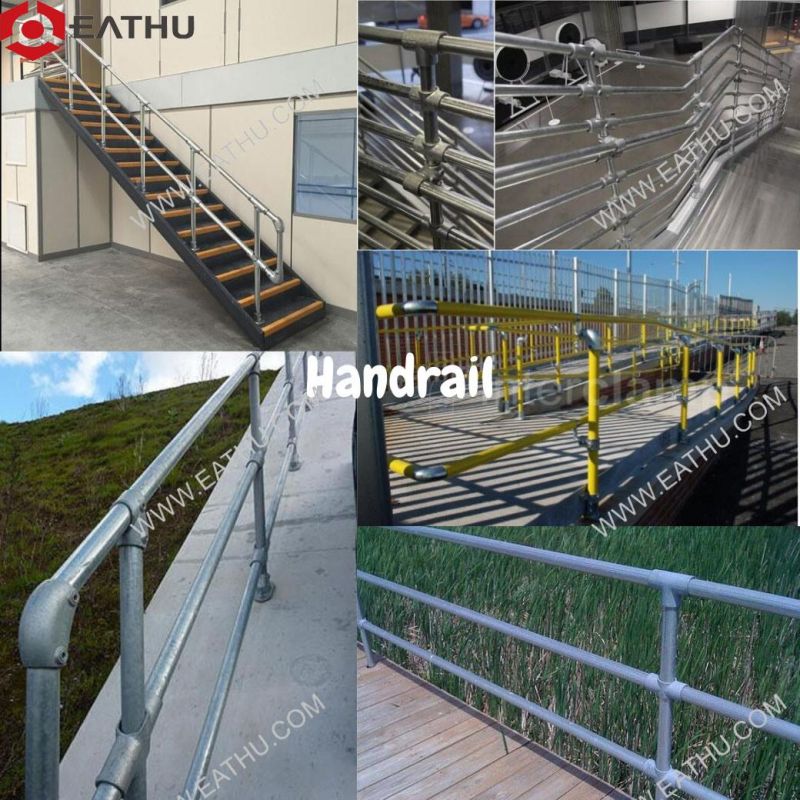

3.Application:
Malleable iron Pipe clamps are widely used for Handrail Systems, Guard Rail, Playground and Scaff.The system securely joins standard sizes of structural steel tube into almost any configuration imaginable.

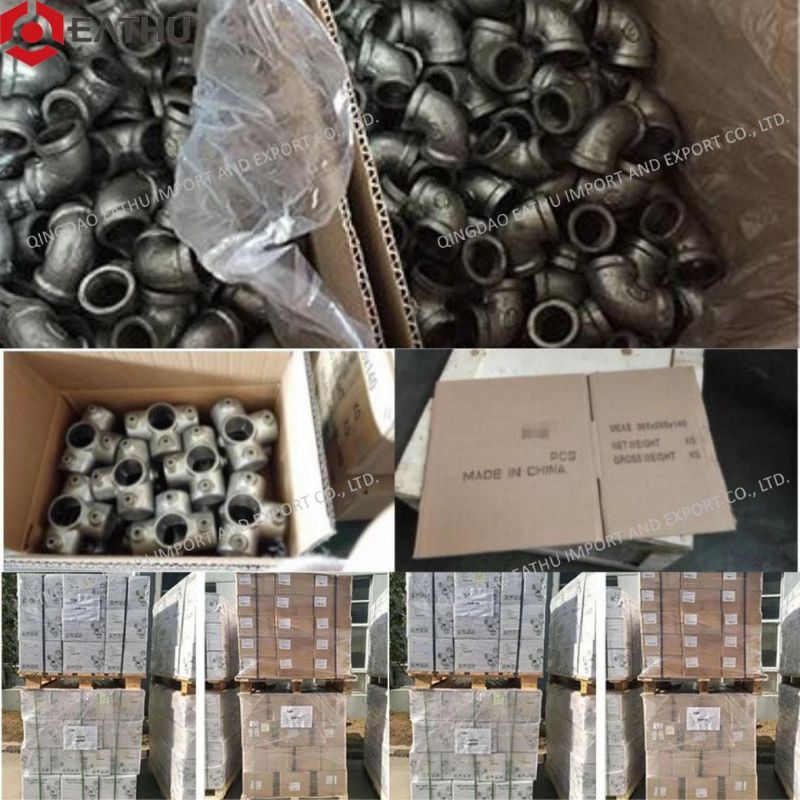

Malleable Iron Pipe Clamp Fittings Short Tee 101Malleable Iron Pipe Clamp Fittings Short Tee 1014.Packing:
Placed in cartons then in plywood Pallets

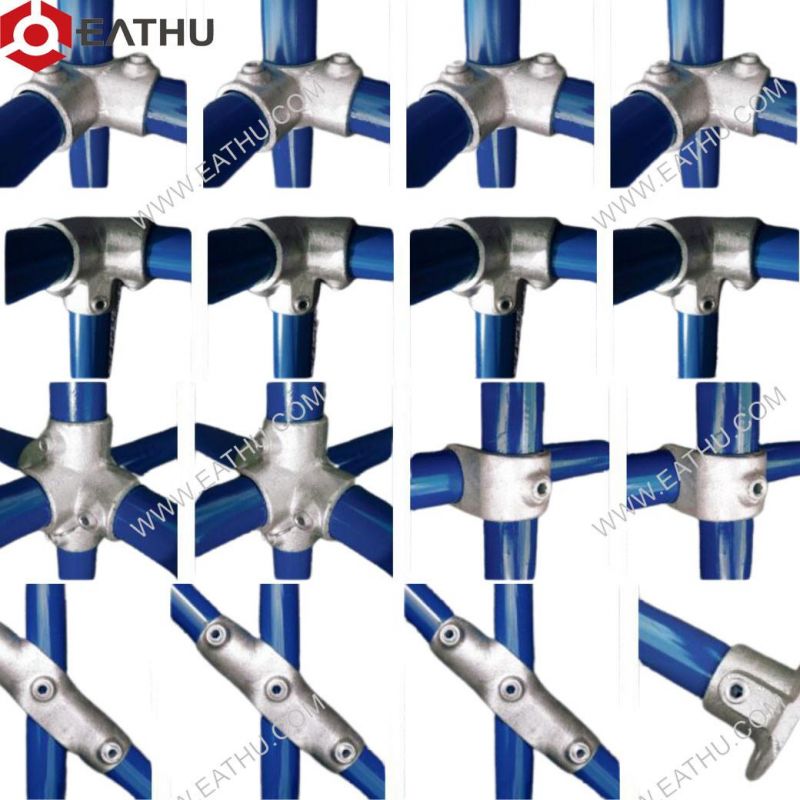

Malleable Iron Pipe Clamp Fittings Short Tee 1015.Installation:
Flexible solutions for all types of safety barriers.
Widest range of safety componets.
No welding,No hot permits required.
No threading or Bolting,so no special tools required.
Cost effective to install as only low skilled workforce required.
Malleable Iron Pipe Clamp Fittings Short Tee 101

6.Certification:

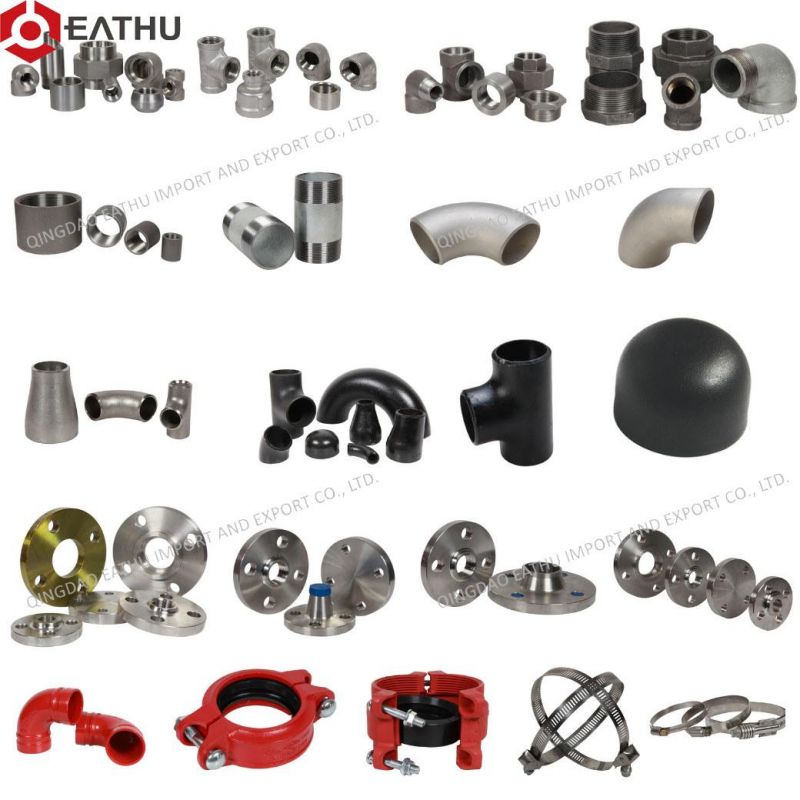

Malleable Iron Pipe Clamp Fittings Short Tee 1017.Product Line:
Malleable Iron Pipe Clamp Fittings Short Tee 1018.Why EATHU
5.1 High Quality Surfacetreatment whatever Hot dip galvanized or black or power coated surface
5.2 Product Consistency:Optimal production techniques and stringent quality controls ensure a reliable and consistent product.
5.3Vibravation Resistance
5.4 Easy Identification:Each fitting is clearly marked with the type & size for ease of identification.
5.5 Stainless Steel Screws:For increased corrosion resistance
