Spill Rail Connector for Renault and Dacia Diesel Injector Return Line
Shijiazhuang Standards Rubber Products Trading Co., Ltd.- Standard：SAE
- Material：Plastic
- Connection：Female
- Surface Treatment：Without Treatment
- Head Type：Round
- Use：Diesel Leak off Pipe
Base Info
- Model NO.：TB-H-038
- Colour：Black
- Transport Package：Carton
- Specification：SAE J2044
- Trademark：Standards
- Origin：Zhejiang, China
- HS Code：3917400000
- Production Capacity：3000PCS,Day
Description
Securing RingPA12 GF30 ARKEMA EVONIK Fuel,Steam,Urea,A/C , Power Steering System PA6/6T GF30 BASF HT Fuel PA66GF 30/35 BASF Fuel Steam O Ring FKM/FVMQ/
HNBR/AEM HUTCHINS ON GMORS Fuel,Steam,Urea,A/C Power Steering System
2.The design and production
Innovative, secure and quickit , Our quick connect fittings made of synthetic material are suitable for most media carrying lines . Be it fuel , oil vapor , water cooling and air carrying lines . We offer the idea means of connection . These quick connectors are specially suited to being matched up with the automotive pipe system
the design and productionof quick connector are strictly accord with SAE J2044-2009 Quick
connect coupling specification for liquid fuel and vapor or emissions systems . If the product does not meet customer needs , we can design and manufacture according to customers requirements . plug-in and sel-locking structure enables connect and disconnect more quick and easier . The space required for the operation is only the width of a finger on both sides . These features ensure quicker connecto can be high-density arrangement and an increase in customer design flexibility
3.Security of quick connector
Quick connector with double sealing rings radial sealing structure , modified rubber o-rings used , mainly for fluid The physics chemistry , custom , anti-aging , corrosion , and swelling ;
outer o-rings are separated by the intermediate spacer ring . Coresponding space on the two
sealing ring , rubber substrate bonding does not occur , the outer synthetic rubber o-rings used , Increased mechanical properties. preventing air aging . Sealing ring and spacer ring through the outer ring of elastic clamping device securely fastened in Shell will not result in phenomena such as ring falls of , and shift . Great seal security is guaranteed
4.Working environment of quick connector
Gasoline and diesel fuel delivery systems , Ethanol , methanol or natural gas delivery systems or their vapor venting or evaporative emission control systems
5.Quick Connector advantages
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
6.Quick Connector Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return lines
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control lines
7.The Type of Quick Connector

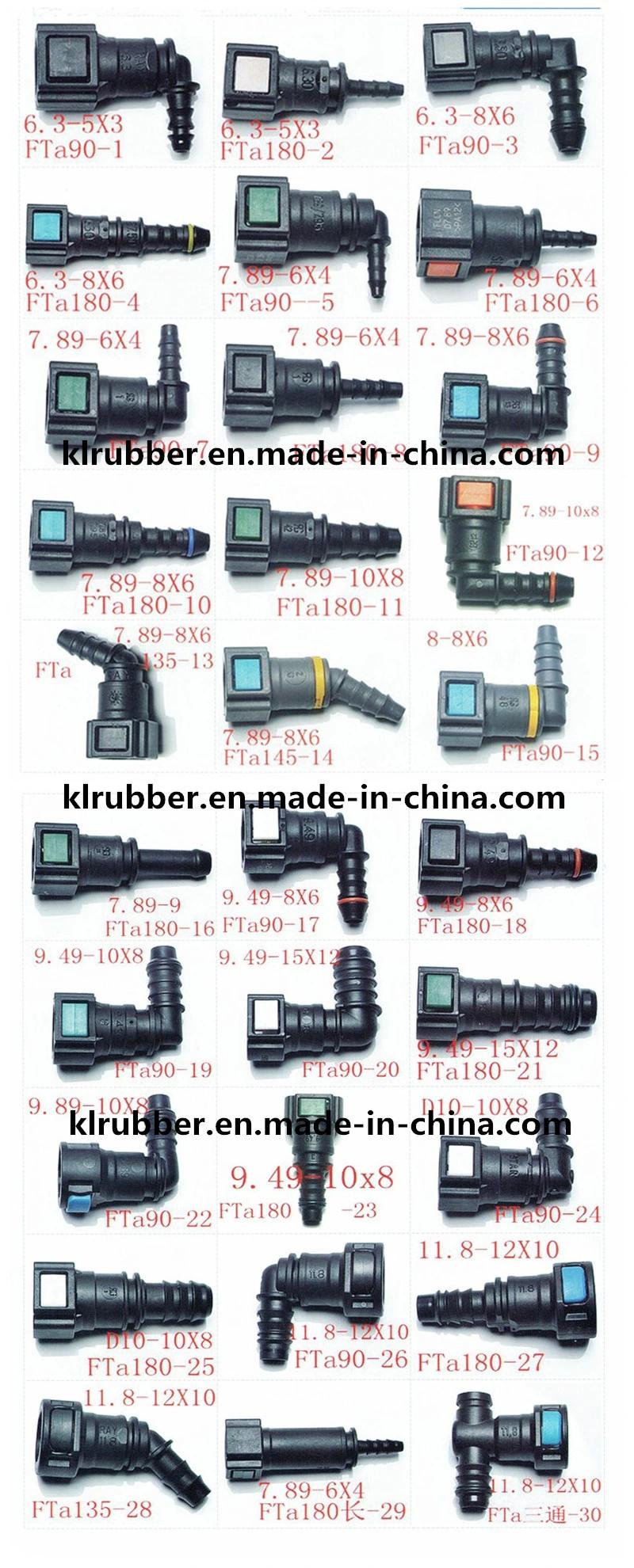

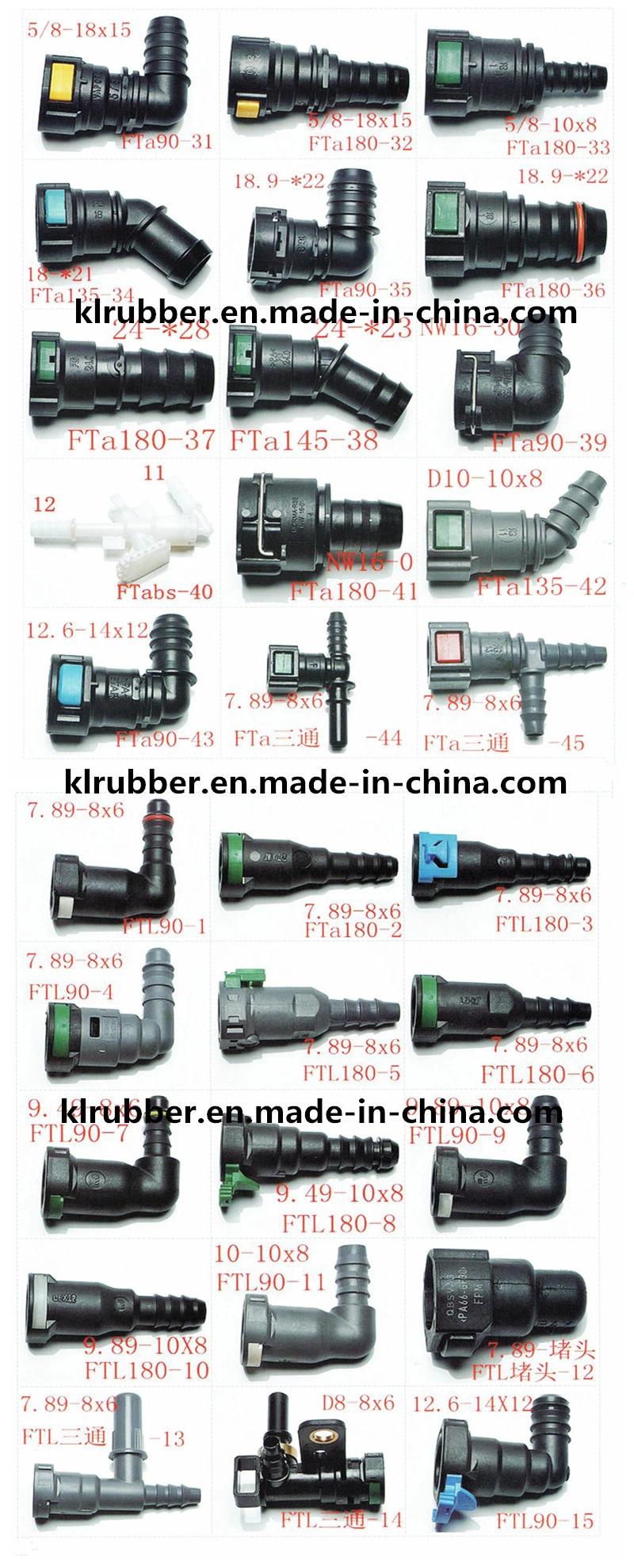

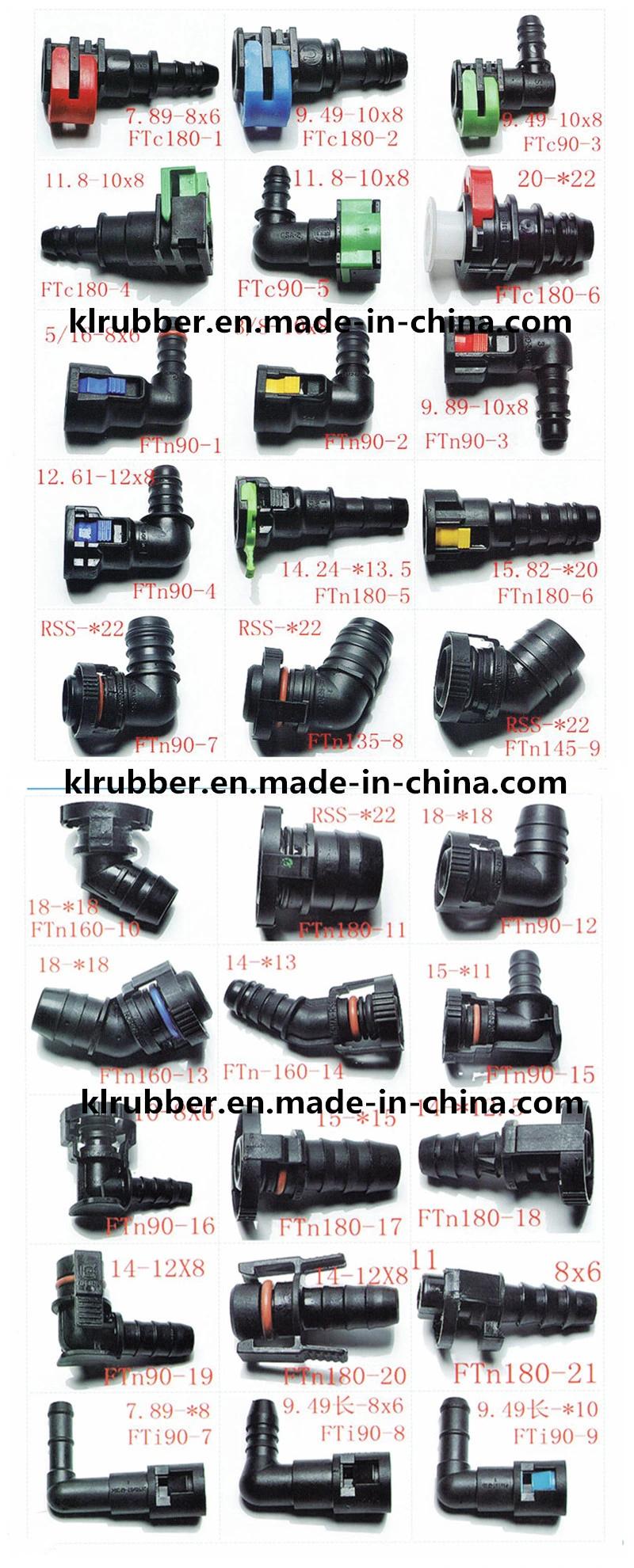

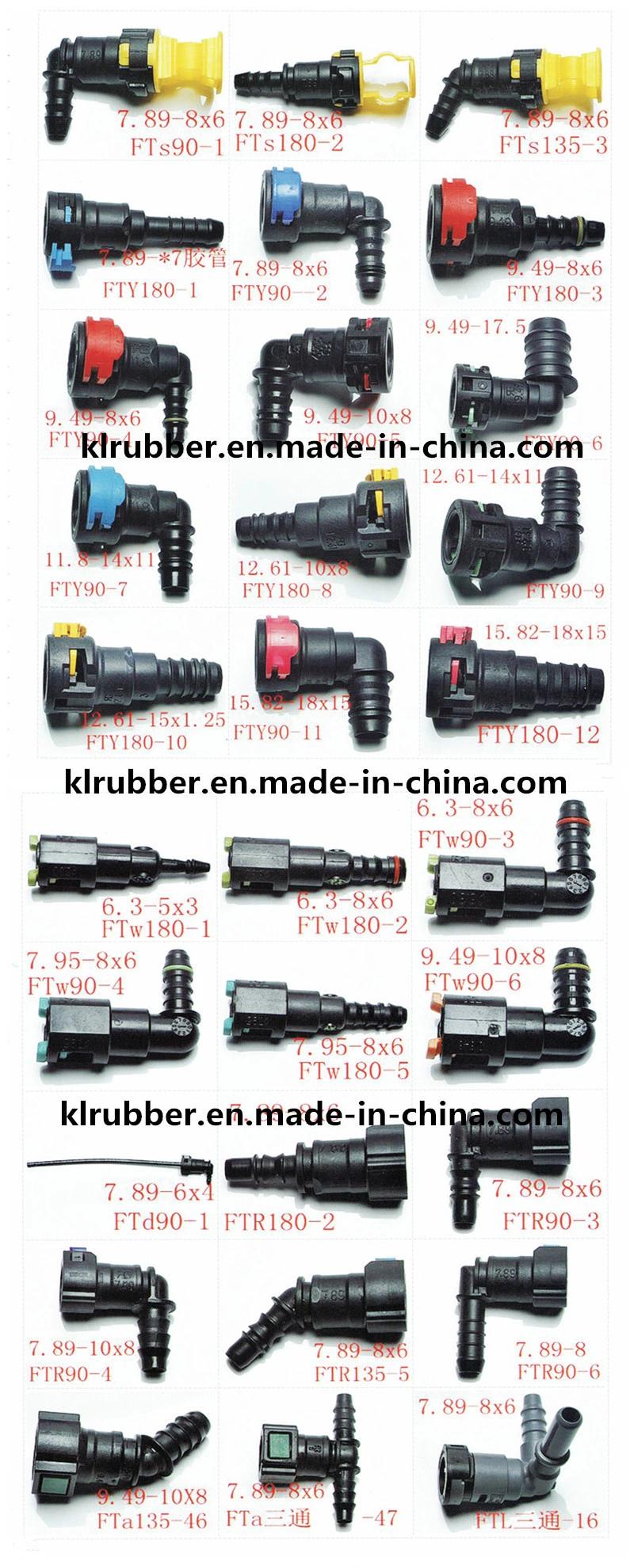

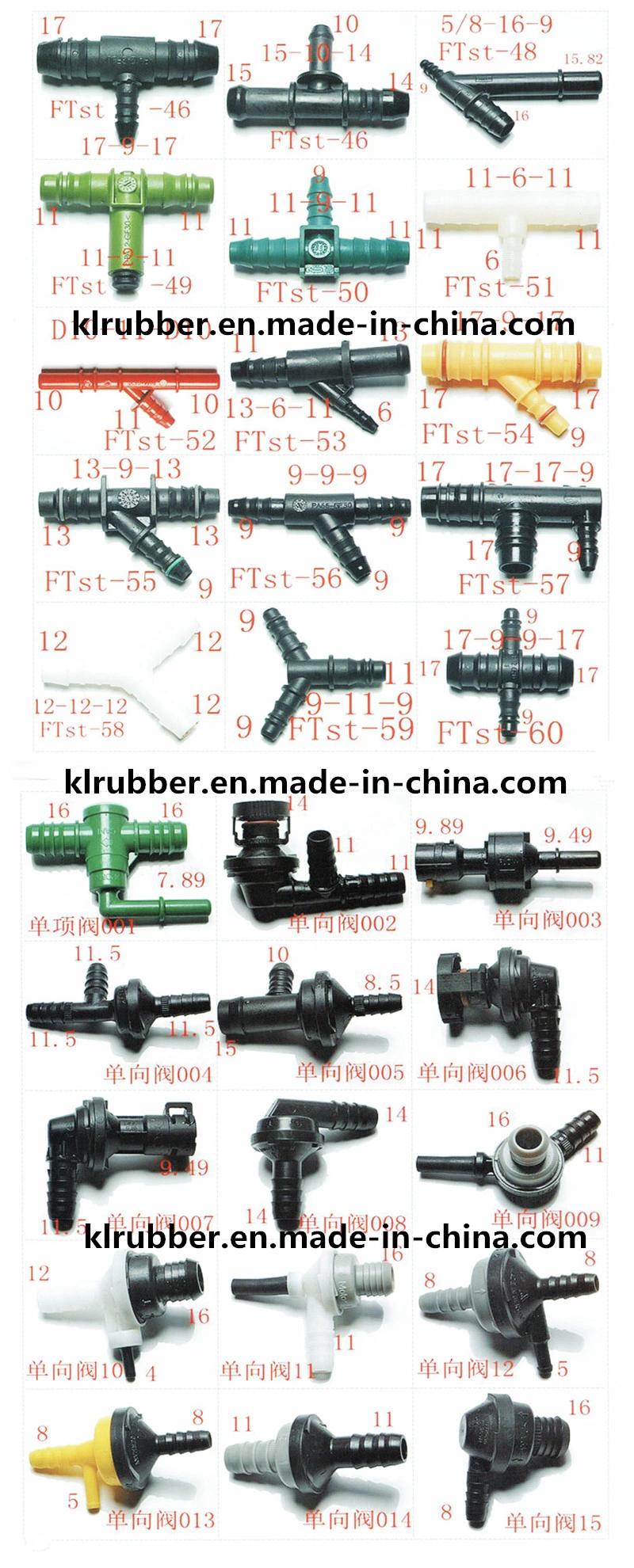

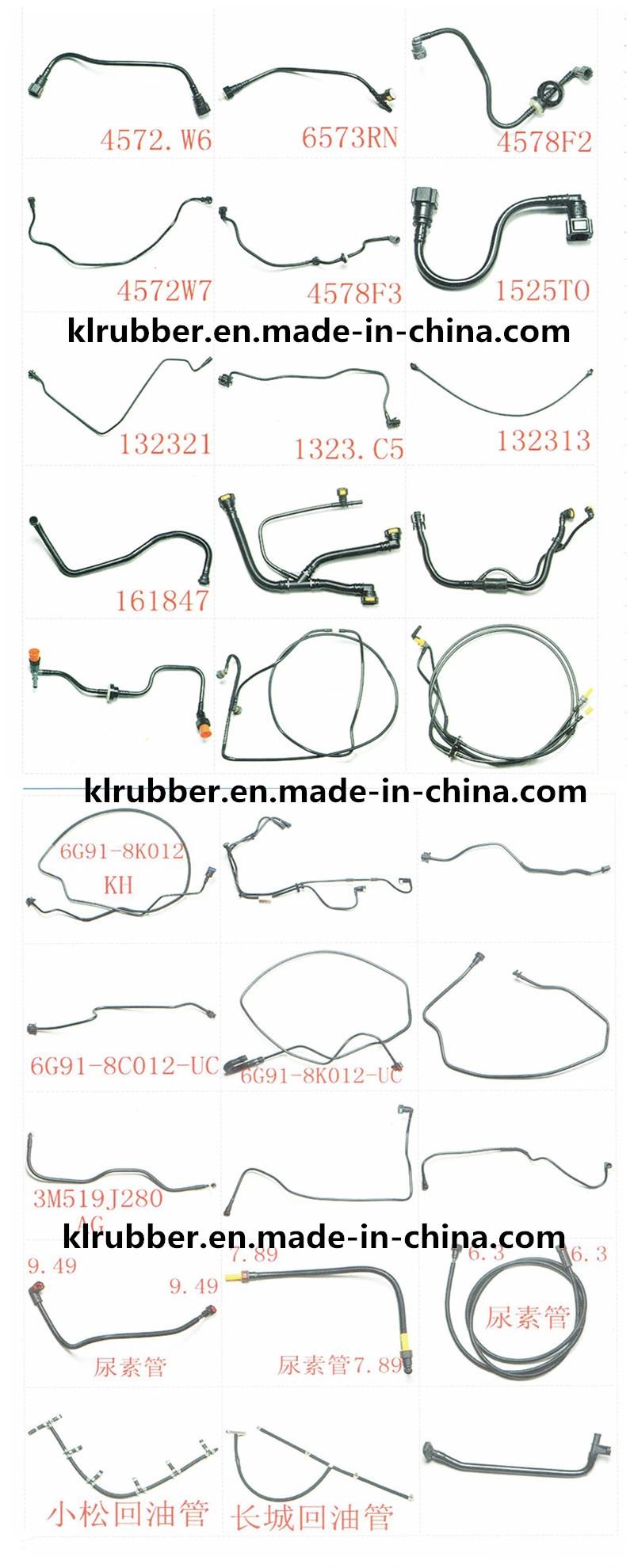

Our Fuel Line Quick Connector Catalog
Contact us:
Miss Vivien
Export Manager
We sincerely welcome partners all over the world to visit us for win-win cooperation!
Our website is : klrubber.en.made-in-china.com
HNBR/AEM
2.The design and production
Innovative, secure and quickit , Our quick connect fittings made of synthetic material are suitable for most media carrying lines . Be it fuel , oil vapor , water cooling and air carrying lines . We offer the idea means of connection . These quick connectors are specially suited to being matched up with the automotive pipe system
the design and productionof quick connector are strictly accord with SAE J2044-2009 Quick
connect coupling specification for liquid fuel and vapor or emissions systems . If the product does not meet customer needs , we can design and manufacture according to customers requirements . plug-in and sel-locking structure enables connect and disconnect more quick and easier . The space required for the operation is only the width of a finger on both sides . These features ensure quicker connecto can be high-density arrangement and an increase in customer design flexibility
3.Security of quick connector
Quick connector with double sealing rings radial sealing structure , modified rubber o-rings used , mainly for fluid The physics chemistry , custom , anti-aging , corrosion , and swelling ;
outer o-rings are separated by the intermediate spacer ring . Coresponding space on the two
sealing ring , rubber substrate bonding does not occur , the outer synthetic rubber o-rings used , Increased mechanical properties. preventing air aging . Sealing ring and spacer ring through the outer ring of elastic clamping device securely fastened in Shell will not result in phenomena such as ring falls of , and shift . Great seal security is guaranteed
4.Working environment of quick connector
Gasoline and diesel fuel delivery systems , Ethanol , methanol or natural gas delivery systems or their vapor venting or evaporative emission control systems
| Working pressure | 5bar (72psi) |
| Working pressure in Vacuum | -0.55bar (-7.2psi) |
| Working temperature | -40-115ºC , short time 150ºC |
5.Quick Connector advantages
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
6.Quick Connector Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return lines
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control lines
7.The Type of Quick Connector
| 7.1 button | Two button | One button |
| 7.2 fir tree | The fir tree endform with or without o-ring Connect nylon pipe - pipe size from 3 . 35X4 . 5 to 14 . 35X16 35 | Endform with or without rib lines Connect rubber hose ,hose size from ID 3 to 16mm |
Our Fuel Line Quick Connector Catalog
Contact us:Miss Vivien
Export Manager
We sincerely welcome partners all over the world to visit us for win-win cooperation!
Our website is : klrubber.en.made-in-china.com
