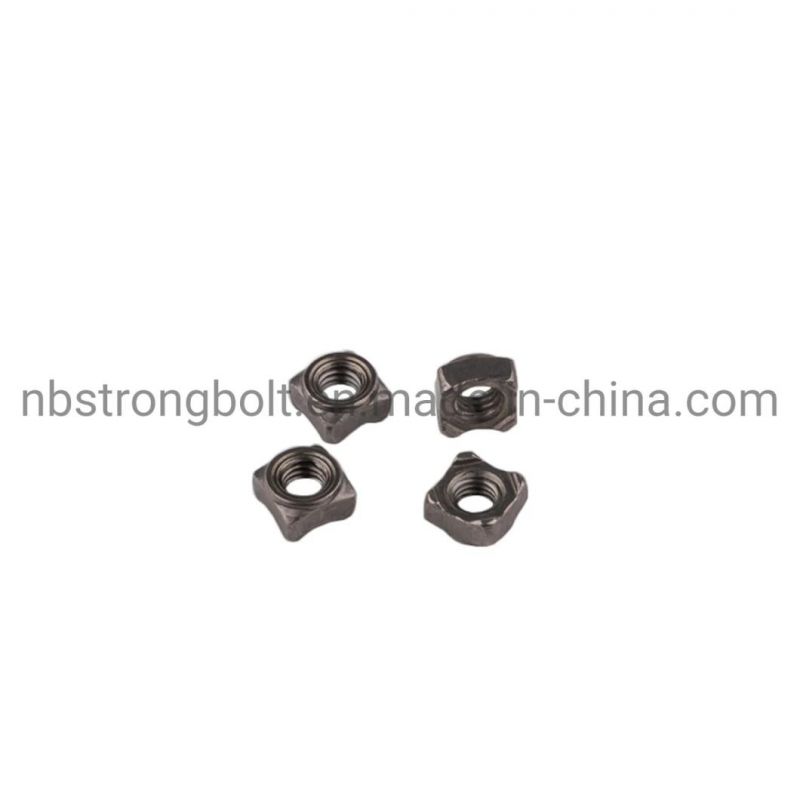

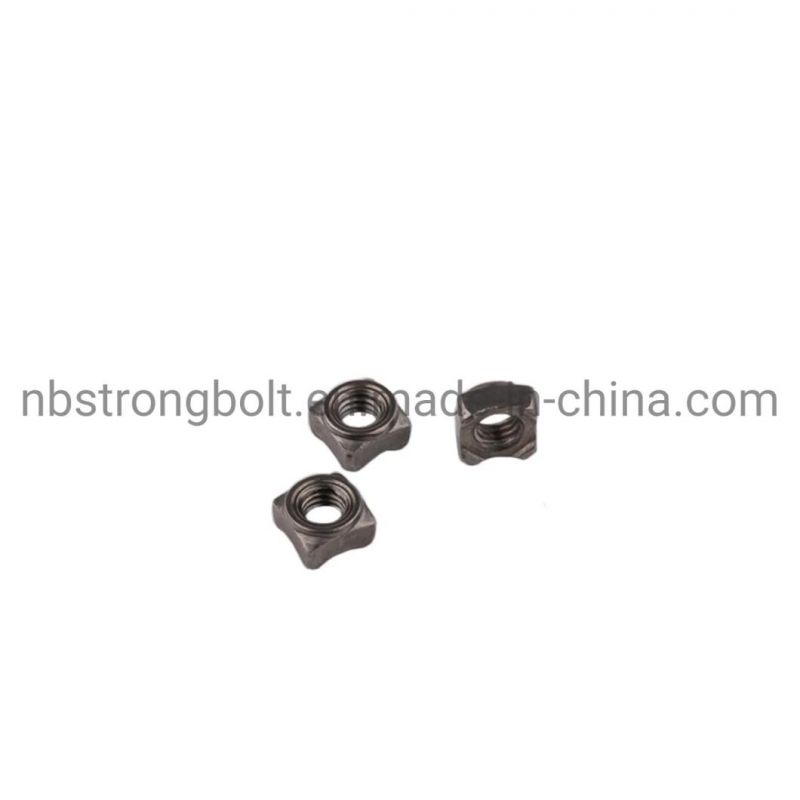

DIN928 Square Weld Nut S|8 Plain M6
Ningbo Strong Bolt Trade Co., Ltd.- Material：Carbon Steel
- Type：Hexagon Head
- Connection：Common Bolt
- Head Style：Hex Socket Head
- Standard：DIN, ANSI, GB, JIS, GOST, BSW
- Grade：4.8&5.8&6.8&8.8&10.9&12.9
Base Info
- Model NO.：DIN928 Plain M6
- Process：Cold Forging,Hot Forging,Machining
- Transport Package：Small Box & Bulk & Customizing
- Specification：M3-M60
- Trademark：STRONG BOLT
- Origin：Ningbo, China
- HS Code：7318150000
- Production Capacity：2500tons,Year
Description
Basic Info.
Model NO. DIN928 Plain M6 Process Cold Forging,Hot Forging,Machining Transport Package Small Box & Bulk & Customizing Specification M3-M60 Trademark STRONG BOLT Origin Ningbo, China HS Code 7318150000 Production Capacity 2500tons/YearProduct Description

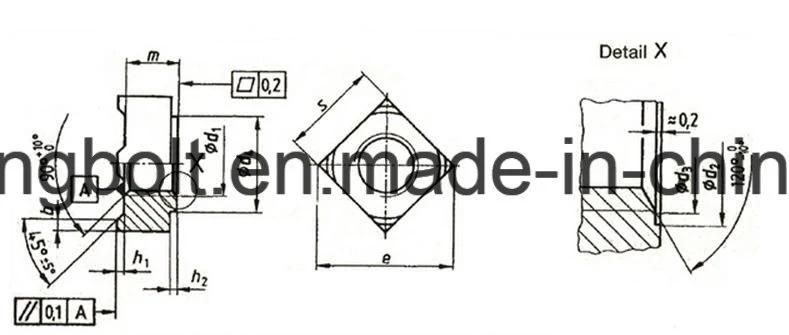

| Item | DIN928 Square Weld Nuts S|8 Plain |
| Class | 4 & 5 & 6 & 8 & 10 |
| Material | Carbon Steel ,Alloy Steel,Stainless Steel and Copper |
| Surface Treatment | Black, Zinc Plated(ZP), Yellow Zinc Plated (YZP)and Hot DIP Galvanizing(H. D. G. ), Dacromet, Nickel Plated, Brass Plated. |
| Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| Pitch | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 |
| e(min) | 8.79 | 11.05 | 14.38 | 18.90 | 21.10 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.20 | 50.85 | 55.37 | 60.79 | 66.44 |
| mw(min) | 2.96 | 3.76 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 | 13.52 | 14.16 | 16.56 | 18.16 | 19.76 | 21.82 | 23.52 |
| S(max) | 8.00 | 10.00 | 13.00 | 17.00 | 19.00 | 22.00 | 24.00 | 27.00 | 30.00 | 32.00 | 36.00 | 41.00 | 46.00 | 50.00 | 55.00 | 60.00 |
| S(min) | 7.78 | 9.78 | 12.73 | 16.73 | 18.73 | 21.67 | 23.67 | 26.16 | 29.16 | 31.00 | 35.00 | 40.00 | 45.00 | 49.00 | 53.80 | 58.80 |
| m(max) | 4.00 | 5.00 | 6.50 | 8.00 | 10.00 | 11.00 | 13.00 | 15.00 | 16.00 | 18.00 | 19.00 | 22.00 | 24.00 | 26.00 | 29.00 | 31.00 |
| m(min) | 3.70 | 4.70 | 6.14 | 7.64 | 9.64 | 10.30 | 12.30 | 14.30 | 14.90 | 16.90 | 17.70 | 20.70 | 22.70 | 24.70 | 27.40 | 29.40 |
