CNC Machined Hardened Steel Pivot Pin for The Automotive Industrial
HANGZHOU WENQI MACHINERY CO., LTD.- Material：Alloy
- Surface Finishing：Polish Grind
- Certification：ISO
- Customized：Customized
- Delivery Time：30 Days
- Transport Package：Standard Export Packing
Base Info
- Model NO.：4x13.5
- Specification：D6xL28.3
- Trademark：WQ
- Origin：Hangzhou, China
- HS Code：84829100
- Production Capacity：20000000,Month
Description
Basic Info.
Model NO. 4x13.5 Specification D6xL28.3 Trademark WQ Origin Hangzhou, China HS Code 84829100 Production Capacity 20000000/MonthProduct Description

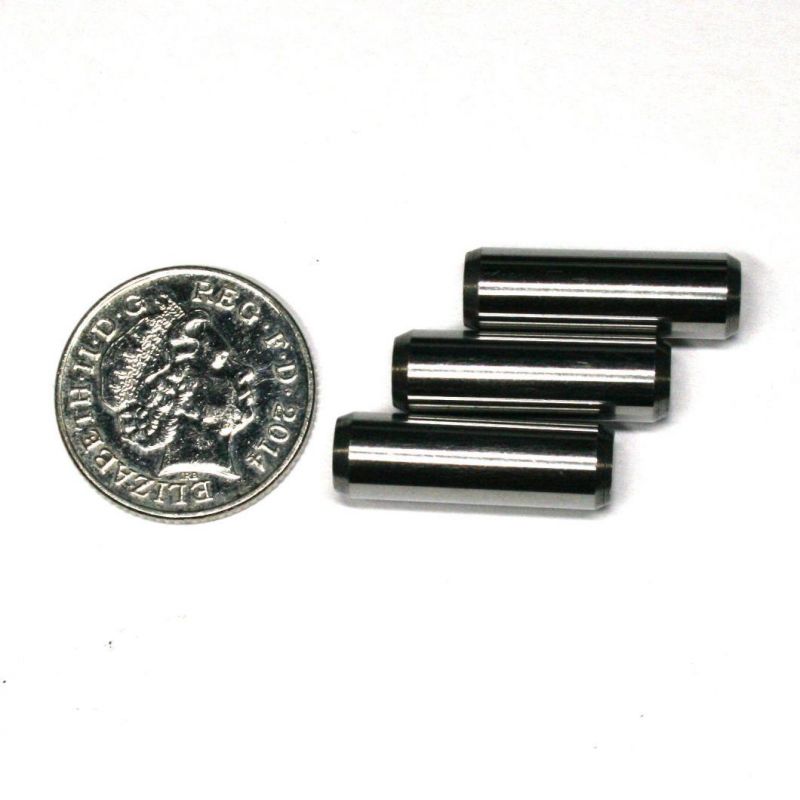

| Product name: | Dowel Pins |
| Diameter: | 1.5mm ~ 20mm |
| Length: | 2.5mm ~ 100mm |
| Material: | GCr15 / 100Cr6 / AISI52100 / SUJ2 or stainless steel |
| Hardness: | HRC 58-62, Stainless steel hardened or unhardened according to customer's requirement |
| Application: | · electronic production/pisitioning · electronic tools · Hinge · linear slide · directional valve · shafts, axles |
| Packing: | Plastic bag, (paper box), carton, plywood pallet |
| Delivery time: | Normally about 30 days, depends on quantity |
| Selection: | G1, G2, G3, and G5 |
| Quality standard: | DIN6325/DIN7/ISO2338 |
| Product name: | Needle Rollers |
| Diameter: | 0.8mm ~ 7mm |
| Length: | 5.8mm ~ 49.8mm |
| Material: | GCr15 / 100Cr6 / AISI52100 / SUJ2 |
| Hardness: | HRC 58-65 for GCr15 |
| Application: | · needle roller bearing, cardan joint · hinge applications · linear slide · directional valve · shafts, axles |
| Packing: | Plastic bag, (paper box), carton, plywood pallet |
| Delivery time: | Normally about 30 days, depends on quantity |
| Selection: | G1, G2, G3, and G5 |
| Quality standard: | DIN5402 |
