• Connection Type：Mpf
• Cleaning Process：Standard Cleaning and Packaging (Cp-01)
• Certificate：ISO9001;ISO14001&45001;ABS;CE
• Connection Size：1,8 to 1 in
• Max. Working Pressure：20000 Psi (1379 Bar)
• Working Temperature：-252ºC to 649ºC
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：5000 PCS Per Month

Basic Info.

Connection Type Mpf Cleaning Process Standard Cleaning and Packaging (Cp-01) Certificate ISO9001;ISO14001&45001;ABS;CE Connection Size 1/8 to 1 in Max. Working Pressure 20000 Psi (1379 Bar) Working Temperature -252ºC to 649ºC Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 5000 PCS Per Month

Product Description

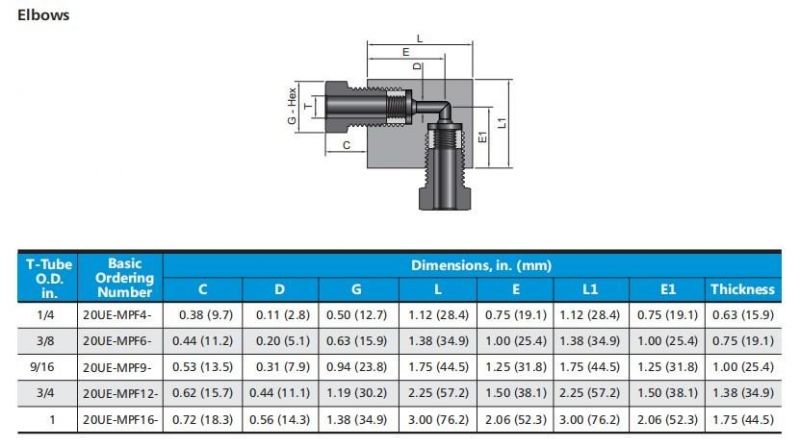

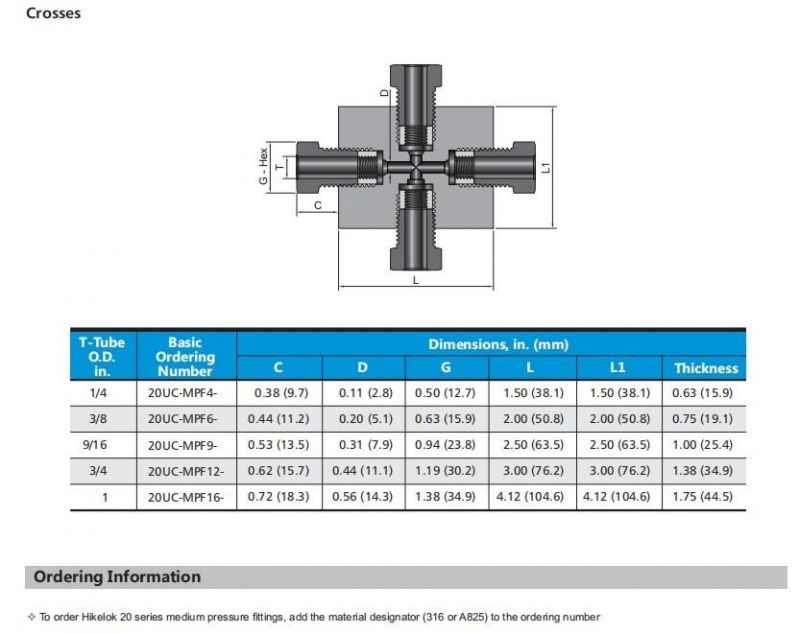

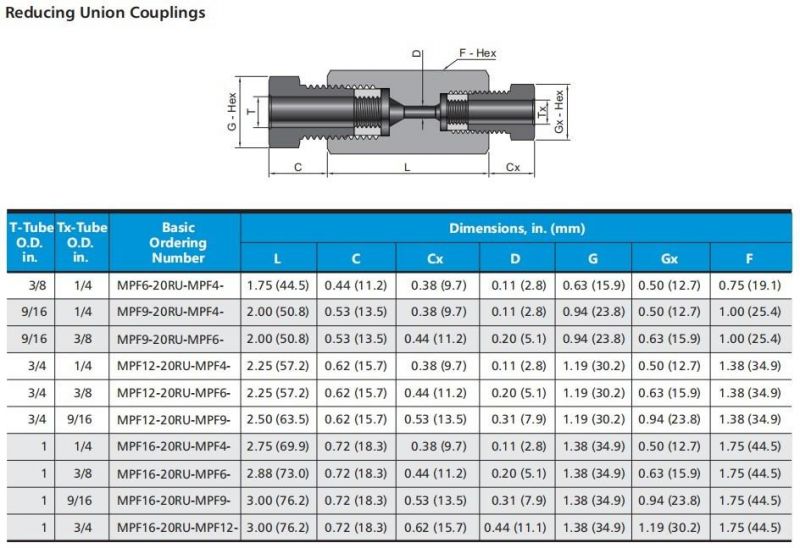

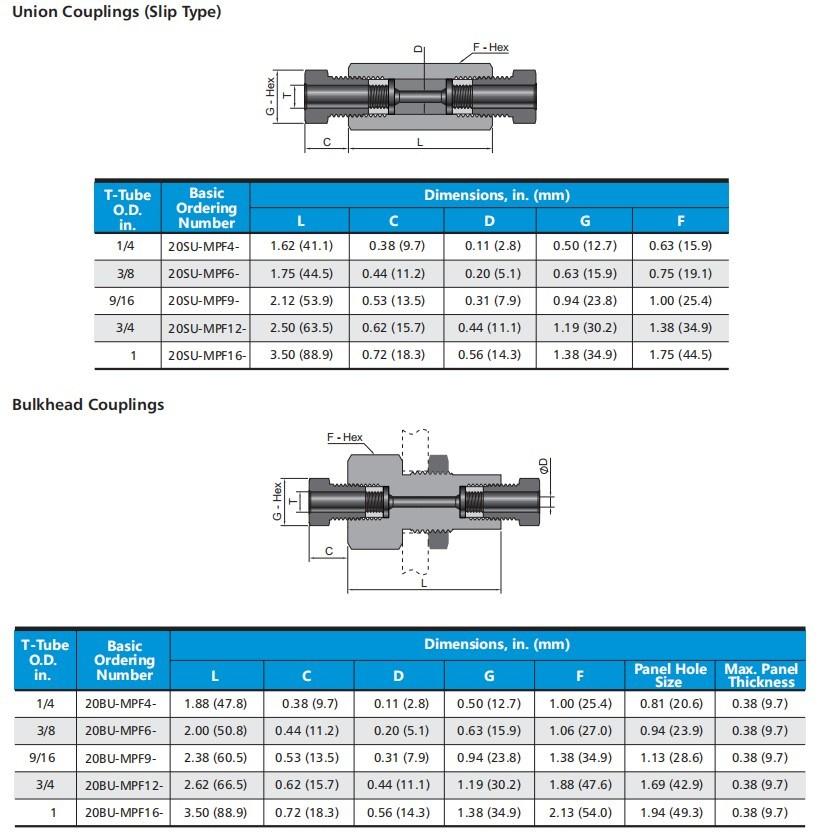

Stainless Steel Ultra-High Pressure 20000 PSI Tube Pipe Fittings

Features:

Coned-and-Threaded Connection

Available sizes are 1/4, 3/8, 9/16, 3/4, and 1 in

Working temperature from -423 to 1200 (-252 to 649 )

Special 316 stainless steel and Alloy 826 material

Anti-vibration collet gland assembly sizes from 1/4 to 1 in. (6.35 to 25.4 mm)

Moving the stress concentration back to the unthreaded part of the tubing and providing a wedge-typegripping action

Completely interchangeable with standard Hikelok 20 series medium pressure connections

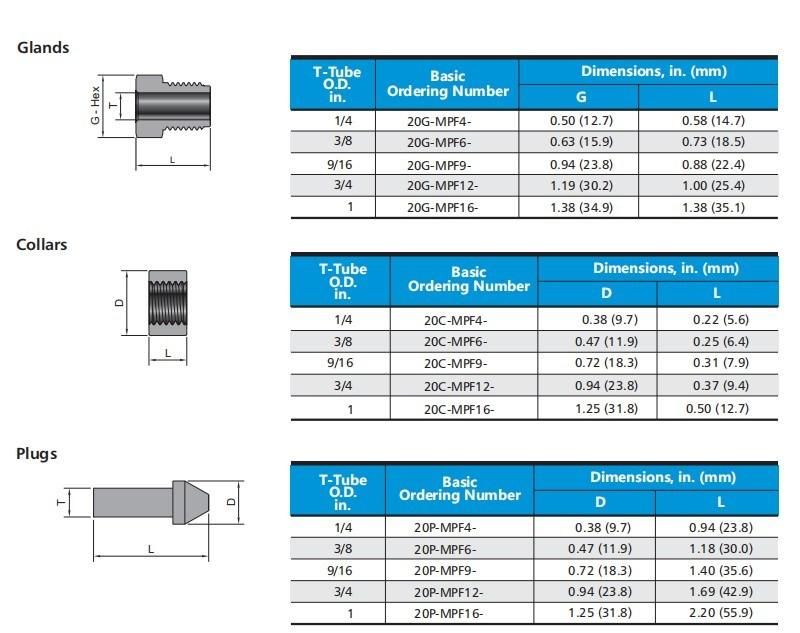

Anti-vibration collet gland assembly strengthens the entire structure

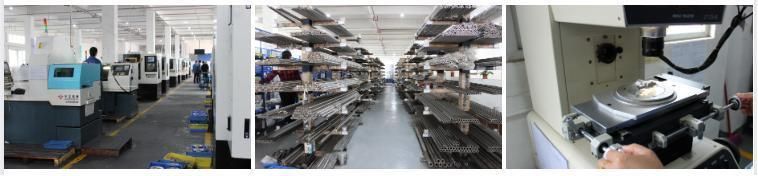

Company Introduce:




Introduction of Hikelok® Brand 1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.

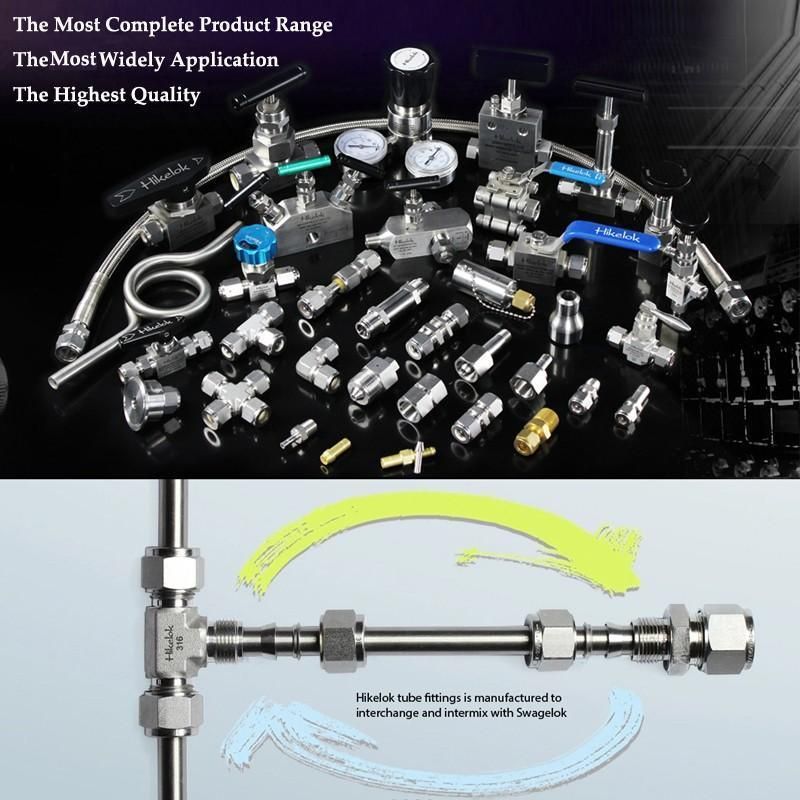

4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE



Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
