• Application：Machinery, Chemical Industry, Environmental, Building
• Finish：Color-Zinc Plated
• Transport Package：Bag and Foam
• Specification：as customer require
• Trademark：JINLV
• Origin：Shanghai

Basic Info.

Application Machinery, Chemical Industry, Environmental, Building Finish Color-Zinc Plated Transport Package Bag and Foam Specification as customer require Trademark JINLV Origin Shanghai

Product Description

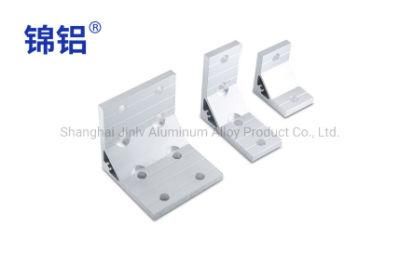

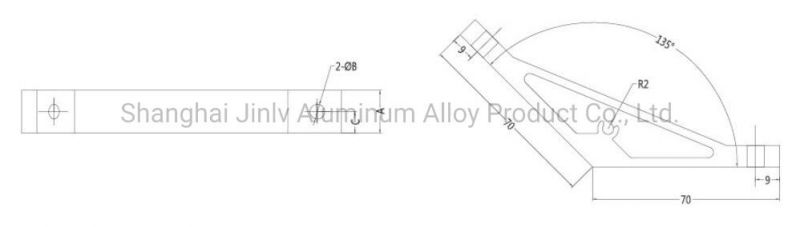

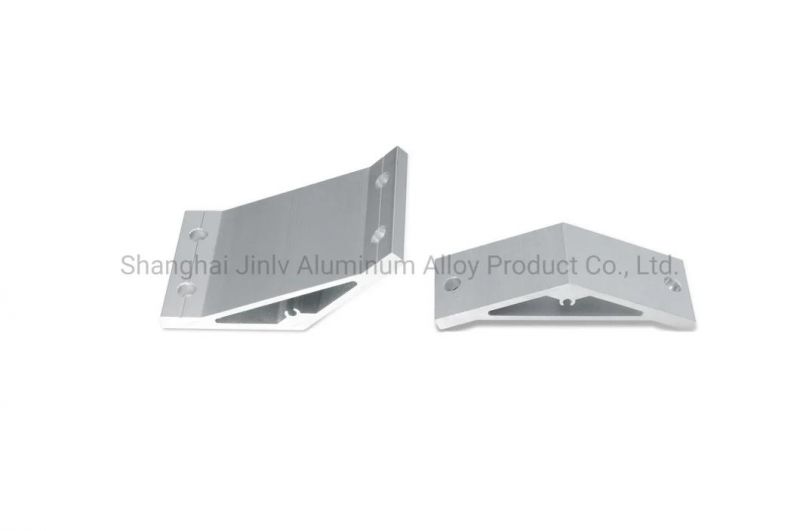

RIGHT ANGLE BRACKET

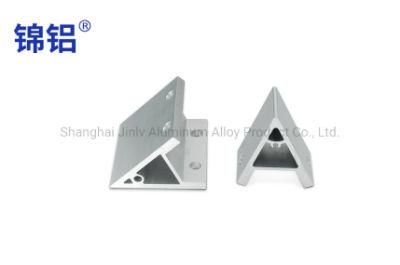

The 135 degree angle bracket is formed by cutting the material section from the extruded profile and drilling. The surface is anodized with silver and white (the end face is not oxidized), and the connection strength is high.Good flexibility and general performance, easy to install,mainly use profiles 135 degree connect.

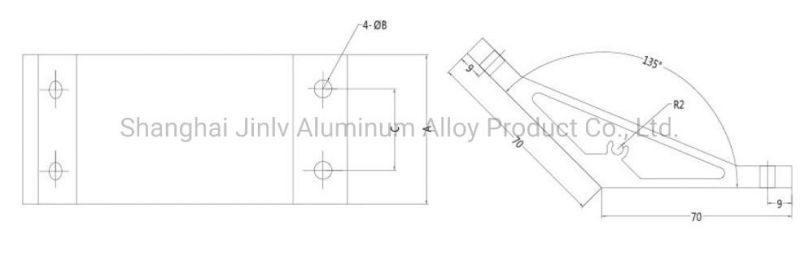

NO.	model	A	B	C	Order number
1	2020	18	5.5	8	2020-135degree support
2	3030	27	6.5	13.5	2020-135degree support
3	3535	30	8.5	15	2020-135degree support
4	4040	35	6.5	17.5	2020-135degree support
5	4545	40	8.5	20	2020-135degree support
6	5050	45	8.5	22.5	2020-135degree support



NO.	model	A	B	C	Order number
1	6060	55	6.5	30	6080-135degree support
2	8080	75	6.5	40	8080-135degree support
3	9090	85	8.5	45	9090-135degree support
4	100100	92	8.5	50	10100-135degree support


Who we are:
We are profesional one-stop factory for aluminum extrusion products. Our production capabilities include alloying, tooling manufacturing, Aluminum profiles extrusion, precision CNC machining, metal stamping, welding, finishing and assembly.

What we have:

1. Perfessional technology Team
2. High-precision machines
3. Perfessional sales and service team

What can we do for you:

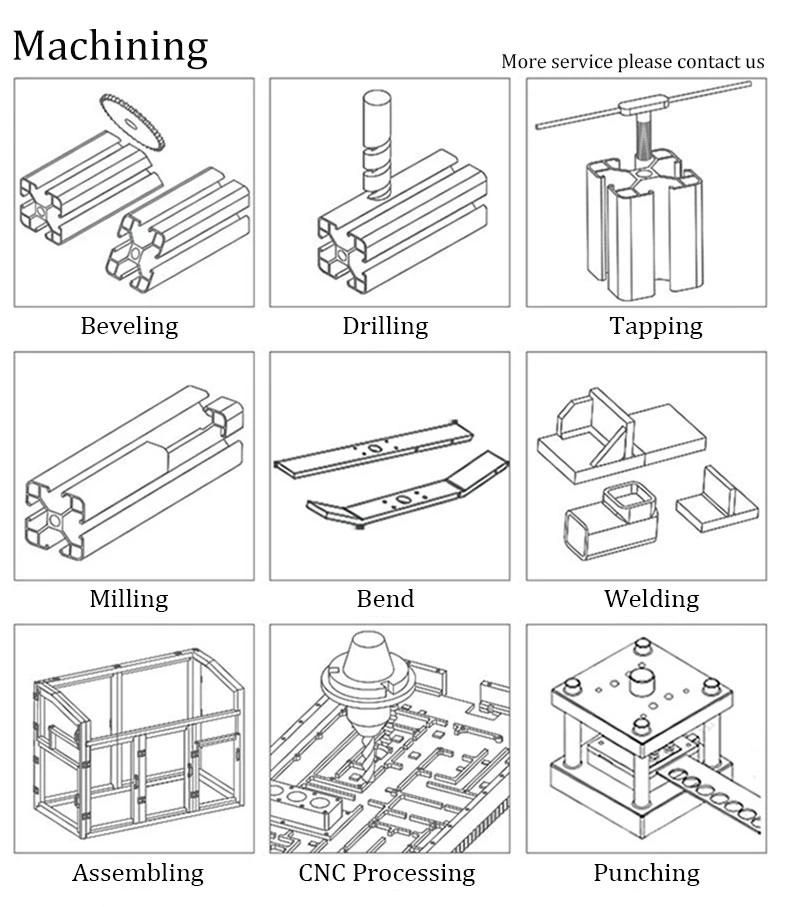

We design and manufacture profiles of all sizes. We customize our extrusions according to your specific requirements by cutting, punching, drilling, chamfering, bending, stamping, CNC milling and lathing. You can choose from a variety of surface treatments, including mirror polishing, sand blasting, brushing, chrome coating, conventional anodizing with or without color, hard anodizing, powder coating, painting and silkscreen printing.

So we are your best Choose:

1. First hand factory price
2. Effective technology support and sales support
3. Active delivery time
4. Good quality

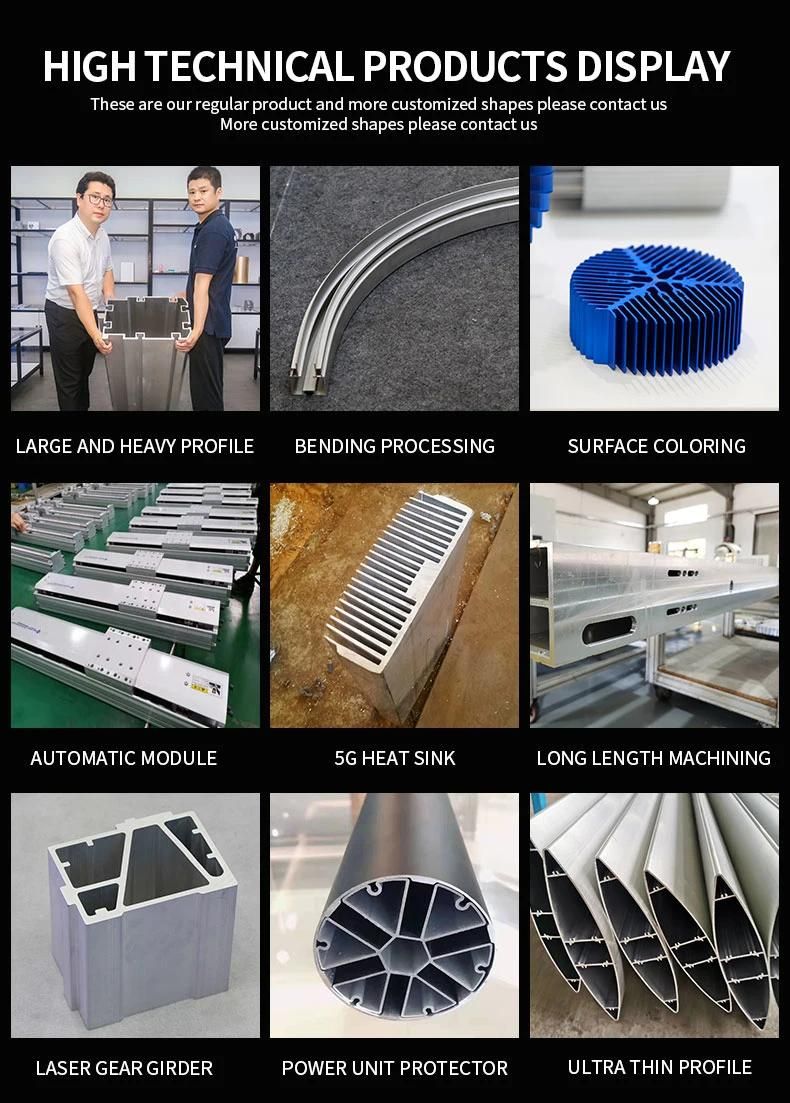

Our Product is:

1. Customized alumium profiles product
2. CNC machining
3. Stair and platform system
4. Frame and Fencing
5. Standard Aluminum profiles

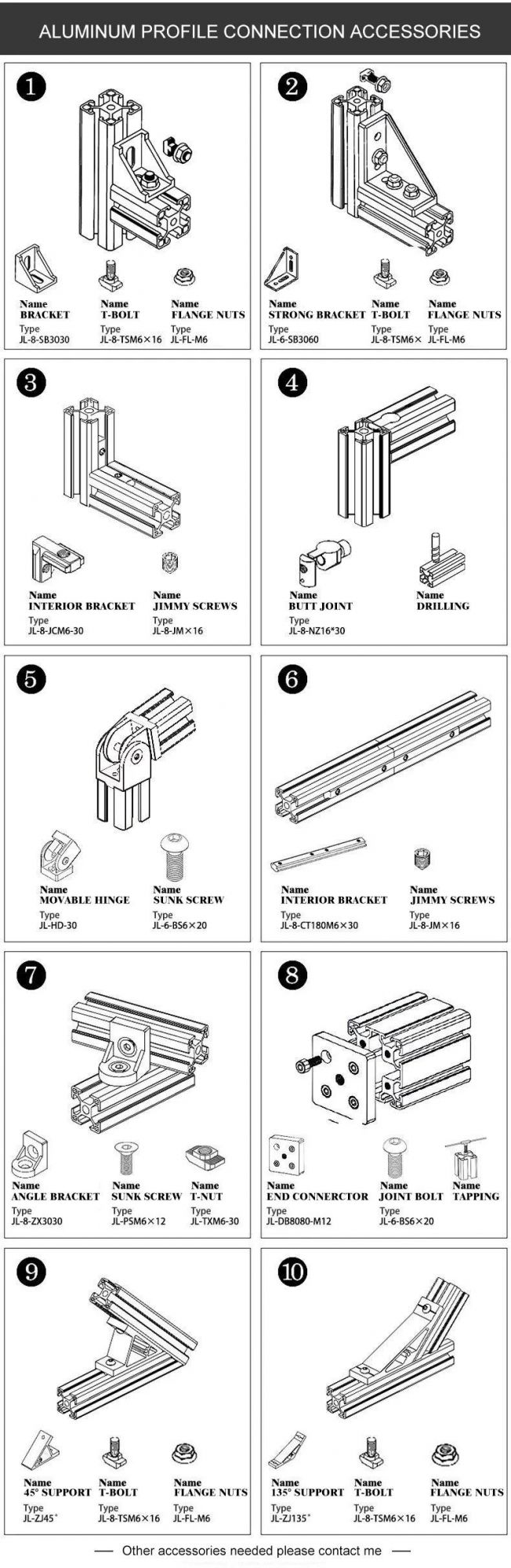

6. Profile accessories
