• Model NO.：Spool
• Surface Treatment：Electropolishing
• Welding：TIG
• Application：Booster Set, Pumps System, Water System, etc.
• Customised：Per Your Drawing
• Media：Water
• Transport Package：Standard Exporting Package
• Specification：1" to 10"
• Trademark：YR
• Origin：China
• HS Code：73079100

Basic Info.

Model NO. Spool Surface Treatment Electropolishing Welding TIG Application Booster Set, Pumps System, Water System, etc. Customised Per Your Drawing Media Water Transport Package Standard Exporting Package Specification 1" to 10" Trademark YR Origin China HS Code 73079100

Product Description

Booster Pump Spool Piece


Manufacturing process	Pipe cold buckling
Material	Stainless steel AISI 304. AISI 304L, AISI 316, AISI316L is available on request.
Welded joints	Made with TIG method without any additaional material
Surface treatment	Electroplishing, pickling and degreasing. Brushed, Acid on request
Threaded ends	From 1-1/2" to 4", UNI ISO 228
Flanged methods	From 1"-1'/2 to 8", flanges with holes according to UNI 2278 PN 16
Thread Type	NPT, NPTF, BSPT, BSPP and so on.
Wall Thickness	1.0mm - 5.0mm
Specification	ASME/ ANSI, API, DIN, GOST, BS, AS, JIS, JPI and so on.
Nominal working pressure	Standard 16 to 25 bars
Maximum length	5000mm
Application	Pump Booster Set, Water Treatment, Floor Heating System and so on.
Packing	Carton, Wooden Case, Pallet

 MANIFOLD ADVANTAGES:

Less MOQ limit	Flexibility according to your plan.
The shortest delivery time	One month for a container.
Sample support	Samples for your inspection to see the quality.
Production experience	20 yeas of Manifolds production experiences.
Sales experience	More than 15 years professional experience in the Water Pump industry.
Internal brand we cooperated	We supply to international brands.

>>We follow strictly the business ethic. Honest and trust are our core values to follow.

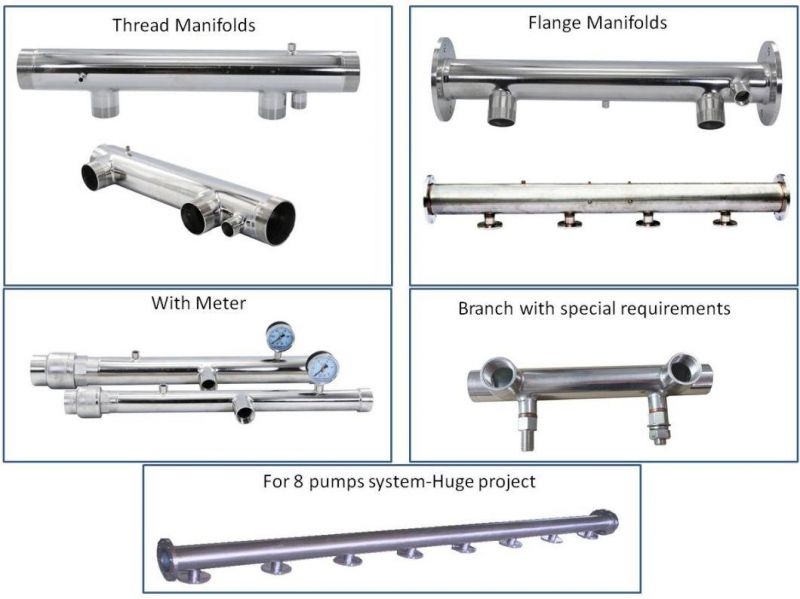

 Manifolds Collection Photos
Manifold-CustomizationDifferent pump system needs different dimension manifolds.
Customized manifolds are requested.
Drawing with all specific data, manifolds can be made accordingly.

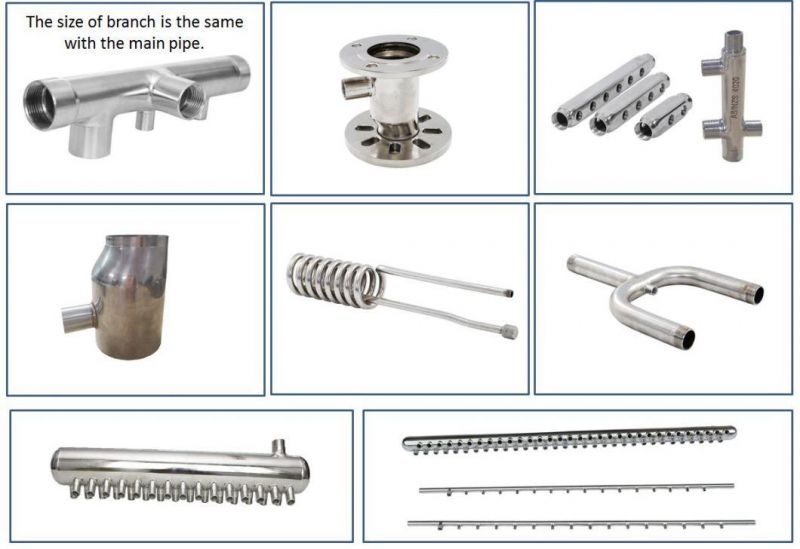

 Special Manifolds

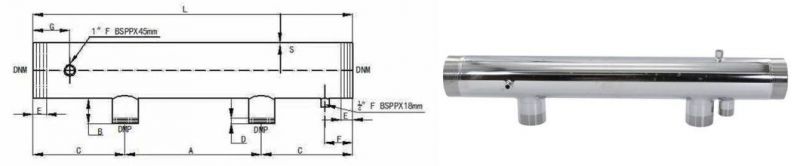

 Standard Manifolds



	L	DNM	DMP	A	B	C	D
1'' x 1''	610	1''	1''	360	40	125	16
1-1/4'' x 1''	610	1-1/4''	1''	360	40	125	16
1-1/4'' x 1-1/4''	610	1-1/4''	1-1/4''	360	45	125	18
1-1/2'' x 1-1/4''	610	1-1/2''	1-1/4''	360	45	125	18
1-1/2'' x 1-1/2''	610	1-1/2''	1-1/2''	360	45	125	20
2'' x 1-1/4''	610	2''	1-1/4''	360	45	125	18
2'' x 1-1/2''	610	2''	1-1/2''	360	45	125	20
2'' x 2''	610	2''	2''	360	55	125	25
2-1/2'' x 1-1/2''	650	2-1/2''	1-1/2''	380	45	135	20
2-1/2'' x 2''	650	2-1/2''	2''	380	55	135	25
2-1/2'' x 2-1/2''	650	2-1/2''	2-1/2''	380	55	135	25
3'' x2''	700	3''	2''	600	60	150	25
3'' x 2-1/2''	700	3''	2-1/2''	600	60	150	25
3'' x 3''	700	3''	3''	600	60	150	30

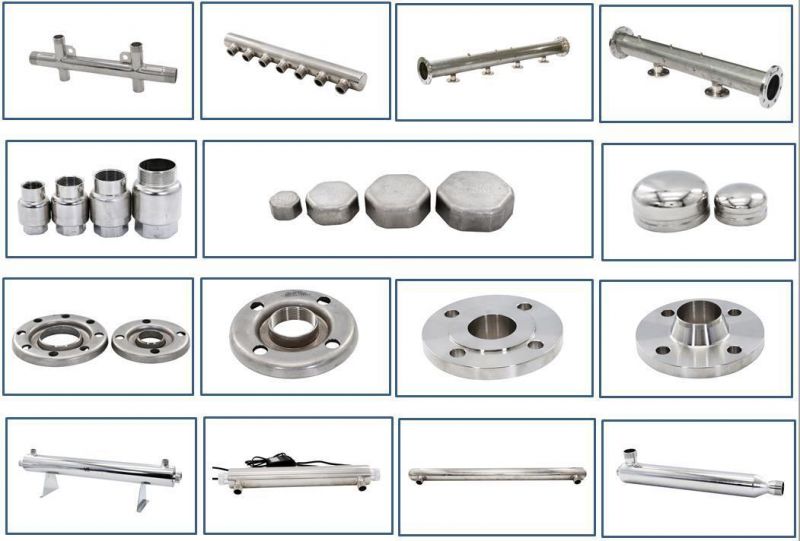

More Products

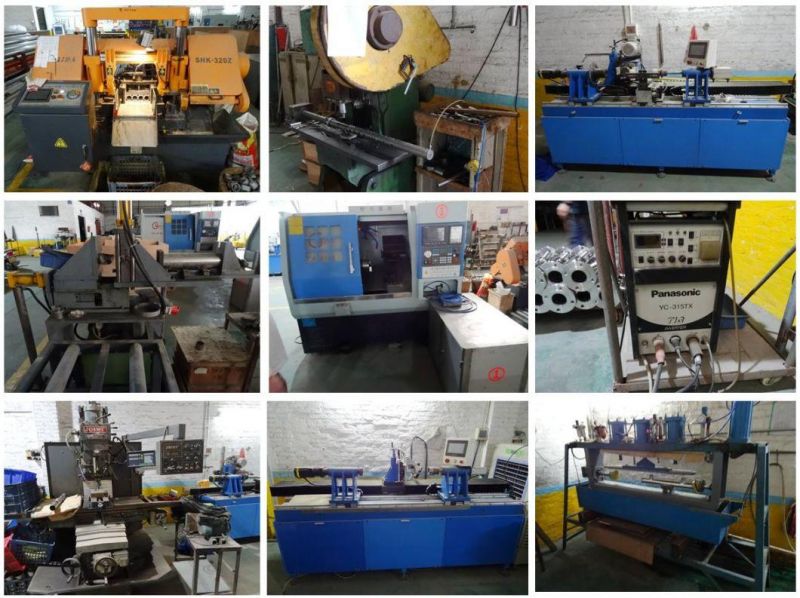

Equipment Photos

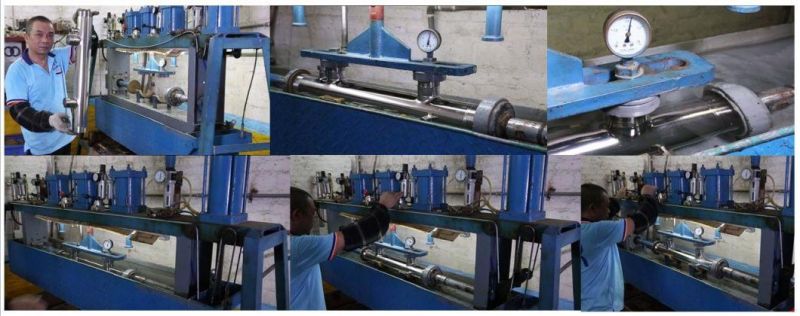

 Testing photosPackage photos


Welcome to contact us!
