Stainless Steel ASTM A182 F304 Sw RF Flange ANSI B16.5
Chengdu Derbo Steel Co., Ltd.- Standard：ANSI, DIN, GB, JIS
- Type：Socket
- Material：Stainless Steel
- Structure：Flanges
- Connection：Sw
- Sealing Surface：RF
Base Info
- Model NO.：Socket Welded Flange
- Manufacturing Way：Forging
- Shape：Circle
- Product Name：Sw Flange, ASME B16.5
- Transport Package：in Wooden Cases or Customers Requirements
- Specification：TUV, ISO9001, BV, TS, CCS
- Trademark：Derbo
- Origin：Sichuan China (Mainland)
- HS Code：7307210000
- Production Capacity：100000 Piece,Pieces Per Week
Description
Chemical Composition and Mechanical Property For ASTM A182Steel Grade Chemcial Composition Mechanical performance C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr Mo Tensile strenght
(Min) Yield Strenght
(Min) psi Mpa psi Mpa F304 0.08 1.00 2.00 0.045 0.03 8.0-11.0 18.0-20.0 515 75 205 30 F304L 0.03 1.00 2.00 0.045 0.03 8.0-13.0 18.0-20.0 495 70 175 25 F316 0.08 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.00-3.00 515 75 205 30 F316L 0.03 1.00 2.00 0.045 0.03 10.0-15.0 16.0-18.0 2.00-3.00 495 70 175 25 F317L 0.03 1.00 2.00 0.045 0.03 11.0-15.0 18.0-20.0 3.0-4.0 495 70 175 25

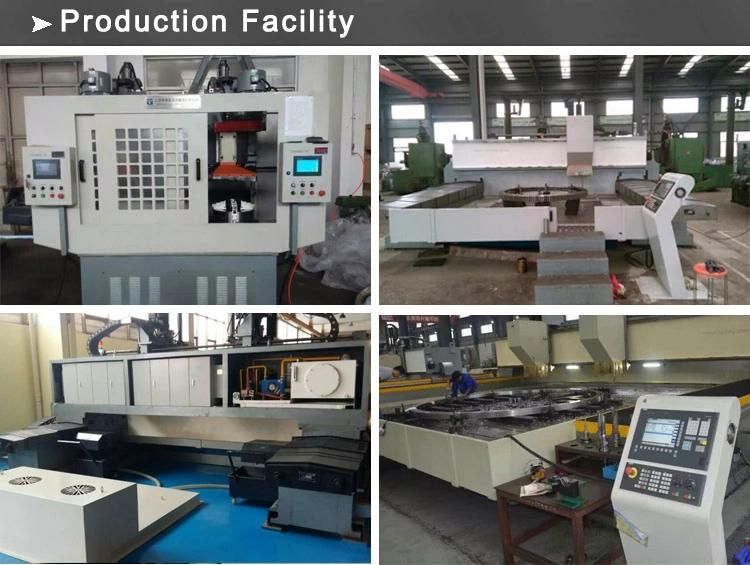

3.Production Facility

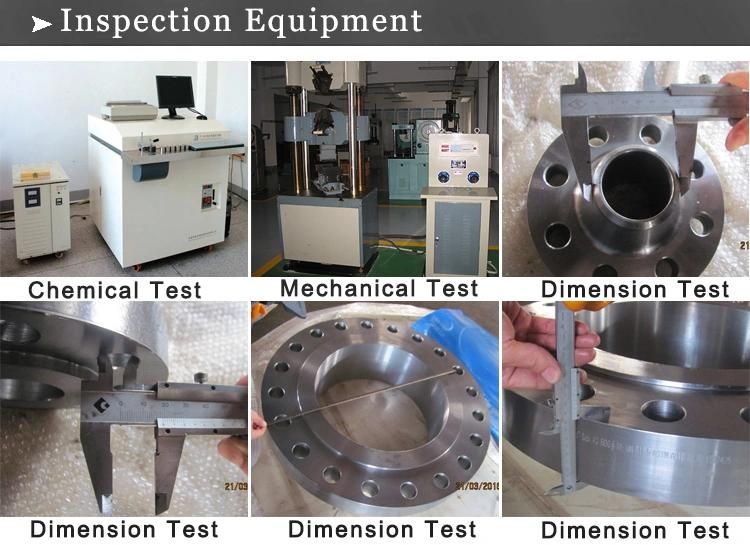

4.Qulality Control
5.Our Service
Chengdu Derbo Steel focus on pipe&tube solution for project application for more than 10 years with good quality and reasonable price,has succeed to cooperated with Sheel,Lukoil and other famous oil&gas companies all over the world.
If you have any inquiry for our products,please don't hesitation to contact us.We will provide you the most competitive quotation and technical support.
