• Model NO.：DIN580
• Application：Lifting Industry
• Finish：Hot Galvanizing
• Size：M6-M64
• Process：Drop Forged
• Quality：High
• Testing：Qualified
• Export Market：Global
• Other：Customized
• Transport Package：Carton and Iron Pallet
• Specification：CE ISO
• Trademark：Thinkwell
• Origin：Qingdao China
• HS Code：7326909000
• Production Capacity：2, 000 Per Day

Basic Info.

Model NO. DIN580 Application Lifting Industry Finish Hot Galvanizing Size M6-M64 Process Drop Forged Quality High Testing Qualified Export Market Global Other Customized Transport Package Carton and Iron Pallet Specification CE ISO Trademark Thinkwell Origin Qingdao China HS Code 7326909000 Production Capacity 2, 000 Per Day

Product Description

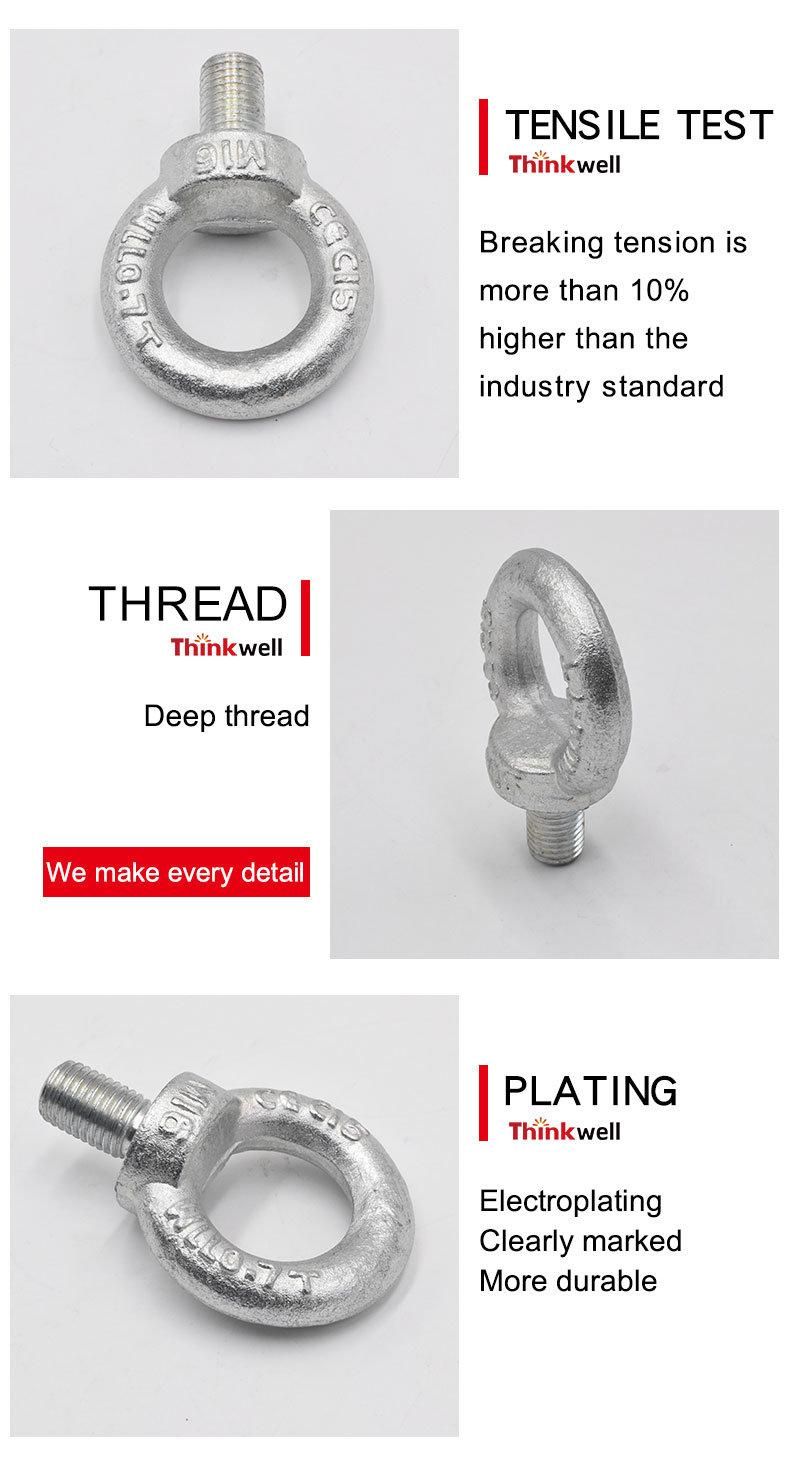

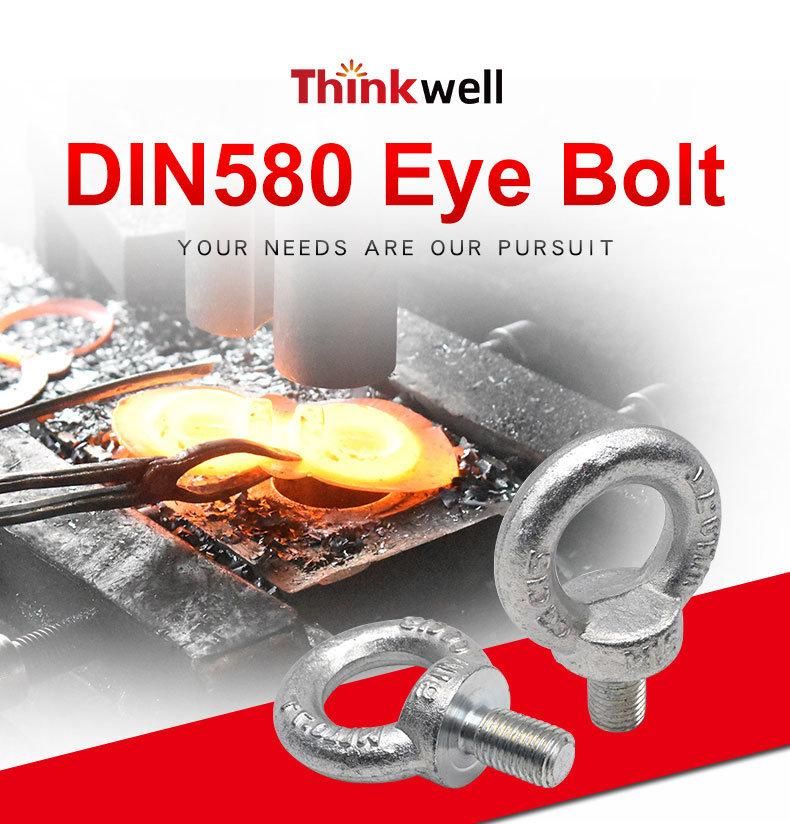

Drop Forged Steel DIN580 Lifting Eye Bolt

PRODUCT:
Model: DIN580
Materials: Carbon steel
Surface: Hot dipped galvanized, electro galvanized, and self-colored
Process: Drop forged
Packing: Carton, then in pallet
Special specifications and marks can be made according to customers' requirements











SHIPPING:
Origin: Qingdao, China
FOB port: Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India,etc
Standard: CE, ISO
Brand: Thinkwell

ISO 9001:2008 Certified Factory, customized requirements are welcome.

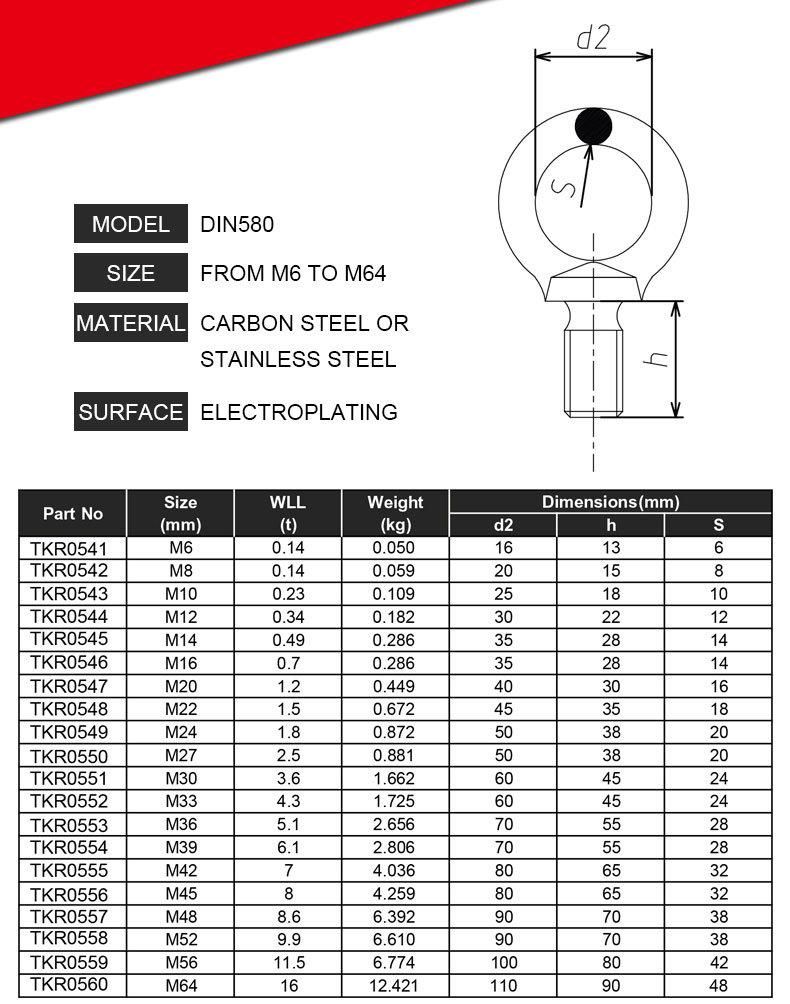

Working Load Limit	Diameter Thread (a)	Diameter Base (b)	Diameter Eye Outside (c)	Diameter Eye Inside (d)	Length (e)	Thickness Base (f)	Height (g)	Weight per 100pcs
tons	mm	mm	mm	mm	mm	mm	mm	kg
0.07	M 6	20	36	20	13	6	36	3
0.14	M 8	20	36	20	13	6	36	6
0.23	M 10	25	45	25	17	8	45	10.3
0.34	M 12	30	54	30	20.5	10	53	17.7
0.49	M 14	35	63	35	27	12	60	27.7
0.7	M 16	35	63	35	27	12	62	28
0.9	M 18	40	72	40	30	14	71	40.5
1.2	M 20	40	72	40	30	14	71	42.4
1.5	M 22	45	81	45	35	14	80	67.3
1.8	M 24	50	90	50	36	18	90	83.4
2.5	M 27	50	90	50	36	18	90	122
3.6	M 30	65	108	60	45	22	109	166
4.3	M 33	65	108	60	45	22	110	216
5.1	M 36	75	126	70	54	26	128	265
6.1	M 39	75	126	70	54	26	130	334
7	M 42	85	144	80	63	30	147	403
8	M 45	85	144	80	63	30	150	521
8.6	M 48	100	166	90	68	35	168	632

Main products also comprise Chains, Hooks, Shackles, Turnbuckles, Wire rope clips, Load binders and other rigging hardware accessories.

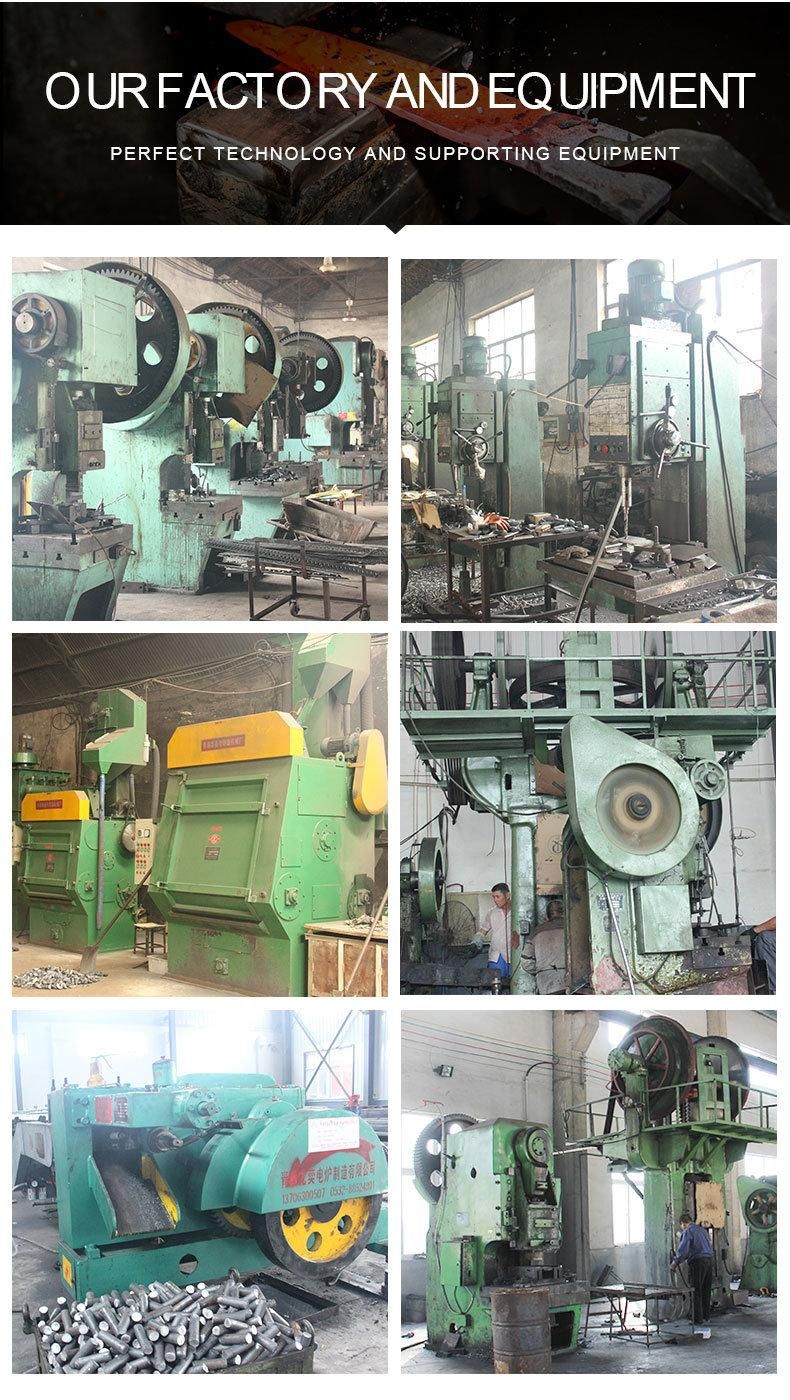

Qingdao ThinkwellHardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.


ADVANTAGEDS:
1 Quick response: all inquiries responded within 12 hours
2 Experience: reliable supplier & over 20 years in manufacturing rigging hardware, exported to over 50 countries
3 Timely delivery: from mold to samples within 10 days
4 Certification: CE, ISO, products test reports provided on request, control for each product
5 Strong ability for R&D
6 Transportation: close to Qingdao Port & Airport, providing great advantages to trade
7 Competitiveness: high-quality and the lowest ex-factory prices with a wide range of shipping ways
8 NO MOQ limit, customers' special need is welcomed
Our creed: better because of Specialization


Our Service, Your Safety!
You are more than welcome to our factory!

Welcome to inquiry! For more information plz feel free to contact us!
