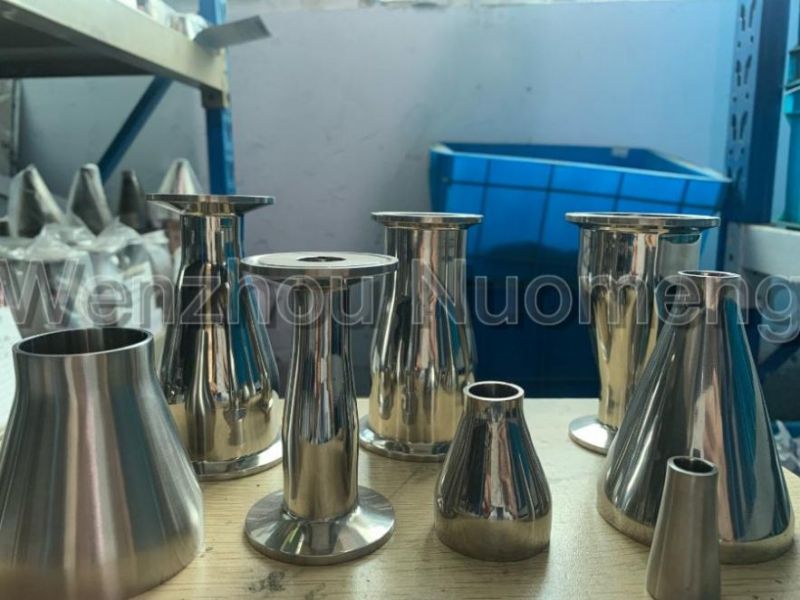

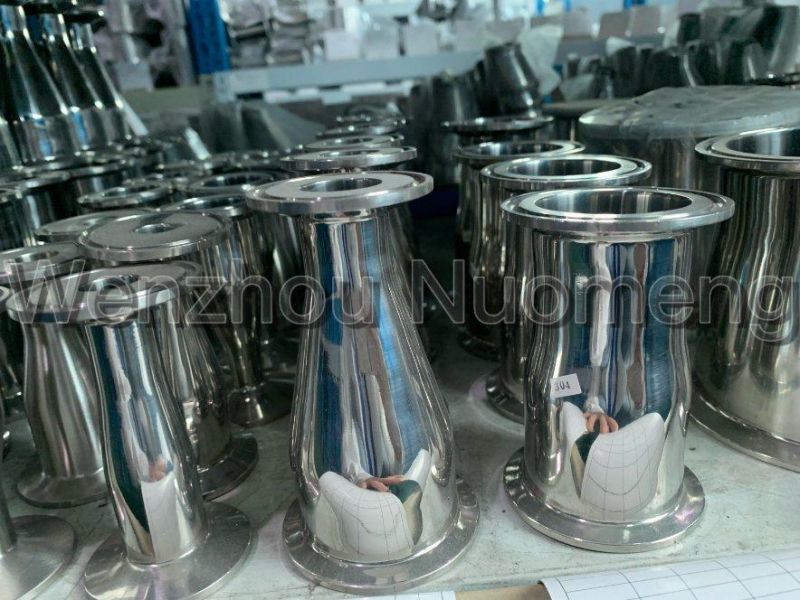

Sanitary Stainless Steel ASME Bpe Eccentric Welded Reducer
Wenzhou Nuomeng Technology Co., Ltd.- Standard：Asme Bpe
- Material：Stainless Steel
- Connection：Welding
- Surface Treatment：Polishing
- Head Type：Round
- Stainless Steel：316L
Base Info
- Model NO.：No. NM047120
- Transport Package：in Carton, Plywood Case
- Specification：ASME BPE
- Trademark：NUOMENG, OEM
- Origin：Wenzhou, China
- HS Code：7307290000
- Production Capacity：120000PCS,Year
Description
Nominal size inOverall length A in. Minimun I.D Tangent, small end,L2,in Minimun I.D. Tangent,small End,L2,in Minimum O.D.Tangent,small end L3,in Minimum O.D.Tangent,Large End,L4,in Maximum Internal Taper,& deg Minimum Internal Radius,R1,in Minimum External Radius,R2,in X Y 3/8" 1/4" 1.625 0.375 0.875 0.750 0.750 30 0.250 0.031 1/2" 1/4" 1.875 0.375 0.875 0.750 1.000 30 0.250 0.031 1/2" 3/8" 1.875 0.375 0.875 0.750 1.000 30 0.250 0.031 3/4" 3/8" 2.000 0.375 0.875 0.750 1.000 30 0.250 0.031 3/4" 1/2" 2.125 0.375 1.125 1.000 1.000 30 0.250 0.031 1" 1/2" 2.500 0.375 1.125 1.000 1.000 30 0.250 0.031 1" 3/4" 2.125 0.375 1.125 1.000 1.000 30 0.250 0.031 1 1/2" 3/4" 3.000 0.375 1.125 1.000 1.000 30 0.250 0.031 1 1/2" 1" 2.500 0.375 1.125 1.000 1.000 30 0.250 0.031 2" 1 3.375 0.375 1.125 1.000 1.000 30 0.250 0.031 2" 1 1/2" 2.500 0.375 1.125 1.000 1.000 30 0.250 0.031 2 1/2" 1 1/2" 3..375 0.375 1.125 1.000 1.000 30 0.250 0.031 2 1/2" 2" 2.500 0.375 1.125 1.000 1.000 30 0.250 0.031 3" 1 1/2" 4.250 0.375 1.125 1.000 1.500 30 0.250 0.031 3" 2" 3.375 0.375 1.125 1.000 1.500 30 0.250 0.031 3" 2 1/2" 2.625 0.375 1.125 1.000 1.500 30 0.250 0.031 4" 2" 5.125 0.375 1.125 1.000 1.500 30 0.250 0.031 4" 2 1/2" 4.250 0.375 1.125 1.000 1.500 30 0.250 0.031 4" 3 3.875 0.375 1.625 1.500 1.500 30 0.250 0.031 6" 3 7.250 0.375 1.625 1.500 2.000 30 0.250 0.031 6" 4 5.625 0.375 1.625 1.500 2.000 30 0.250 0.031
