Titanium Helical Spring Lock DIN127 Titanium Washers
SHAANXI RUIYANG IMPORT EXPORT CO., LTD.- Type：Spring Washer
- Material：Titanium
- Combination Washer Structure：A Type
- Combination Washer Packaging：All Inclusive
- Spring Washer Type：Standard
- MOQ：100PCS
Base Info
- Model NO.：M2-M52
- Transport Package：Wooden Case Packaging
- Specification：2-52mm
- Trademark：RUIYANG
- Origin：China
- HS Code：8108909000
- Production Capacity：10000 PCS,Year
Description
Basic Info.
Model NO. M2-M52 Transport Package Wooden Case Packaging Specification 2-52mm Trademark RUIYANG Origin China HS Code 8108909000 Production Capacity 10000 PCS/YearProduct Description

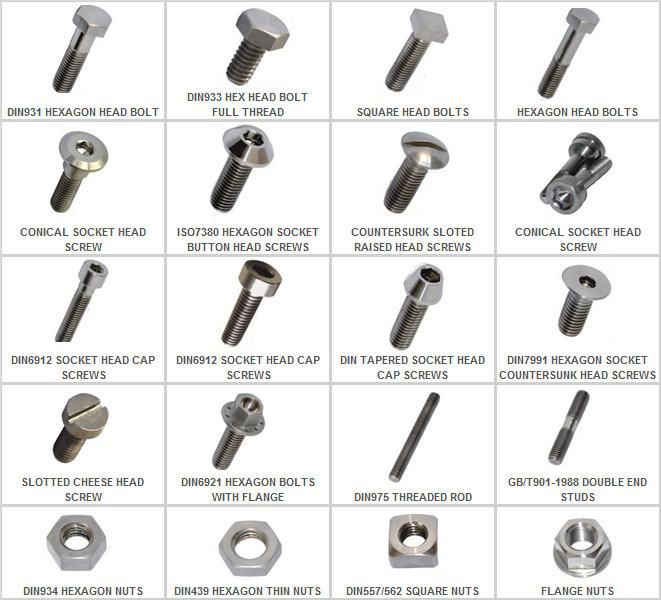

Supply titanium fasteners,titanium bolts and nuts,washers,titanium bicycle nuts,grade various,good price

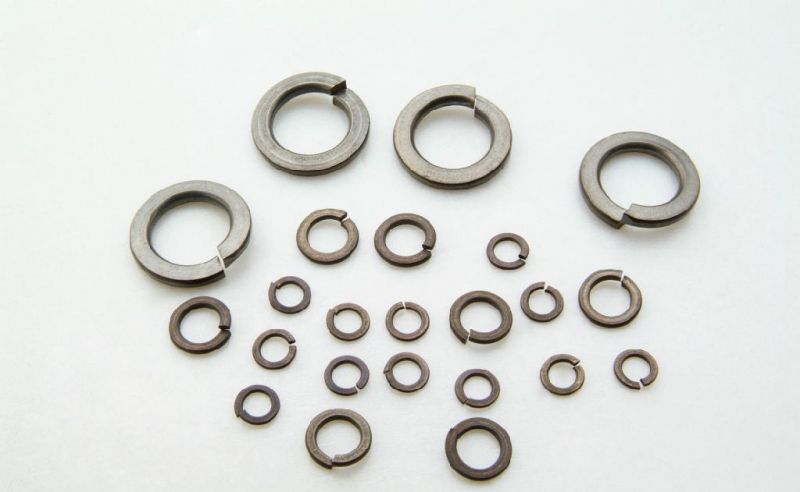

Dimensions of Titanium DIN127 Titanium Helical Spring Lock Washers:
| for thread size | d | d1 | b | s |
| M2 | 2.1 | 4.4 | 0.9 | 0.5 |
| M2.5 | 2.6 | 5.1 | 1 | 0.6 |
| M3 | 3.1 | 6.2 | 1.3 | 0.8 |
| M3.5 | 3.6 | 6.7 | 1.3 | 0.8 |
| M4 | 4.1 | 7.6 | 1.5 | 0.9 |
| M5 | 5.1 | 9.2 | 1.8 | 1.2 |
| M6 | 6.1 | 11.8 | 2.5 | 1.6 |
| M8 | 8.1 | 14.8 | 3 | 2 |
| M10 | 10.2 | 18.1 | 3.5 | 2.2 |
| M12 | 12.2 | 21.1 | 4 | 2.5 |
| M14 | 14.2 | 24.1 | 4.5 | 3 |
| M16 | 16.2 | 27.4 | 5 | 3.5 |
| M18 | 18.2 | 29.4 | 5 | 3.5 |
| M20 | 20.2 | 33.6 | 6 | 4 |
| M22 | 22.5 | 35.9 | 6 | 4 |
| M24 | 24.5 | 40 | 7 | 5 |
| M27 | 27.5 | 43 | 7 | 5 |
| M30 | 30.5 | 48.2 | 8 | 6 |
| M33 | 33.5 | 55.2 | 10 | 6 |
| M36 | 36.5 | 58.2 | 10 | 6 |
| M38 | 39 | 61.2 | 10 | 6 |
| M42 | 42.5 | 68.2 | 12 | 7 |
| M45 | 45.5 | 71.2 | 12 | 7 |
| M48 | 49 | 75 | 12 | 7 |
| M52 | 53 | 86 | 14 | 8 |
Standard:ASME/ANSI B 18.2.1,IFI149,DIN931,DIN933,DIN558, DIN601,DIN960, DIN961, ISO4014,ISO4017
Grade:TA1,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC3,TC4,TB2,Gr1,Gr2,Gr3, Gr5, Gr7, Gr12etc
Material:Alloy Steel,Stainless Steel,Titanium alloy
Size:various ad type
MinimumOrder:according to customer demand
soonest delivery
sea-worthy package
Packing:bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Application:Structural Steel; Metal Buliding; Oil&Gas;Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating
Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,Sports,Military etc.
We need more detail as follow. This will allow us to give you an accurate quotation.
Before offer the price,get the quote simply by completing and submitting the form below:
Product:________
Measure: _______ all (Inside Diameter) x_______(Outside Diameter)x_______(Thickness)
Order Quantity: _________________pcs
Material: ____________
When do you need it by? ___________
Where to Shipping: _______________
Email your drawing.
At the same time, we can also provide carbon steel and alloy steel stud bolts.
Transportation:
Should you are interested in our products, take action to buy or wholesale the quality titanium bolts & nuts for bikes/moter/car for sale in stock from our factory. Shaanxi Ruiyang, as one of the leading manufacturers and suppliers in China, has various sizes of products with competitive price at your choice.
