• Model NO.：3A2006
• Color：Yellow, Red, Purple, Black
• Surface：Smooth
• Tensile Strength：12-50MPa
• Hardness：90, 95, 98shore a
• Elongation：650%
• Density：1.25g,cm3
• Size：Standard Size
• Transport Package：Packing in Cartons
• Specification：Standard Size
• Trademark：3A Rubber
• Origin：China
• HS Code：39269090
• Production Capacity：100000pieces,Month

Size    MaterialOD      ID       H      H1        Lemella qtyGR14Polyurethane3010.512104GR19Polyurethane401814.5126GR24Polyurethane542615.2148GR28Polyurethane653019158GR38Polyurethane803822188GR42Polyurethane954624208GR48Polyurethane1045125.5218GR55Polyurethane1206027228GR65Polyurethane1356832268GR75Polyurethane16080373010GR90Polyurethane199100423410GR100Polyurethane225113 3810GR110Polyurethane255127 4210GR125Polyurethane290147 4610GR140Polyurethane320165 5010GR160Polyurethane370190 5710GR180Polyurethane420220 6412

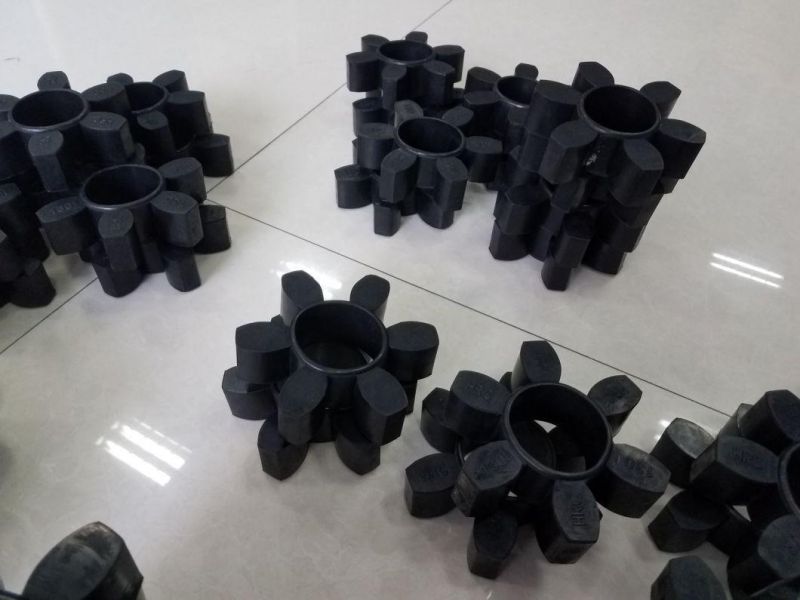

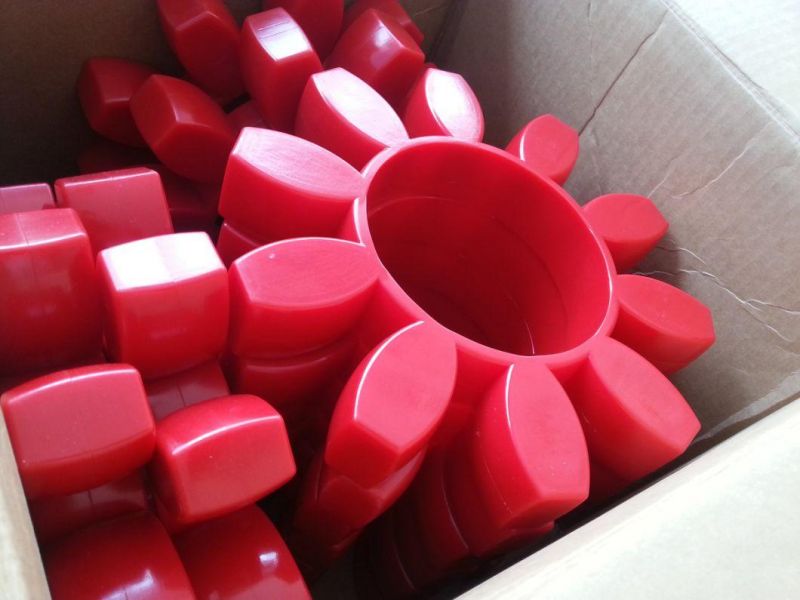

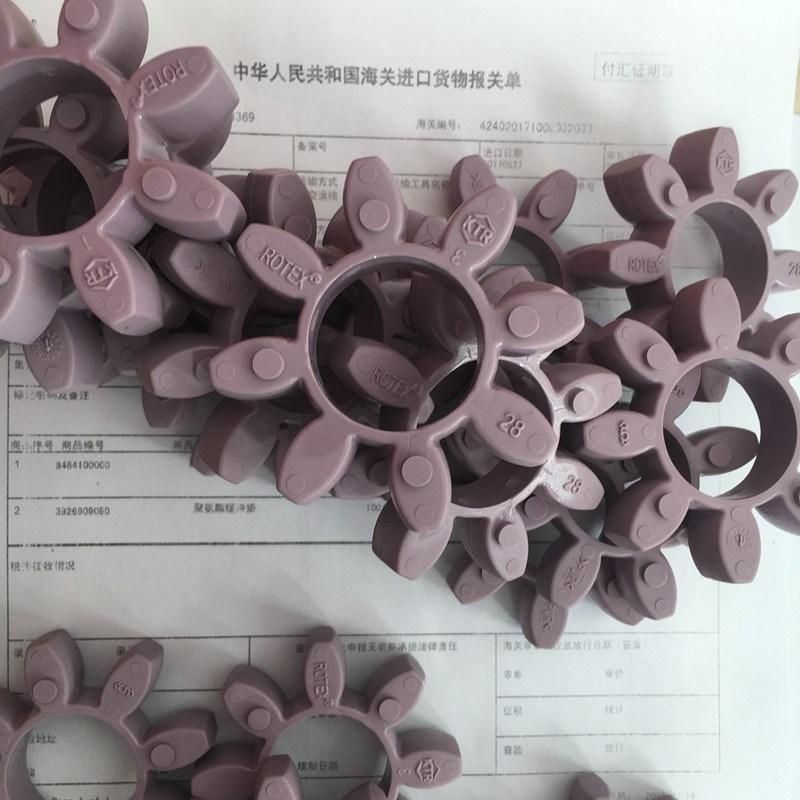

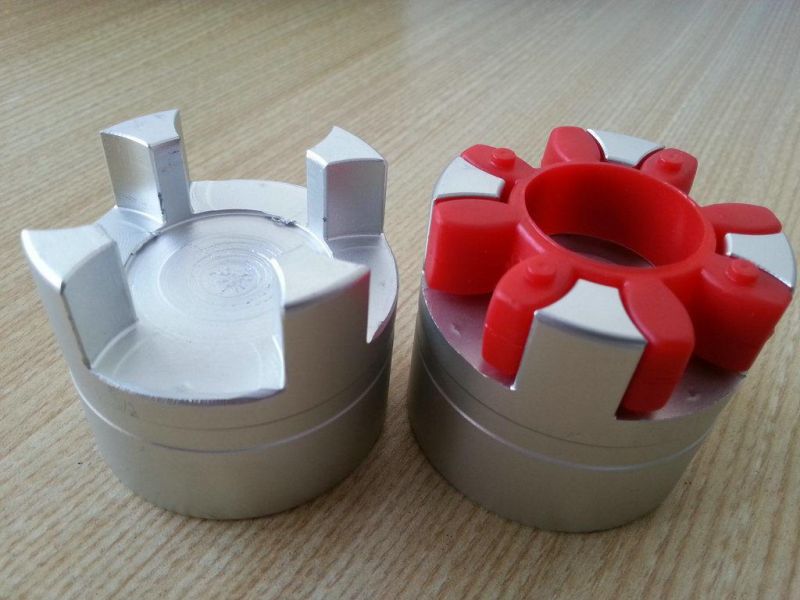

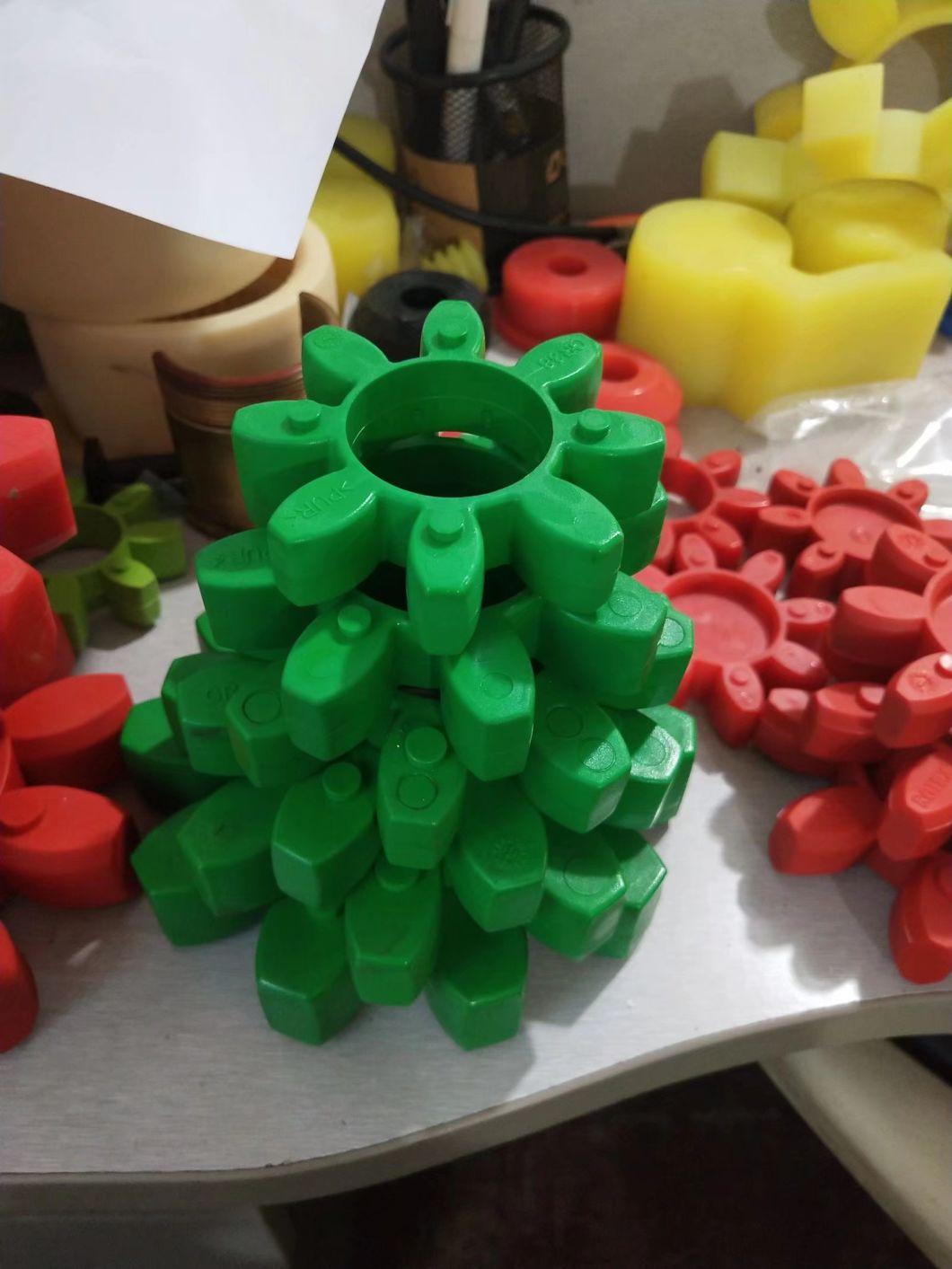

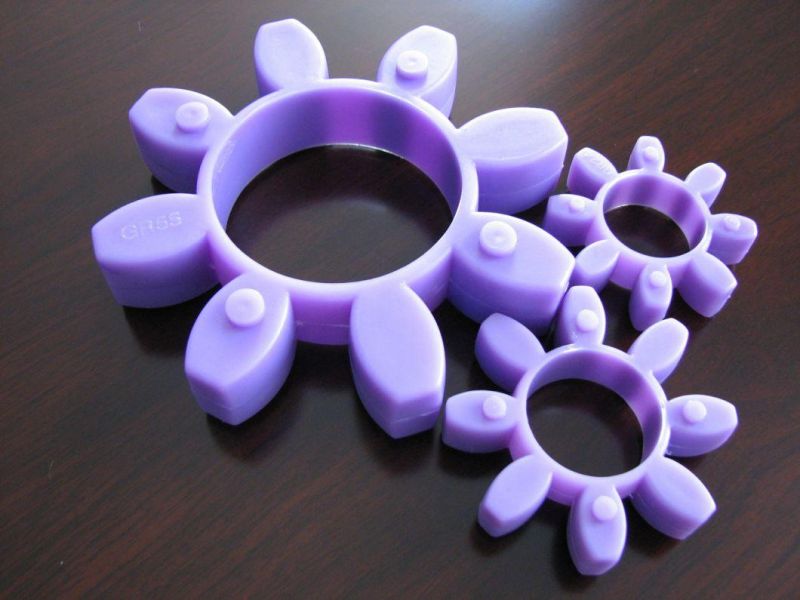

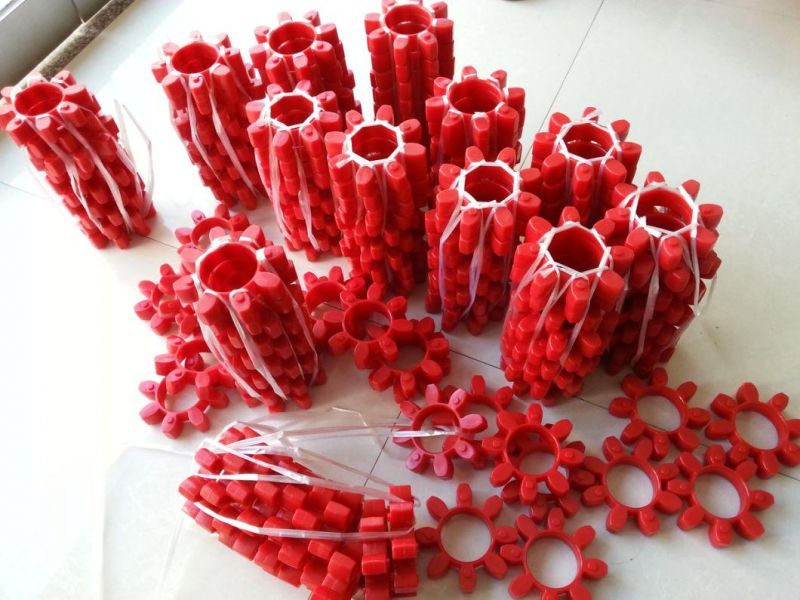

Physical character: made by injection with high quality polyester or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of GR, GS, MT, Hb, HRC, L, NM and Gear J series couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.
Specifications:
material: polyester, CSM/SBR
color: yellow, red, purple, green, black etc.
surface: smooth
tensile strength: 12-55Mpa
hardness: 80-98Shore A
elongation: 400%-650%
density: 1.25g/cm3
elasticity impact: >25%
tear strength: 35-155KN/m
akron abrasion loss: <0.05cm3/1.61km
compression set (22h*70oC): <10%
working temperature: 120oC
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

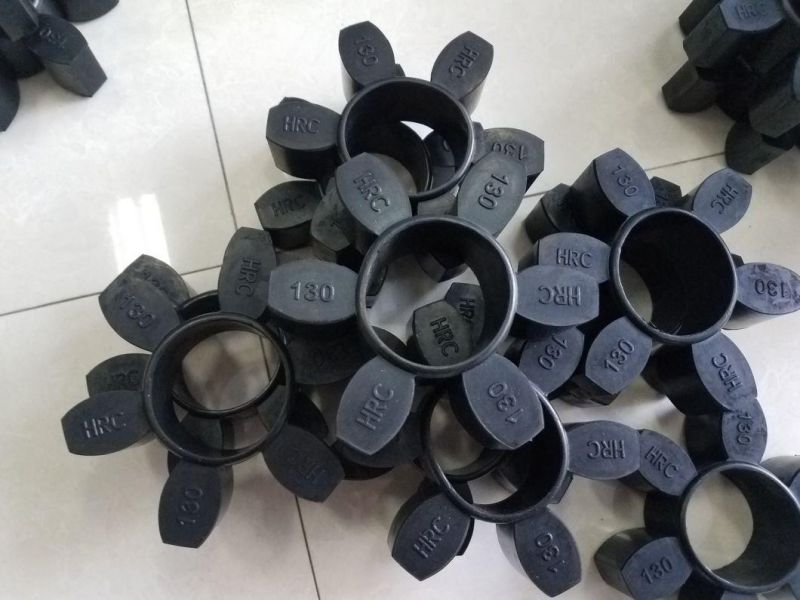

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

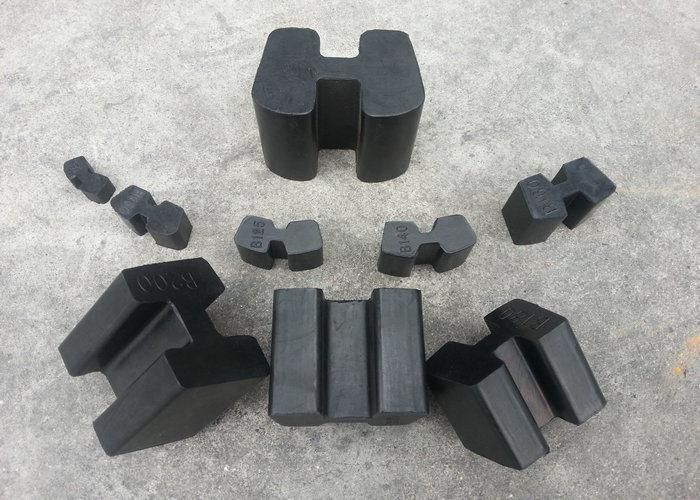

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

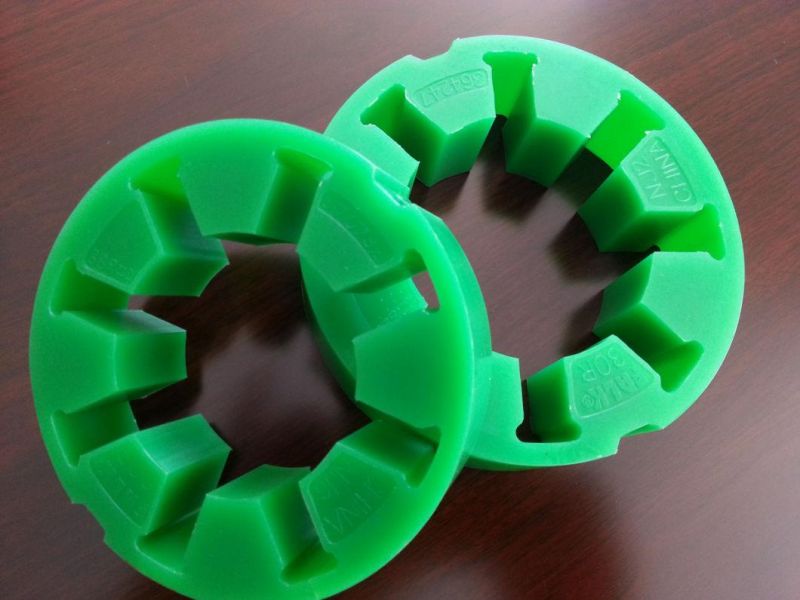

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
