Swagelok Type Ultrahigh Purity Mini Butt Weld Fittings Stainless Steel Union Cross
Sailuoke Fluid Equipment Inc.- Standard：ANSI, GB
- Material：Stainless Steel
- Connection：Welding
- Head Type：Round

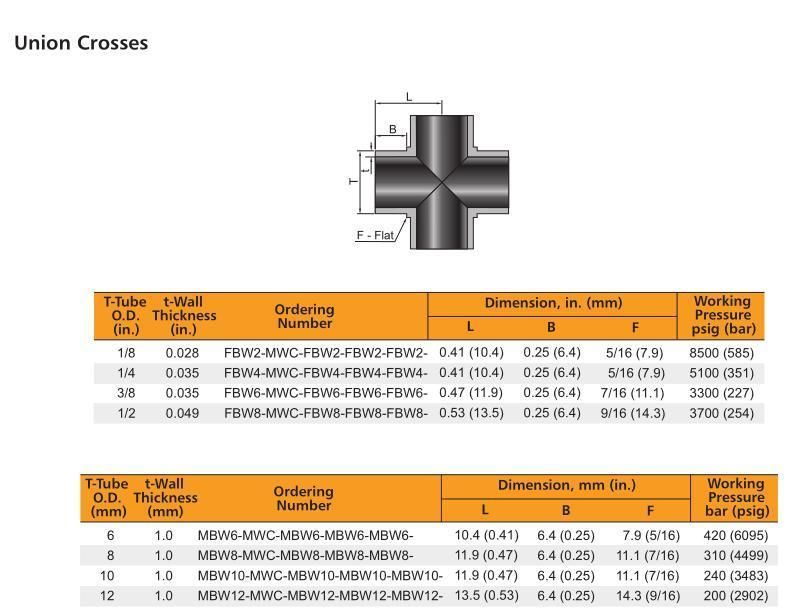

- Product Name：Mini Butt Weld Union Crosses
- Body Material：Stainless Steel
Base Info
- Model NO.：MWC
- Features：Ultrahigh Purity
- OEM：Avaliable
- MOQ：1 Piece
- Transport Package：Plastic Bag Inside, Carton Outside
- Specification：1,8′′ to 1,2′′
- Trademark：Hikelok
- Origin：China
- HS Code：7307290000
- Production Capacity：1000,Month
Description
SEMI F20
Wetted Surface Finish, Cleaning and Packaing
* Wetted Surface Finish
Standard surface finish is a roughness average of 10 μin. (0.25μm) Ra
* Special Cleaning and Packaging
CP-02 special cleaning and packaging, following ASTM G93 level C, add- CP2 as a suffix to the ordering number
Example: FBW4-MWE-FBW4-316L-CP3
* Ultrahigh- purity Process Specification
CP-03 ultrahigh- purity cleaning and packaging, wetted surfaces are finished to 5 μin. (0.13μm) Ra.
EXAMPLE: FBW4-MWE-FBW4-316L

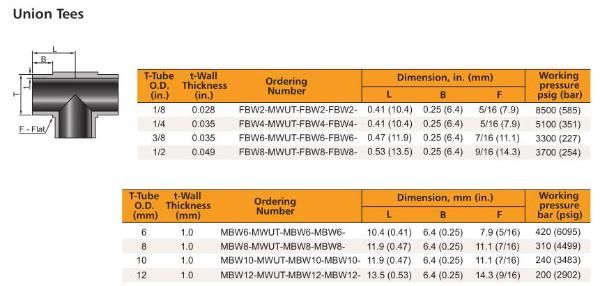

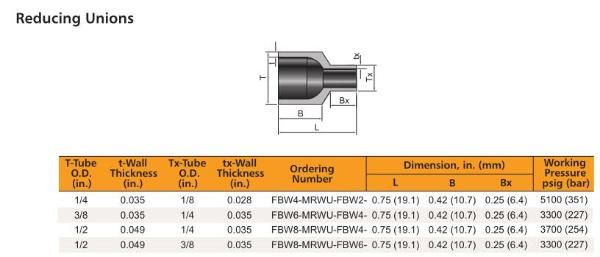

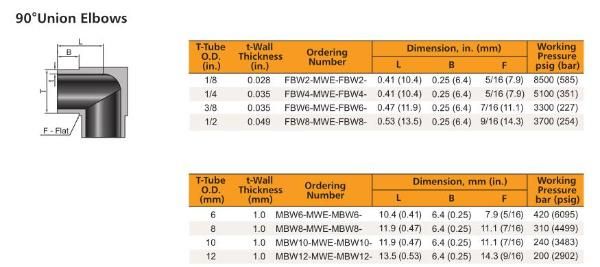

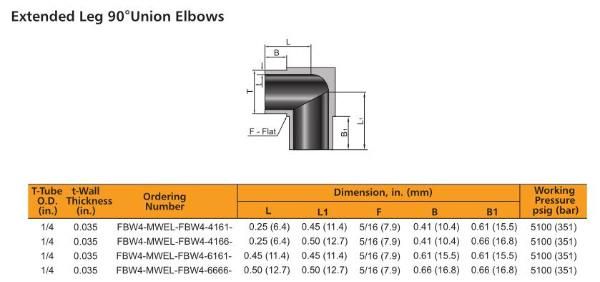

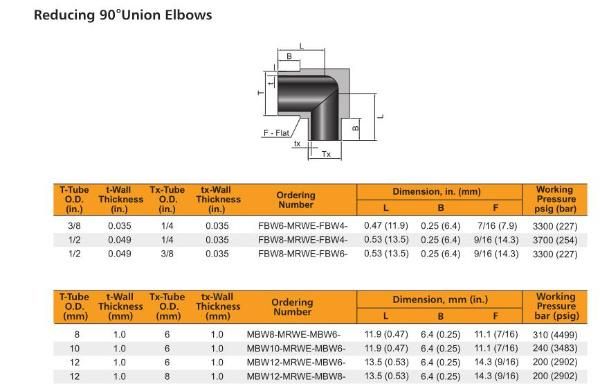

Other Products of Mini butt Weld Fittings
Certificates

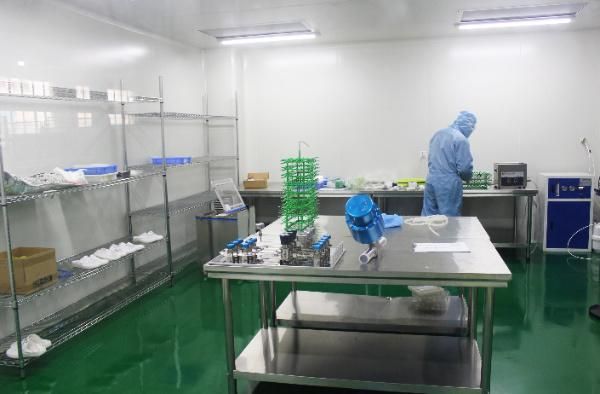

Clean Package Room

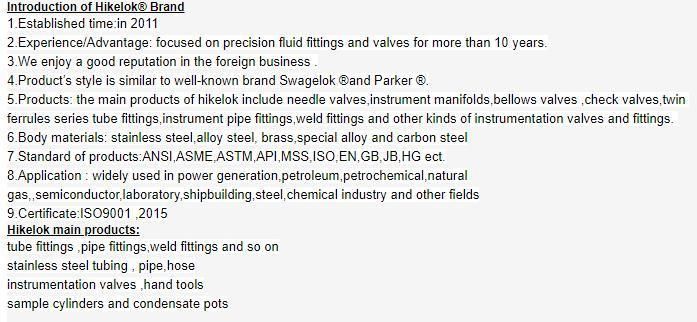

Company Introduction

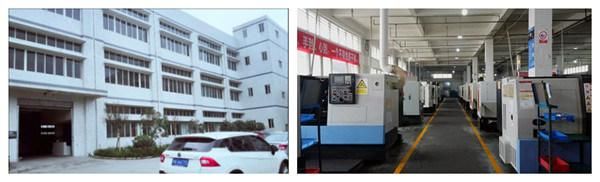

Factory
