Fastener & Fitting

One Way Drive Self Tapping Sheet Metal Screw

Shanghai Monsun Technology Co., Ltd.
  • Material:Carbon Steel
  • Type:Pan Head
  • Groove:Cross
  • Connection:Common Bolt
  • Head Style:Round
  • Standard:DIN

Base Info

  • Model NO.:MS0226-66
  • Grade:12.9
  • Colour:White,White-Blue
  • Delivery Period:30days,45days,60days,Follow Customer Wishes
  • Transport Package:Bulk, Bag, Box, Plastic Barrel
  • Specification:#4 #6 #8 #10 #12
  • Trademark:OEM
  • Origin:Zhejiangchina
  • HS Code:731814
  • Production Capacity:60000tons,Year

Description

NameOne Way Sheet Metal Screw Size#4 #6 #8 #10 #12 HeadOvalhead,Flat Head,Pan HeadMaterialC1022,carbon steel,alloy steelFinish:Zinc Plated PackingBulk, Small Box, Carton, Plastic Bag, Custom Made RequirementOriginZhejiang,China
The sheet metal One-Way screw with is available in stainless steel A2 and steel zinc.

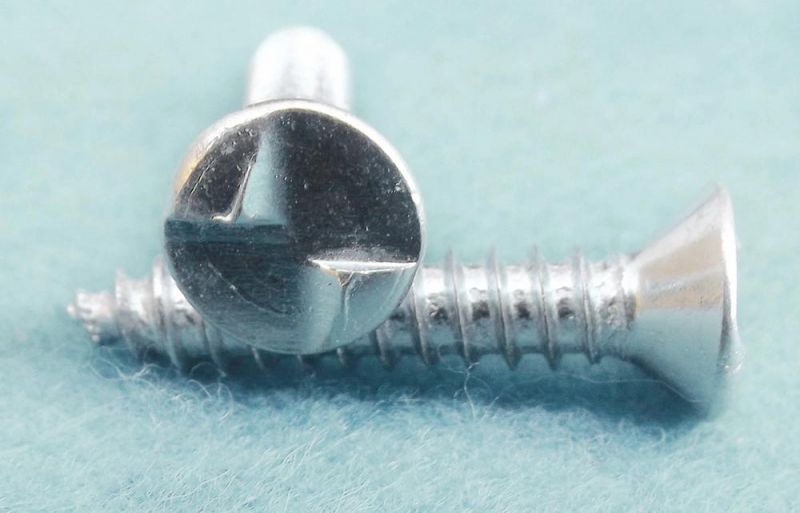

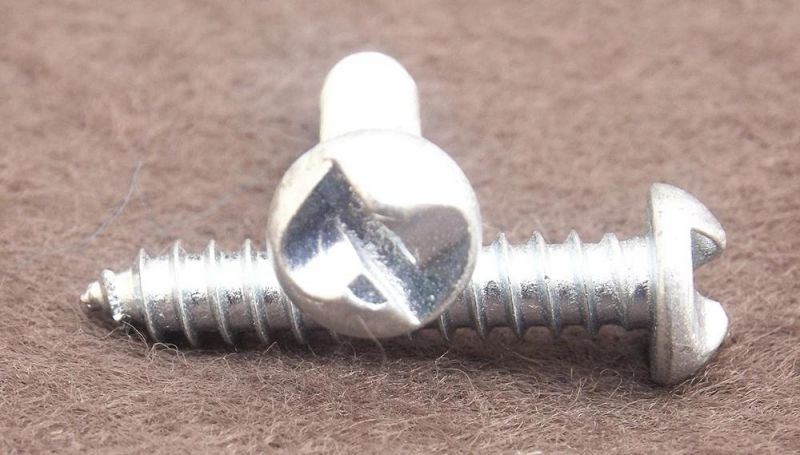

Features tamper resistant one-way head
Used to attach sheet metal to other thin metal, wood or other material
Sharp pointed tip
Pilot hole should be pre-drilled

The threads on sheet metal screws are designed to pull two materials tightly together. When attaching metal to wood, it is especially important to pre-drill a hole. These sheet metal screws feature a tamper resistant one-way head and require a special tool to remove (alternatively a slot can be cut into the head that would allow removal with a flat head screw driver). Install using flat head screw driver or one-way screw slotted driver bit. When it's fixed, it's fixed. Once fitted, One-Way screws cannot be dismantled in the normal way. If dismantling is required in future, the One-Way screw is therefore not recommended. A standard screw driver is used for assembly.



One Way Drive Self Tapping Sheet Metal ScrewOne Way Drive Self Tapping Sheet Metal Screw

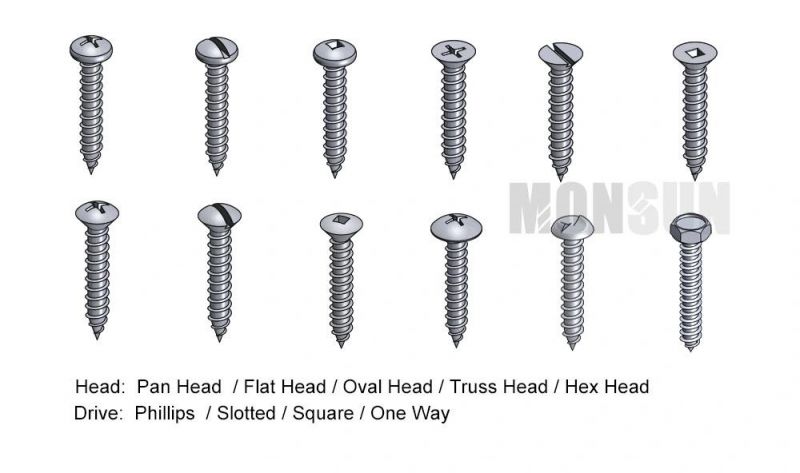

A range of sheet metal screws (self-tapping screws) can be produced:
Head: Pan Head / Flat Head / Oval Head / Truss Head / Hex Head
Drive: Phillips / Slotted / Square / One Way
