• Model NO.：INNOVAT
• Manufacturing Way：Forged Casting
• Price Term：EXW Factory, Fob and CIF
• Transport Package：Plywood Case
• Specification：1′′ and 1,2′′ ~ 120′′ (DN40-DN3000)
• Trademark：INNOVAT
• Origin：China
• Production Capacity：50000PC,Per Month

Basic Info.

Model NO. INNOVAT Manufacturing Way Forged Casting Price Term EXW Factory, Fob and CIF Transport Package Plywood Case Specification 1′′ and 1/2′′ ~ 120′′ (DN40-DN3000) Trademark INNOVAT Origin China Production Capacity 50000PC/Per Month

Product Description

 Flanges are the connecting parts between pipes and are used for connecting pipe ends. Also useful in equipment inlet
and outlet flange, used for the connection between two equipment, such as reducer flange. Flange connection or flange
joint refers to a detachable connection made of flange, gasket and bolt which are connected to each other as a group of
assembled sealing structures. Pipeline flanges refer to the flanges for piping in pipeline devices and the import and export
flanges of equipment when used in equipment. There are holes in the flange and bolts hold the two flanges together.
Gasket seals between flanges.

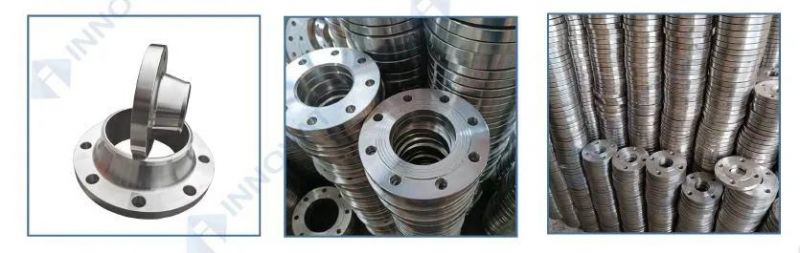

Butt welding flange with neck is a flange with a conical neck and butt welding with cylinder or pipe. Because of the transition
structure of the cone neck and the butt welding connection, the strength and stiffness of the flange are strengthened,
and the sealing performance is better than that of the flat welding flange. Suitable for high pressure, high temperature
or high sealing requirements.

Standard	ANSI, ASME, DIN, BS, JIS, GB, ISO etc
Material	310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302, 301,201,202,405,410,420,430,904L etc

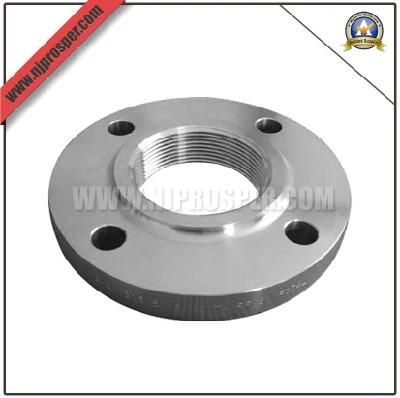

Type	Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc
Connection type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc
Size	1'' and 1/2'' ~ 120'' (DN40-DN3000)
Price term	EXW factory, FOB and CIF
Payment term	T/T, L/C, West Union, Money Gram and etc
Package	Standard export wooden case or as you requested

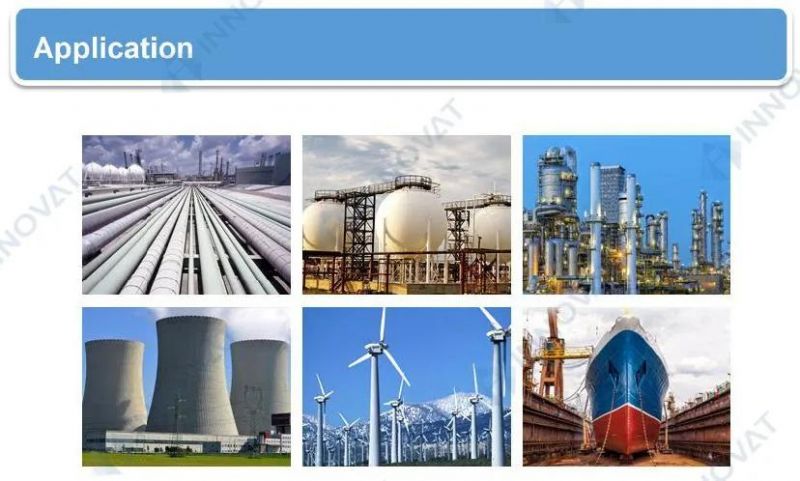

Application	It is usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
