• Model NO.：PPFUM-16A2; PPFUM-24A2; PPFUM-32A2; PPFUM-48A2
• Fit up System：Double Head with Multifunction
• Color：Red
• Operability：Flexibility
• Transport Package：Container or as Request
• Specification：CE, SGS, ISO9001, TUV
• Trademark：QSPT
• Origin：Shanghai, China
• HS Code：8468900000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. PPFUM-16A2; PPFUM-24A2; PPFUM-32A2; PPFUM-48A2 Fit up System Double Head with Multifunction Color Red Operability Flexibility Transport Package Container or as Request Specification CE, SGS, ISO9001, TUV Trademark QSPT Origin Shanghai, China HS Code 8468900000 Production Capacity 20 Sets/Month

Product Description

Piping Fabrication Fast Fitting-up Machine (Multifunctional Piping Fitting Up Machine)
Model: PPFUM-16A2; PPFUM-24A2; PPFUM-32A2
Applicable Industry: Oil & Gas, Refinery, Petrochemical, Petroleum, Chemical Industy, Onshore & Offshore, Marine Engg, Shipbuilding & Shipyard, Thermal & Nuclear Power Plant, Boiler, Heat Exchanger Refrigeration, Medical, Voyage, Pressure Vessel, Foodstuff Machinery, Atomic Power, Beverage etc.
Reference List: L & T, KSS, TECHNIP, KEPPEL, CCC, TYCO, CHIYODA, DYNA-MAC, CSCEC, CNPC, SINOPEC, CNOOC, CNCEC, CSIC, CSSC, ASL etc.
Performance features
Fit-up and tack welding the straight pipe with fittings such as flange, elbow, tee etc directly
Increasing the efficiency and quality of pipe to fittings such as flange, elbow, tee etc fitting-up
Needing fewer skills for fitting up pipes and flanges and reducing work difficulty for the operators
Application Range: Used for standard wall thickness pipes & fittings OR heavy wall thickness pipe & fittings ( As per request)

Technical parameters
Pipe diameter applicable: DN50-400 (2-16 inch; DN150~600mm (6~24 inch); DN200-800mm (8-32 inch); Or custom made acc to requirements
The longest pipe: 12m or 6M (or depend on the situation)
Fitting-up system: 2 sets
Moving up/down: With screw lifter, driven electrically
Moving left/right: Linear guiding rail, driven & movement electrically
Vertical turnover: With screw lifter, driven electrically
Lengthwise moving: Motorized driving Hexagonal steel track
Max loading capability: 750KG/1000KGS/1500KGS (or depend on the situation)
Bracket system: 2 sets
Max loading capability: 2, 500KGS; 3500KGS; 5000KGS (or depend on the situation)
Lengthwise moving: Manually driving
Track system: 1 set
Track length: 7.5M or 10M (or depend on the situation)
Track type: Hexagonal steel track
Welcome to you contact with us to get more informations.

Technical Description	PPFUM-16A2	PPFUM-24A2	PPFUM-32A2	PPFUM-48A2
Pipe diameter applicable	2"-16"	6"-24"	8"-32"	24"-48"
The longest pipe	12m or 6M	12m or 6M	12m or 6M	12m or 6M
Fitting-up system	2 sets or 1 set	2 sets or 1 set	2 sets or 1 set	2 sets or 1 set
Max loading for fit up table	750 KGS	1000 KGS	1500 KGS	2000 KGS
Max loading for supporter	2500 KGS	3500 KGS	5000KGS	6000KGS
Track system	1 set	1 set	1 set	1 set
Track length	7.5M or 15M	7.5M or 15M	7.5M or 15M	7.5M or 15M
Moveable type	motorized	motorized	motorized	motorized
Supporter System	2 sets	2 sets	2 sets	2 sets

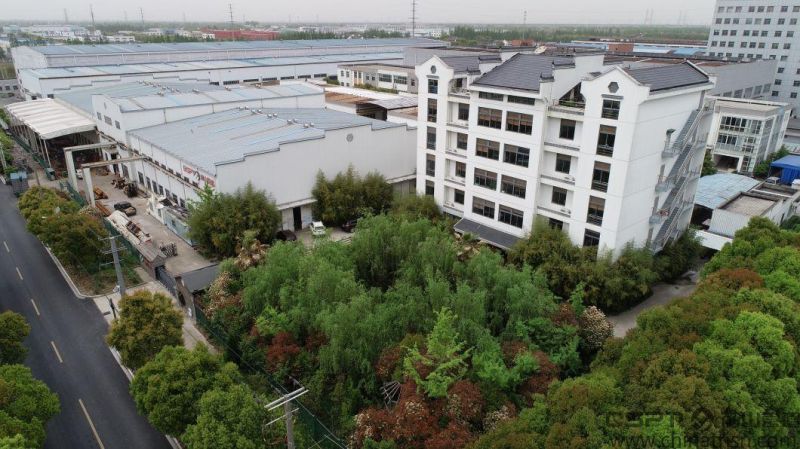

our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments.
