M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt

Tianjin Easoon Tech Co., Ltd.
  • Material：High Strength Steel
  • Type：Torx Head
  • Connection：Common Bolt
  • Head Style：Torx
  • Standard：DIN, ANSI, GB, JIS, BSW, GOST
  • Grade：12.9

Base Info

  • Model NO.：Torx Point Flange Head Bolt
  • Application：Machinery, Chemical Industry, Environmental, Building
  • Finish：Black
  • Product：Torx Head Bolt
  • Slot：Torx
  • Thread：Half,Full
  • Length：10~200mm
  • Transport Package：1kg,Box
  • Specification：M5~M20
  • Trademark：EASOON
  • Origin：Tianjin, China
  • HS Code：7318150000
  • Production Capacity：5000000 PCS,Day

Description

MaterialStainless steel: A2-70, A4-70, 304,316, etcCarbon steel: SAE1008, Q195, ST37, etcBrass, Copper, AluminumSurfaceHDG, Zinc plated, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating and Electrophoresis.Grade4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9.StandardGB/T2673, ISO 14581-2013, ISO 14582-2013, ASME/ANSI B18.3-III.2-2012, Q 258-1999

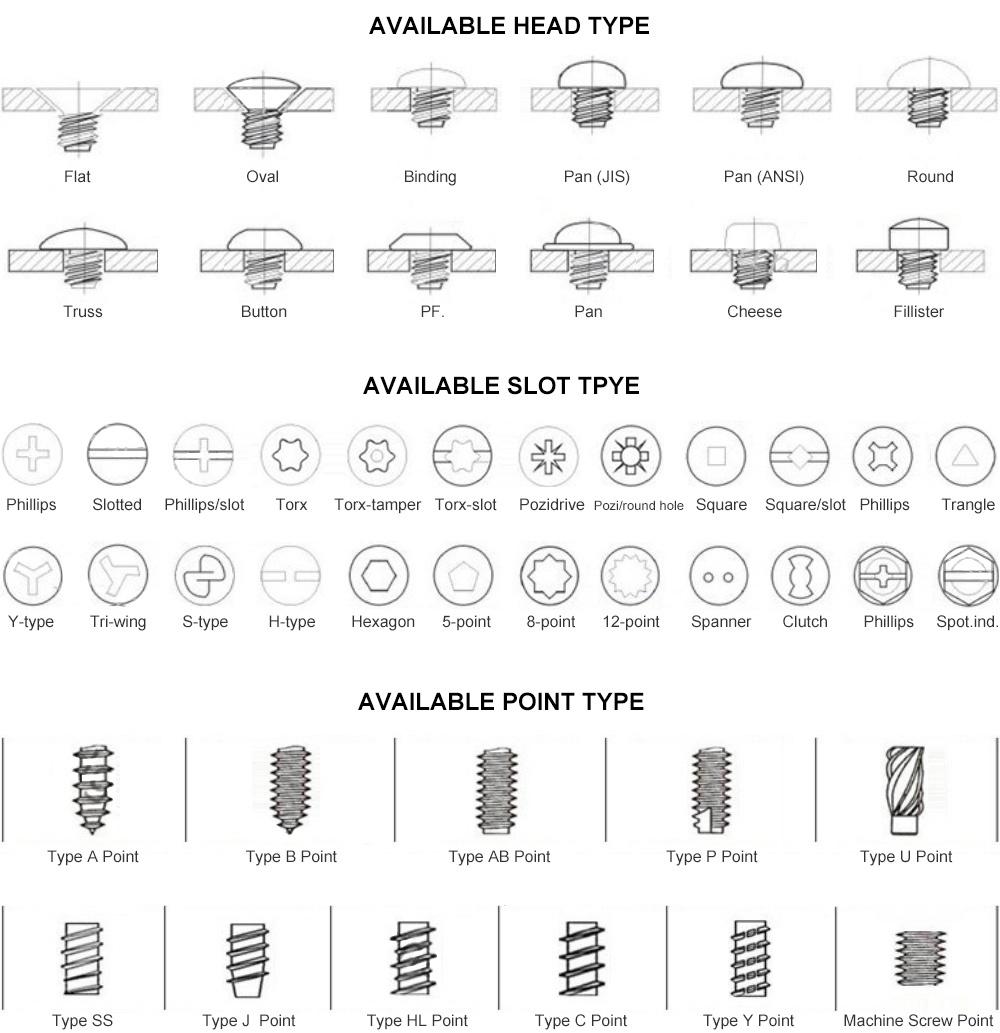

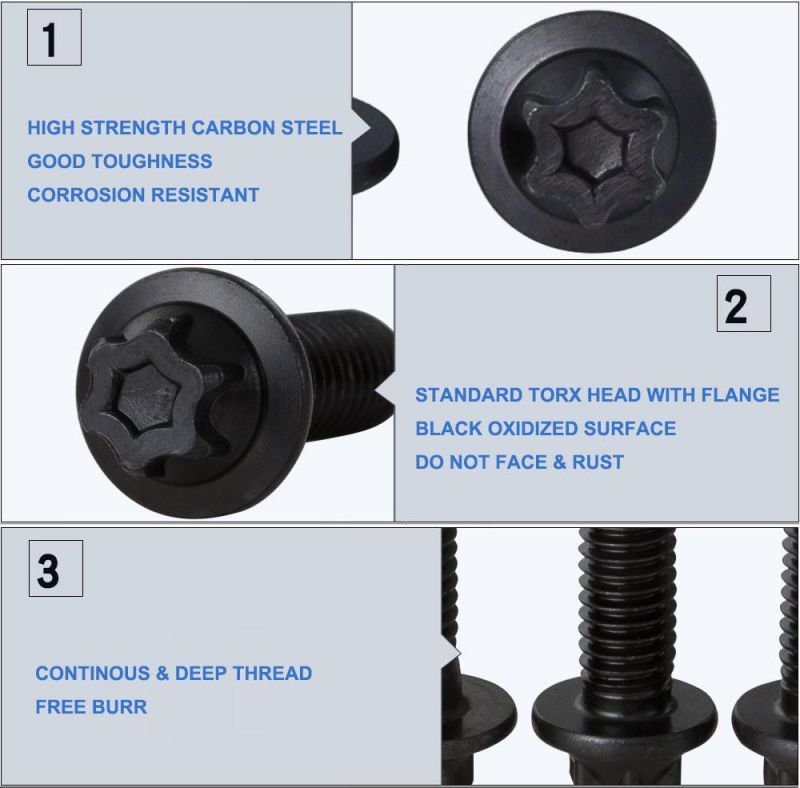

PRODUCT ADVANTAGES
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt

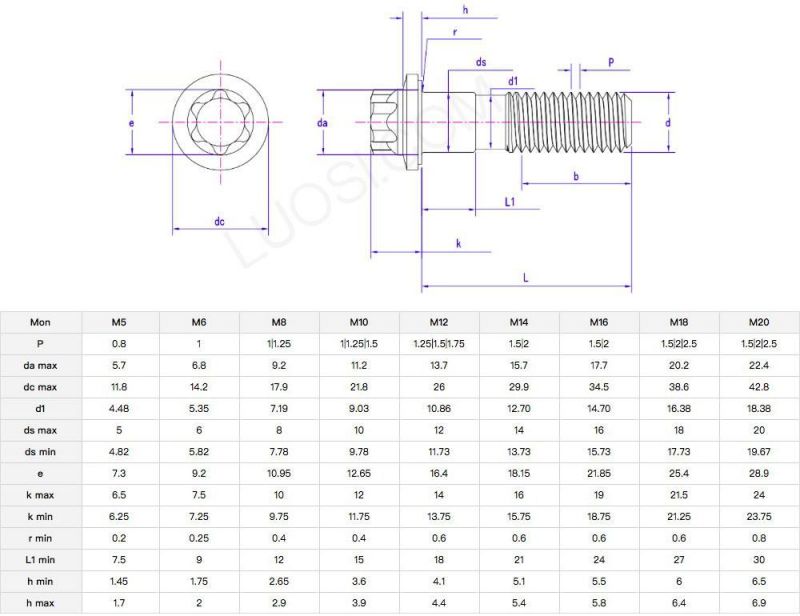

PRODUCT SPECIFICATIONS
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt

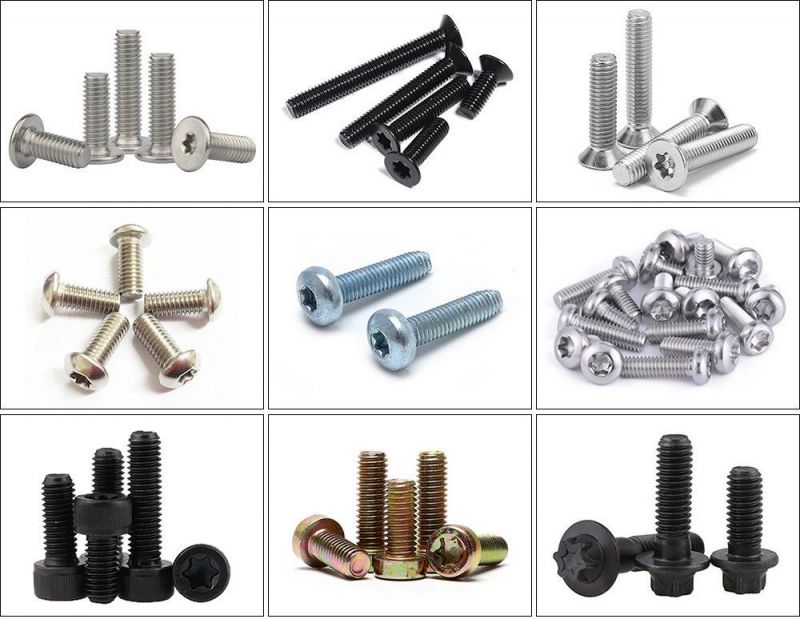

PRODUCT SHOW
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt

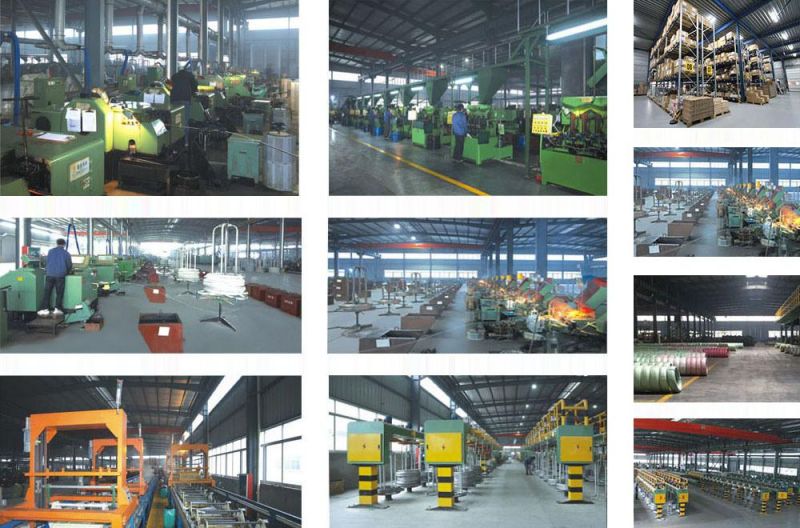

PRODUCTION WORKSHOP
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt

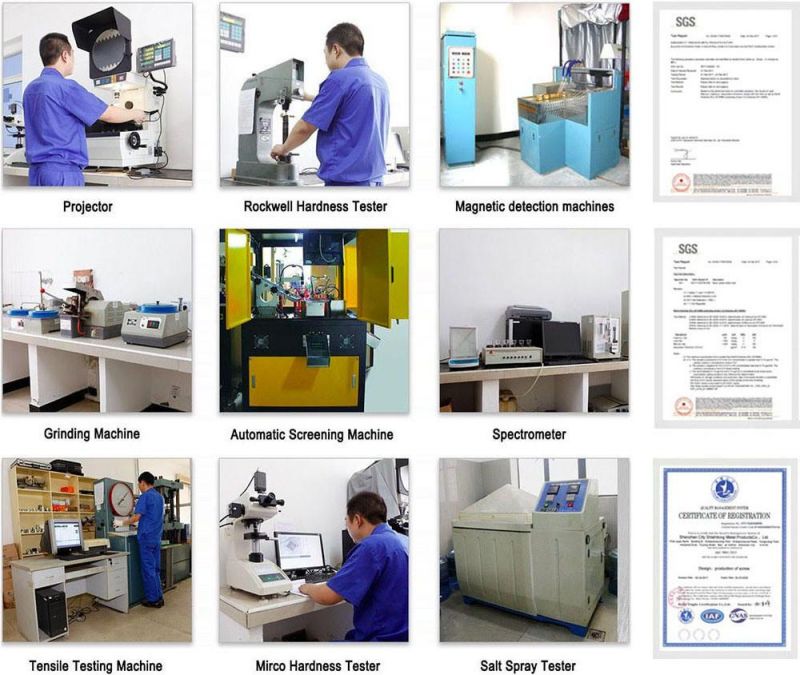

TEST & CERTIFICATES
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt
TRADING INFORMATIONPayment TermsT/T,
Western Union
L/C.Delivery TimeWithin 7-12 days after 30% deposit.Trade TermsFOB, CIF, EXW
PACKAGE & LOADING
M5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt
FAQM5 M6 Carbon Steel Torx Head Flange Bolt (DIN34800) Torx Recess Bolt High Strength Carbon Steel 12 Torx Point Flange Head Bolt
