• Model NO.：20-710mm
• Connection Type：Butt Fusion
• Application：Gas,Water,Oil etc.
• Executive Standard：En 12201-3:2003,En 1555-3:2002+A1:2005
• Material Suppier：Sinopec, Basell, Sabic, Borouge etc
• Norminal Pressure：Pn4,Pn6,Pn8,Pn10,Pn12.5 Pn16,Pn20
• SDR：SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9
• Production Equipment：125sets
• Life Span：50 Years
• Warranty Period：1 Year
• Transport Package：Carton or Plastic Bag
• Specification：20-710mm
• Trademark：CR
• Origin：China (Mainland)
• HS Code：3917400000
• Production Capacity：100, 0000 Piece,Per Year

Basic Info.

Model NO. 20-710mm Connection Type Butt Fusion Application Gas,Water,Oil etc. Executive Standard En 12201-3:2003,En 1555-3:2002+A1:2005 Material Suppier Sinopec, Basell, Sabic, Borouge etc Norminal Pressure Pn4,Pn6,Pn8,Pn10,Pn12.5 Pn16,Pn20 SDR SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9 Production Equipment 125sets Life Span 50 Years Warranty Period 1 Year Transport Package Carton or Plastic Bag Specification 20-710mm Trademark CR Origin China (Mainland) HS Code 3917400000 Production Capacity 100, 0000 Piece/Per Year

Product Description

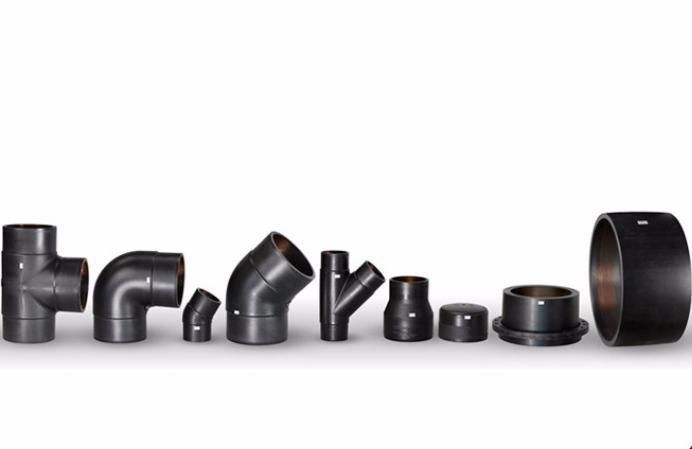

high quality water pipe connector HDPE PIPE fitting
1.Raw material:PE100 or PE80
2.Color:black,yellow or as required
3.Size:please see the following table
4:Connecting way:butt fusion welding
5.Advantage:ODM.OEM
6.Pressure:PN4(SDR33),PN6(SDR21),PN8(SDR17),
   PN10(SDR13.6),PN12.5(SDR13.6)PN16(SDR11),PN20(SDR9)
7.Product feature:light weight,high strength, low resistance,
   corrosion resistance,easy installation, long lifespan,low cos


Certification: We can supply ISO9001-2008, BV ,SGS, CE etc certification.

CHUANGRONG DN20-DN1200 Water or Gas Plastic  pipe fitting  Properties :
 1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
 2.Longitudinal Reversion, % (110(C)): <=3
 3.Oxidation Induction Time, min (200(C)): >=20
 4.Extension Rate at Break. %: >=350
 5.Hydraulic Pressure Test:
 1)20(C), Hoop Stress is 12.4Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure

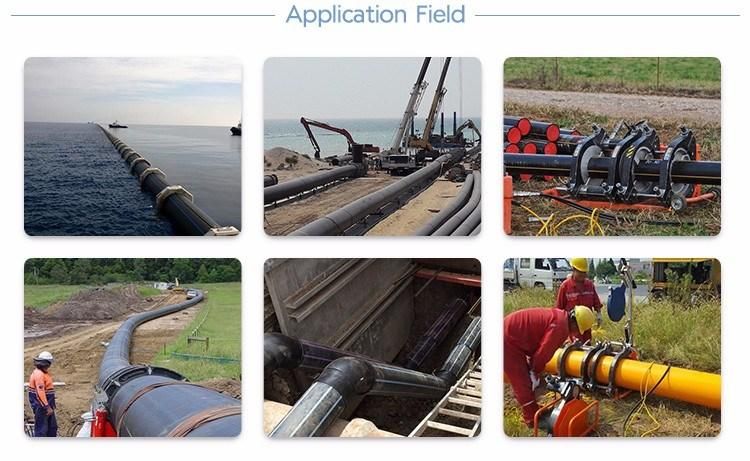

Applications:
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

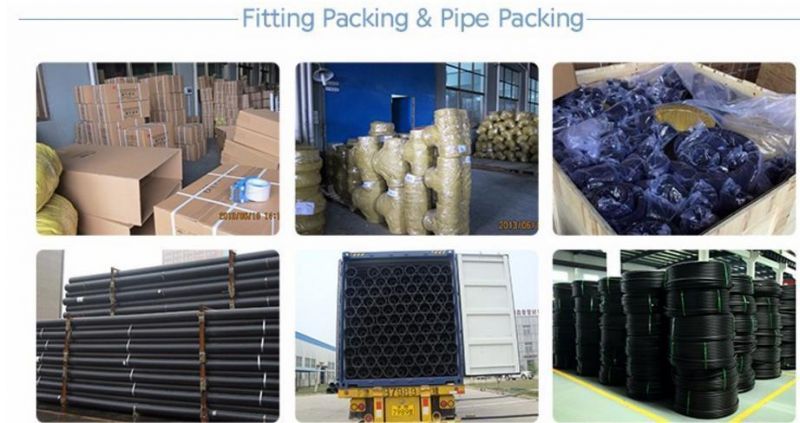

Packing:by wooden case, by carton& plastic bag

Contact Us
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.

Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
