• Model NO.：60G
• Size：1,4′′ to 1′′
• Body Material：Stainless Steel
• OEM：Available
• MOQ：1 Piece
• Transport Package：Plastic Bag Inside, Carton Box Outside
• Specification：1,4′′ to 1′′
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：1000,Month

 T-Tube O.D.in. Ordering NumberDimensions, in. (mm)CDGLL1EThickness1/460UT-HPF4-0.50(12.7)0.09(2.3)0.63(15.9)2.00(50.8)1.25(31.8)0.88(22.4)0.75(19.1)3/860UT-HPF6-0.53(13.5)0.13(3.3)0.81(20.6)2.00(50.8)1.56(39.6)1.06(26.9)1.00(25.4)9/1660UT-HPF9-0.81(20.6)0.19(4.8)1.19(30.2)2.62(66.5)2.12(53.8)1.38(35.0)1.50(38.1)160UT-HPF16-0.72(18.3)0.44(11.1)1.38(34.9)4.12(104.6)3.00(76.2)2.06(52.3)1.75(44.5)



Ordering Information

* To order Hikelok 60 series high pressure fittings, add the material designator (316 or A825) to the ordering number



Certificates

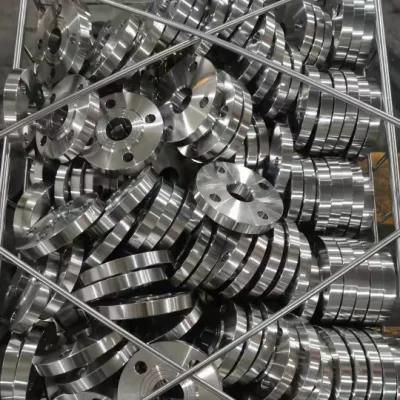

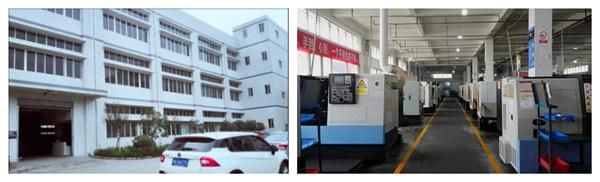

Factory


Company Information

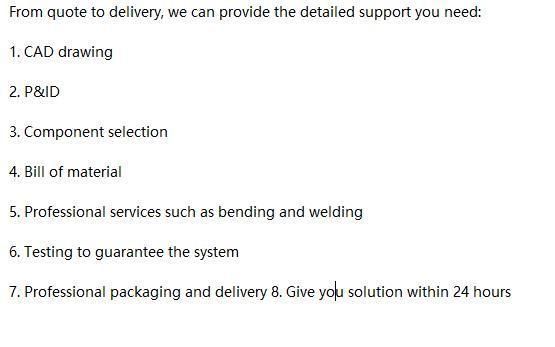

Our Services
