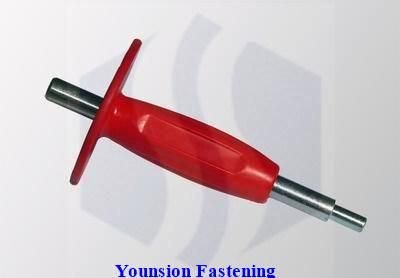

Setting Tool with Handbar for Drop-in Anchor
Younsion Fastening Industrial Co., Ltd.- Material：Carbon Steel
- Type：Round Head
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN, ANSI, GB, JIS, BSW
- Grade：4.8
Base Info
- Model NO.：ST01
- Application：Machinery, Chemical Industry, Environmental, Building
- Finish：Polishing
- Transport Package：Inner Boxes, Cartons, Then Pallets
- Specification：M6-M20, 1,4-3,4
- Trademark：YS
- Origin：China
- HS Code：7318190000
- Production Capacity：1296tons,Years
Description

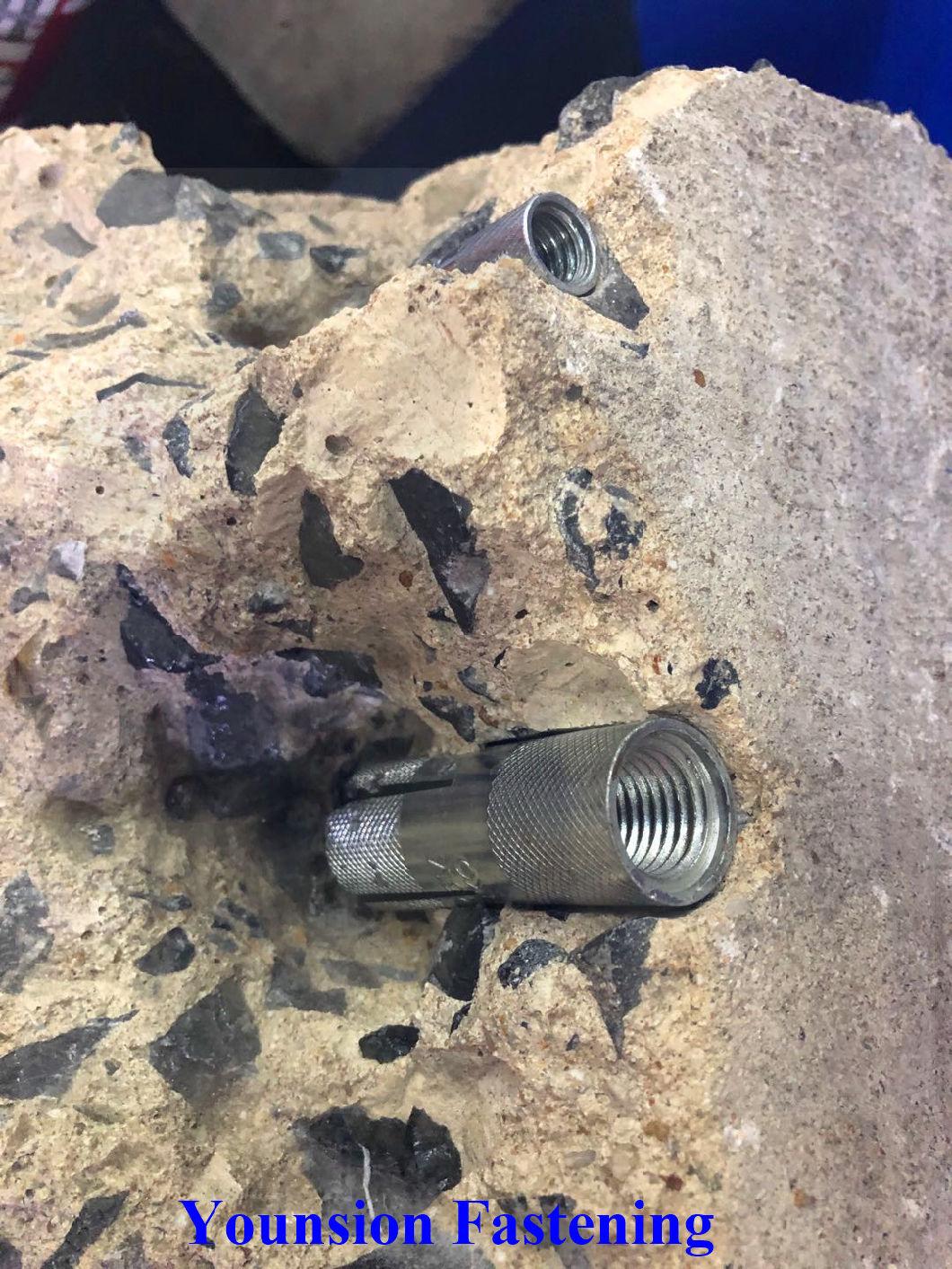

1.Used for the setting of drop-in expansion anchors in concrete holes,often used wtith nuts to fasten stop sign to concrete,or for rod hanging applications in post-tension slabs, hollow core panels and precast planks.

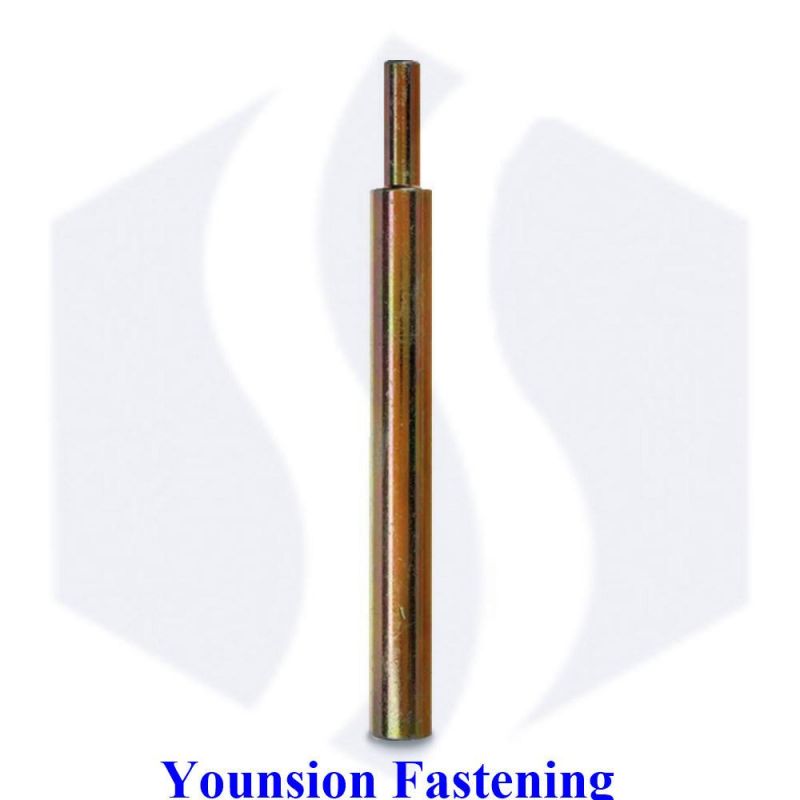

2.Drop-In Anchor Setting Tool is designed for properly and consistently installing internally threaded anchors.
3.Using the setting tool, drop-ins are installed by driving the expander plug toward the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
4.By using a fixed-depth tool, over drilling is prevented, which helps save time and prolong drill bit life.
Description:
| Thread Size | Anchor Dia. | Thread Depth | Anchor Length | Approx.count Per Box/Ctn |
| 1/4-20 | 3/8" | 1/2" | 1" | 100/2000 |
| 3/8-16 | 1/2" | 5/8" | 1-9/16" | 50/1000 |
| 1/2-13 | 5/8" | 3/4" | 2" | 50/500 |
| 5/8-11 | 7/8" | 7/8" | 2-1/2" | 25/200 |
| 3/4-10 | 1" | 1-1/4" | 3-1/8" | 25/150 |
| M6 (W1/4) | 8 | 10 | 25 | 100/2000 |
| M8 (W5/16) | 10 | 14 | 30 | 100/2000 |
| M10 (W3/8) | 12 | 15 | 40 | 50/1000 |
| M12 (W1/2) | 16 | 20 | 50 | 50/500 |
| M16 (W5/8) | 20 | 25 | 65 | 25/200 |
| M20 (W3/4) | 25 | 35 | 80 | 25/150 |
ISO9001 Quality Management System
Material:Carbon steel /Stainless Steel
Size:M6-M20 (1/4"-3/4" )
Surface:White/White Blue ZP/HDG/DAC/Yellow ZP
